Meta Description: The Nottingham HN-EX110G explosion-proof hazardous material cabinet offers secure, high-volume storage for reactive and flammable chemicals. With a 110-gallon capacity, robust construction, and pressure relief safety features, it supports compliance with chemical safety standards.
Introduction: Managing Volume and Risk in Industrial Settings
Industrial laboratories, manufacturing facilities, and warehouses that handle significant quantities of reactive and flammable chemicals face a constant balancing act between operational efficiency and safety compliance. Storing these materials in ordinary containers or open areas is not an option—it invites risk. The Nottingham Hazardous Material Cabinet, Model HN-EX110G, addresses this need for secure, high-capacity storage. Designed with a focus on mitigating explosion risks through its construction and safety systems, this large-capacity, double-door cabinet provides a dedicated, organized, and secure repository for a wide range of hazardous chemicals, helping facilities maintain a safer environment while adhering to fundamental safety storage principles.
Product Definition & Overview: The High-Capacity Safety Solution

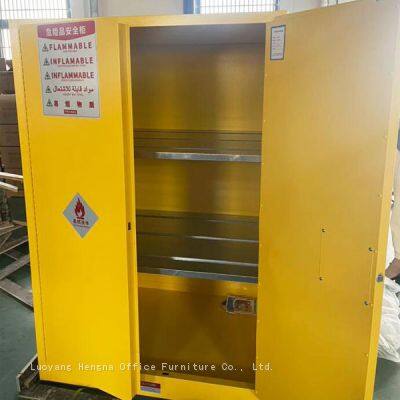

The HN-EX110G is a 110-gallon hazardous material safety storage cabinet, often referred to as a chemical storage cabinet or gallon cabinet. It serves as a critical piece of safety infrastructure for sites requiring bulk storage of materials such as acids, bases, oxidizing agents, and flammable solvents. Its primary role is to segregate these hazards from general work areas, contain leaks, and provide passive fire and explosion protection. The term “explosion-proof design” refers to its integrated features—like reinforced construction and pressure relief mechanisms—that work together to prevent the cabinet from becoming the source of a containment failure during an internal incident, thereby protecting the surrounding area.
Core Material & Construction: Engineered for Stability and Durability
The cabinet’s large size demands an exceptionally robust build to ensure long-term stability and performance.
Primary Material: The foundation is high-gauge cold-rolled steel (typically at the higher end of the 1.2-2.0mm thickness range for this capacity), providing the necessary strength to support heavy loads and resist deformation.

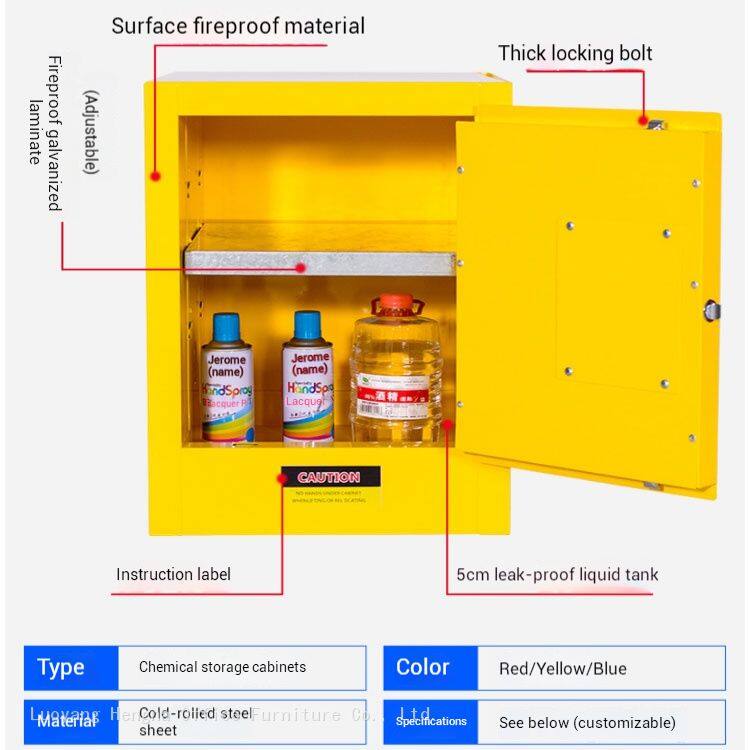

Protective Finishes: The exterior benefits from a high-temperature powder-coated finish, which offers resistance against corrosion from chemical fumes and incidental contact. Interior shelves are galvanized steel and are adjustable on multiple levels, allowing for flexible organization of chemical containers by size and compatibility.
Fire & Blast Mitigation Design: The cabinet employs a double-walled construction with a 38mm air gap or fire-resistant material fill. This design not only provides thermal insulation (with a fire resistance of ≥90 minutes) but also adds structural integrity. The air gap can act as a buffer, absorbing some energy in a deflagration event.
Spill Containment System: A critical feature for large-volume storage, the cabinet includes a 50mm high leak-proof safety sump with a capacity exceeding 25% of the total 110-gallon volume. This ensures that even a major container failure can be fully contained within the cabinet.

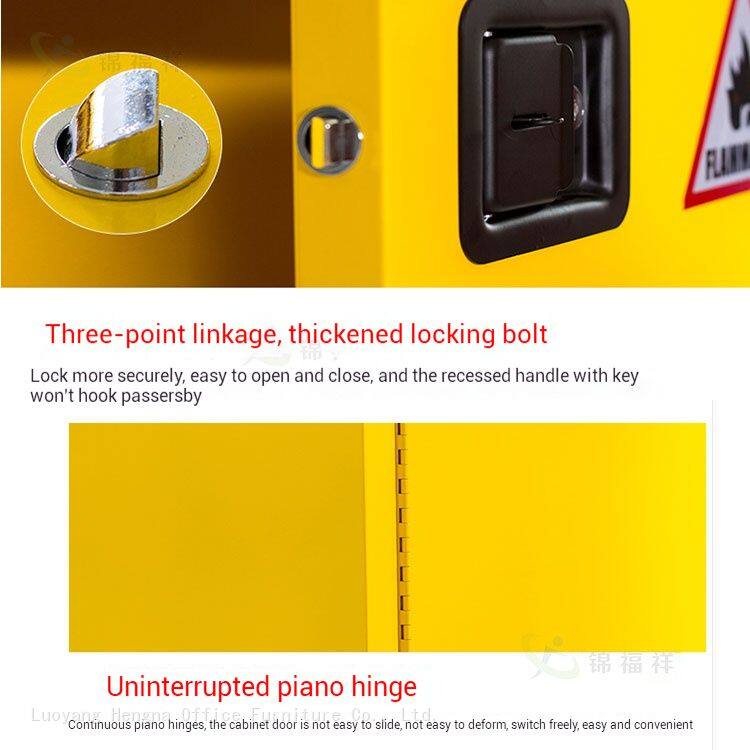

Heavy-Duty Hardware: To support the large double doors, reinforced, corrosion-resistant hinges are used. The locking system is robust, often featuring a three-point latching mechanism that seals the door evenly along its height, ensuring a tight closure essential for vapor containment.
Key Safety Features: A Multi-Layered Defense Strategy
The “explosion-proof design” of the HN-EX110G is realized through several key safety features:
Containment & Insulation: The double-wall structure is the first layer, delaying heat transfer and containing fragments.
Leak Prevention: The large-capacity safety sump is a non-negotiable requirement for bulk chemical storage, preventing environmental contamination and slip hazards.
Pressure Relief (The Heart of Explosion Mitigation): This is paramount. The cabinet is equipped with engineered pressure relief panels or vents. In the event of rapid pressure buildup inside the cabinet (e.g., from a chemical reaction or fire), these panels are designed to fail in a predictable, controlled manner. They open to safely vent pressure and any combustion gases away from personnel, preventing the catastrophic rupture of the entire cabinet. This controlled venting is a key aspect of its protective design.

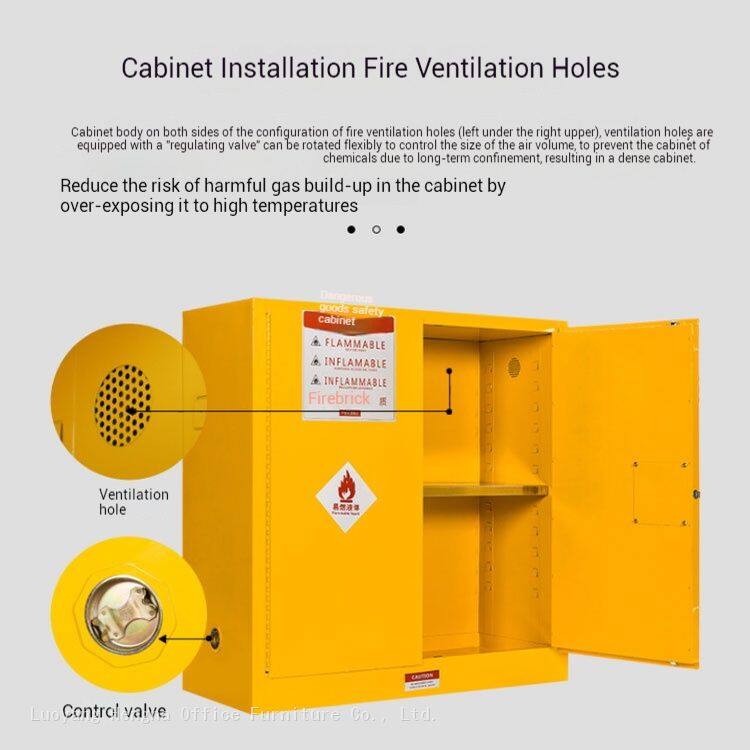

Ventilation: Standard ventilation openings with bungs are provided. For storage of volatile materials, these can be fitted with flame arrestors and connected to an exhaust system to continuously dilute and remove hazardous vapors, maintaining a safer internal concentration.
-

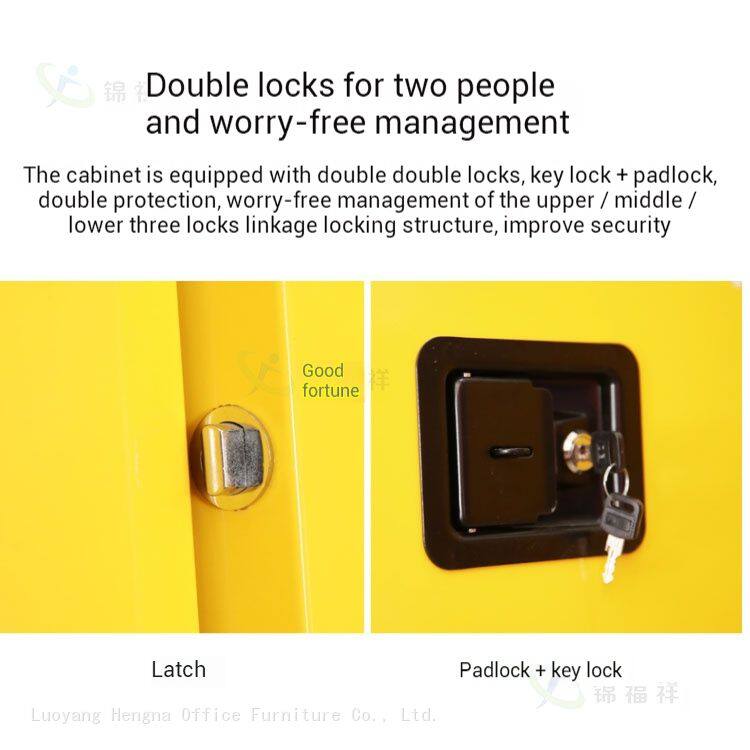

Secure Access & Organization: The cabinet features a high-security lock. The option for a dual-lock system (key and padlock) allows for strict access control, which is crucial for regulated or highly dangerous substances. Adjustable shelves facilitate proper segregation of chemicals to prevent incompatible materials from interacting.
Product Classification & Specifications
The HN-EX110G is typically classified under the yellow category for reactive and flammable chemicals, including many paints and oxidizers.
| Color | Storage Type | Typical Industrial Chemicals | Color Meaning |
|---|---|---|---|
| Yellow | Flammable/Reactive Chemicals, Paints | Inorganic acids & bases, oxidizers, paints, paint thinners, certain adhesives | Hazard: Flammable/Reactive/Oxidizing |
The HN-EX110G is commonly a YELLOW cabinet, suited for a broad range of hazardous chemicals excluding highly concentrated corrosives.
Its physical specifications place it in the large-capacity range:
| Capacity (Gallons) | External Dimensions (H×W×D mm) approx. | Door Style |
|---|---|---|
| 110 | 1650 × 1500 × 860 | Double Door |
Ideal Applications & Standards Alignment
The Nottingham HN-EX110G is designed for environments requiring substantial chemical inventories:
Industrial Manufacturing and Processing Plants
Large University or Research & Development Laboratories
Pharmaceutical and Chemical Warehousing
Paint and Coating Manufacturing or Storage Facilities
The cabinet is constructed following widely recognized safety principles for chemical storage. It is intended to help users meet the performance-based requirements of workplace safety standards concerning the segregation, containment, and management of hazardous materials.
The Foundation for Bulk Chemical Safety
For operations that deal with large volumes of reactive and flammable chemicals, the Nottingham HN-EX110G Explosion-Proof Hazardous Material Cabinet provides a vital layer of protection. Its high-capacity design addresses practical storage needs, while its robust construction and engineered safety features—particularly the pressure relief system—work proactively to manage the risks of fire and explosion. By centralizing and securing these hazards, the HN-EX110G supports a culture of safety, helps protect valuable infrastructure, and serves as a cornerstone for responsible chemical management in any industrial setting.
