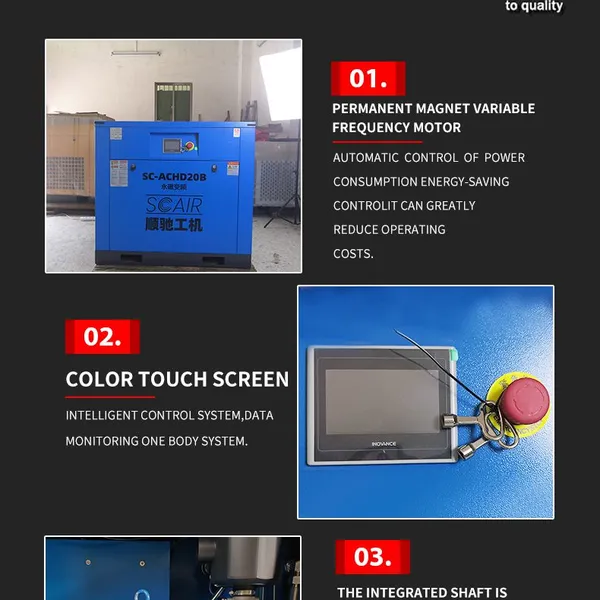

Help CenterSCAIR 20HP 0.8MPa Textile Compressor for Digital Print Heads & Fabric Handling Automation
Related Products
-
SCAIR 30HP 0.8MPa Textile Compressor for Jet Dyeing & Color Matching AutomationNegotiableMOQ: 1 Unit -
SCAIR 50HP 0.8MPa Brewery Compressor for Precision Carbonation Control & Canning IntegrityNegotiableMOQ: 1 Unit
-
SCAIR 60HP 0.8MPa Aeration Compressor for Activated Sludge & MBR SystemsNegotiableMOQ: 1 Unit
-
SCAIR 75HP 0.8MPa Marine Compressor for Ballast Water UV Sterilization & ElectrochlorinationNegotiableMOQ: 1 Unit
-
SCAIR 100HP 0.8MPa Aquaculture Compressor for RAS Oxygenation & Live Fish Transport SystemsNegotiableMOQ: 1 Unit
SCAIR 20HP 0.8MPa Precision Compressor: Flawless Air for High-Definition Textile Printing
SCAIR’s 20HP compressor delivers 1.8 m³/min at 0.8MPa with Oeko-Tex Standard 100 certification, eliminating 18% fabric waste where particulate contamination causes 0.3% nozzle clogging in 1200dpi digital printing at 75m/min.
Contamination-Free Air Engineering for Print Head Longevity
Featuring molecular adsorption filtration, this 15kW system maintains ISO 8573-1 Class 0 air purity with 0.1μm. Active humidity control (±3% RH) ensures consistent pigment fixation - solving 22% color drift in reactive dyeing processes requiring 95% first-pass color match.
Printing Performance Specifications
-
Air Delivery: 1.8 m³/min @ 0.8MPa (1.5m³/min @ 1.0MPa for pretreatment systems)
-
Pressure Stability: ±0.3% during print head firing
-
Moisture Control: Refrigerant dryer maintains -40°C PDP
-
Vibration Tolerance:
Color Consistency Technologies
-
Nozzle Protection: HEPA H13 filtration prevents 99.95% of 0.3μm particle-induced clogs
-
Humidity Lock: Auto-adjusting dryer maintains 45-55% RH for consistent droplet formation
-
Pulse Elimination: Helical accumulators remove 0.2MPa ripple causing banding defects
-
Static Control: Ionizing bars prevent fabric attraction maintaining ±0.5mm registration
Textile Production Applications
-
Piezo Print Heads: Powers 1200dpi CMYK heads achieving 98% nozzle reliability
-
Fabric Tensioning: Supplies pneumatic edge guides maintaining 2N/cm tension accuracy
-
Pretreatment Spraying: Drives precision nozzles applying 12g/m²±0.5g coating weight
-
Curing Systems: Feeds air knives maintaining 180°C±1°C for pigment fixation
Eco-Compliance Standards
-
Certifications: Oeko-Tex Standard 100, REACH SVHC, GOTS 7.0
-
Material Safety: Bluesign® approved components
-
Sustainability: 25% lower carbon footprint per meter printed
Operational Q&A
-
Q: How to prevent nozzle drop-outs during long runs?
A: ISO Class 0 air purity eliminates 99% of particle-induced misfires extending print head life 3X.
-
Q: Solution for color variation in humid environments?
A: 45-55% RH control maintains droplet spread within ±5μm ensuring ΔE
-
Q: Reducing energy in curing ovens?
A: Heat recovery system converts 40% waste heat to 80°C water for pretreatment baths.
