1. Product Overview

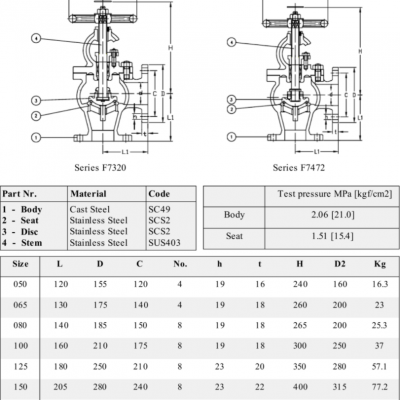

Name: Marine Valve Flange F7472 JIS 10K Cast Steel Angle SDNR Valve
Model: F7472
Standard: Complies with JIS (Japanese Industrial Standard) 10K level
Material: Made of high-quality cast steel material to ensure the strength and corrosion resistance of the valve.
2. Structural Features
Angle body: The valve body is designed in an angle shape, which is convenient for installation and layout in the ship's pipeline system and saves space.
Flange connection: Both ends of the valve use flange connections to ensure the reliability and tightness of the connection and facilitate connection with other parts of the pipeline system.
Cast steel material: Key components such as the valve body and valve cover are made of cast steel material, which has the characteristics of high strength, corrosion resistance, and wear resistance, and is suitable for various harsh marine environments on ships.
3. Functions and Applications
Function: This valve has the functions of cut-off and check, which can control the flow direction of the medium, prevent the backflow of the medium, and ensure the safe and stable operation of the ship's pipeline system.
Application: Widely used in the ship's water supply, drainage, fuel oil, lubricating oil and other systems, especially suitable for pipeline systems that require angle installation.
4. Technical Specifications
Nominal pressure: 10K (The specific pressure value is determined according to the JIS standard)
Nominal diameter: Determined according to specific requirements, generally there are a variety of specifications to choose from.
Operating temperature: Within the normal operating temperature range of the ship.
Driving method: Manual or other specified methods.
5. Additional Information
Certification and certificates: This valve usually comes with certifications and certificates from authoritative institutions such as CCS (China Classification Society) to ensure that its quality and performance meet relevant standards and requirements.
Maintenance: Regularly check the sealing performance and connection status of the valve to ensure it is in good working condition. If necessary, clean, lubricate and replace damaged parts in time.
6. Product Advantages
High strength: The cast steel material makes the valve have high strength and can withstand large pressure and impact force.
Corrosion resistance: The cast steel material and special surface treatment process make the valve have good corrosion resistance and are suitable for various corrosive media.
High stability: It conforms to the JIS 10K standard and has undergone strict inspection and testing to ensure the stability and reliability of the valve.
Convenient installation: The flange connection method makes the installation and disassembly of the valve more convenient and improves work efficiency.
