1. Product Overview
The marine valve F7351 JIS - 5K bronze SDNR valve is a high - performance stop - check valve, specially designed for systems such as ship seawater and oil pipelines. This valve is designed according to the JIS F7351 Japanese standard and made of bronze material, featuring excellent corrosion resistance and wear resistance. The combined bonnet structure makes the valve more sturdy and durable, suitable for various harsh marine environments.
2. Product Features
JIS - 5K Standard: The valve design meets the requirements of the JIS F7351 Japanese standard, ensuring the reliability and durability of the product.
Bronze Material: Made of high - quality bronze material, it has good corrosion resistance, wear resistance and high - temperature resistance, suitable for harsh environments such as seawater and oil pipelines.
Combined Bonnet: The unique combined bonnet structure makes the valve more sturdy and durable, capable of withstanding high pressure and temperature.
Sealing Performance: The valve uses high - quality sealing materials to ensure good sealing performance under various working conditions and prevent medium leakage.
Easy Operation: The valve is flexible and easy to operate, capable of quick opening and closing to meet the needs of the ship pipeline system.

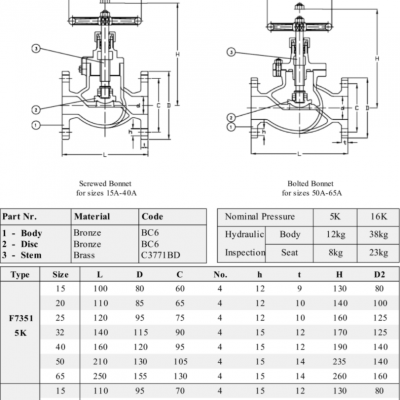

3. Product Parameters
Model: F7351
Nominal Pressure: JIS 5K (equivalent to approximately 0.5MPa)
Applicable Medium: Seawater, Oil
Connection Method: Flange connection (other connection methods can be provided according to customer requirements)
Material: Key components such as the valve body, bonnet and disc are made of bronze material, and other components are selected with suitable materials according to customer requirements.
4. Product Application
The marine valve F7351 JIS - 5K bronze SDNR valve (combined bonnet) is widely used in systems such as ship seawater and oil pipelines to control the flow of the medium and prevent medium backflow. This valve has excellent corrosion resistance and wear resistance, and can operate stably for a long time in harsh marine environments, ensuring the safety and reliability of the ship pipeline system.
5. Precautions
When installing and using the valve, operations should be carried out strictly in accordance with the product manual and relevant standards to ensure the correct installation and use of the valve.
Regularly inspect and maintain the valves, keep the valves clean and lubricated, and extend the service life of the valves.
If any faults or damages are found in the valves, they should be replaced or repaired in time to ensure the normal operation of the ship's pipeline system.
