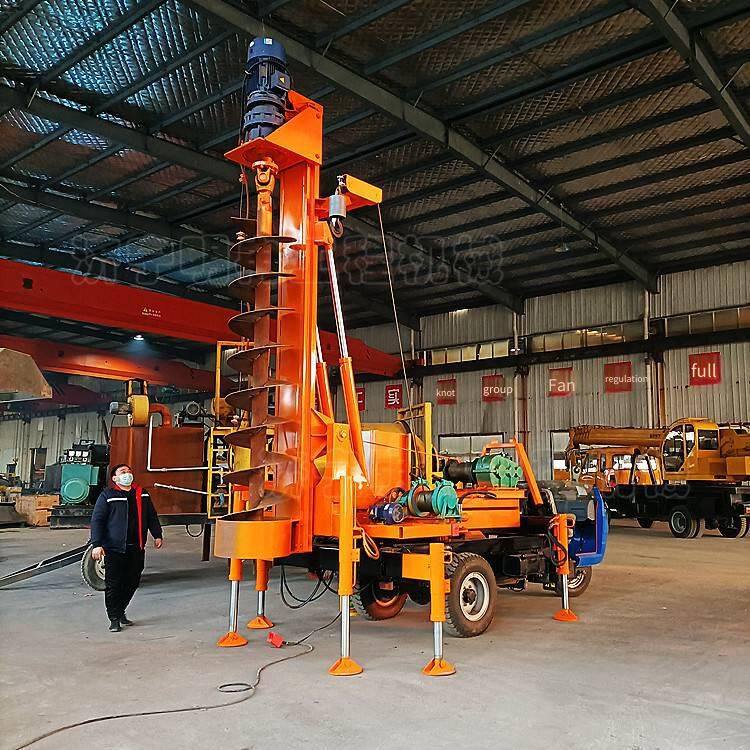

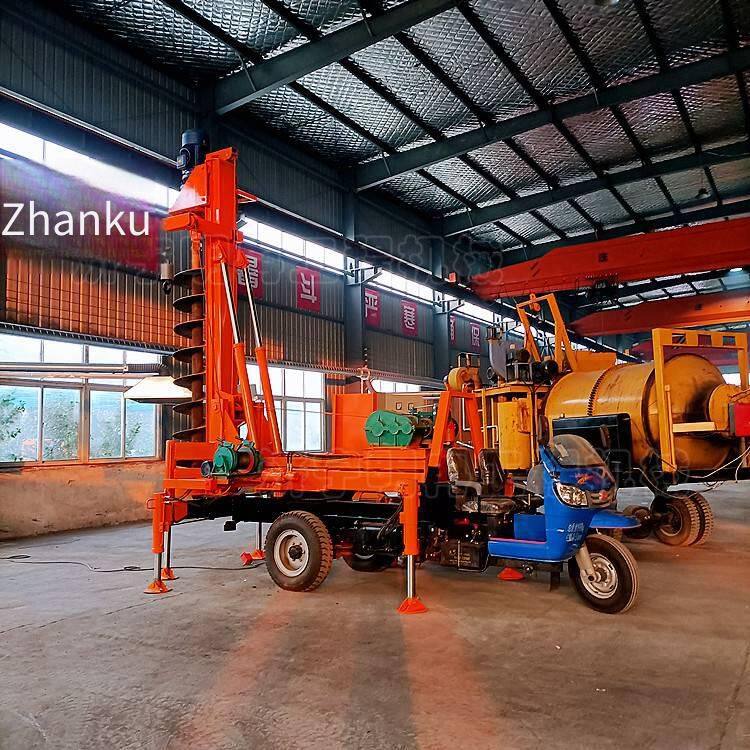

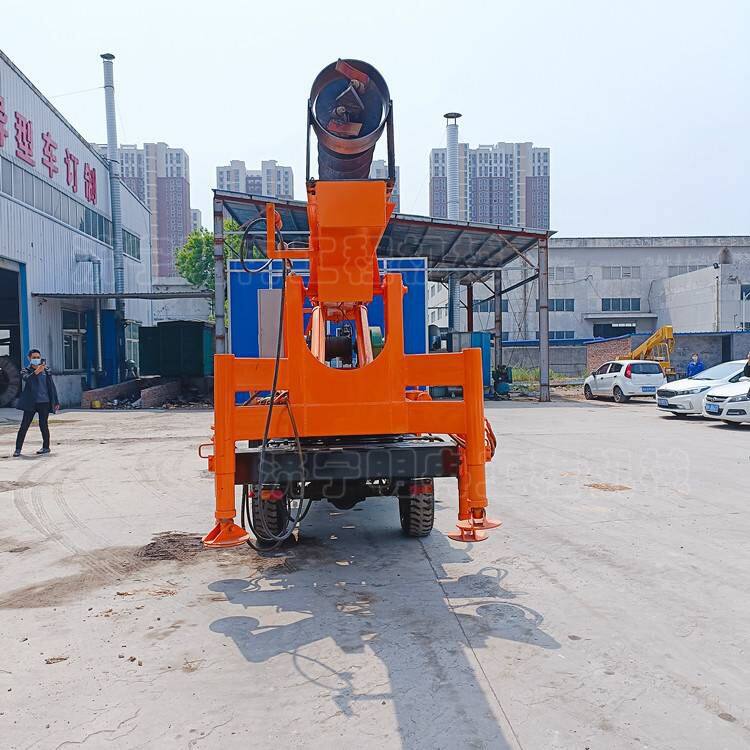

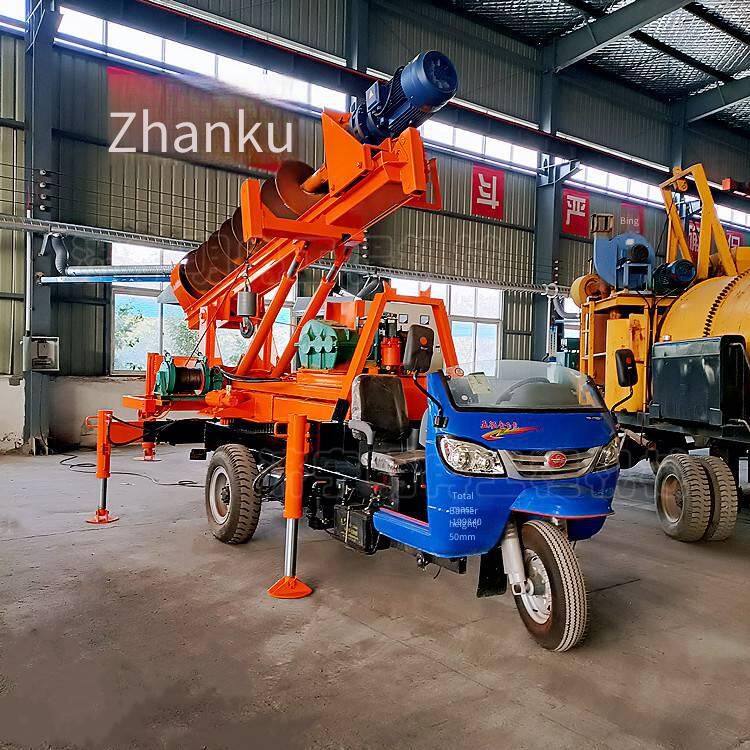

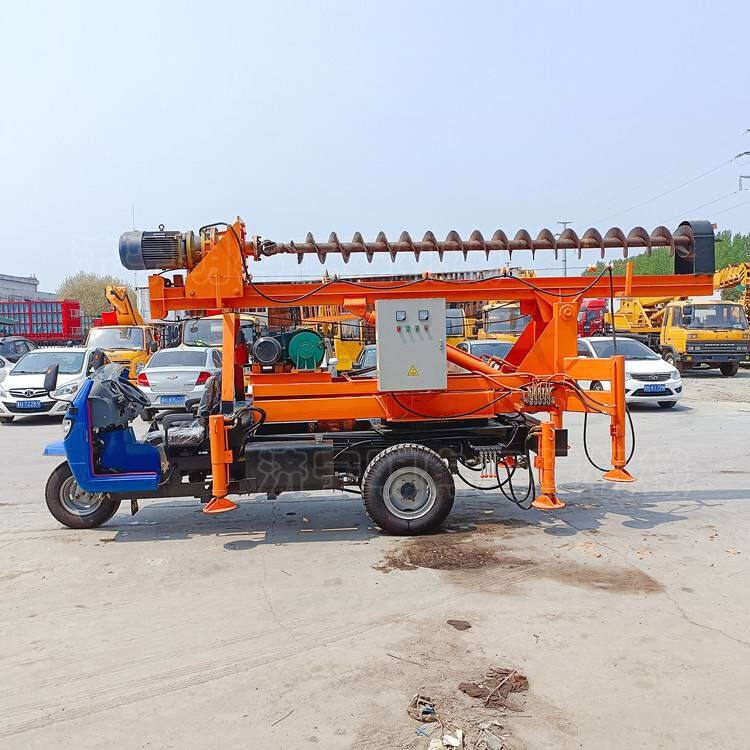

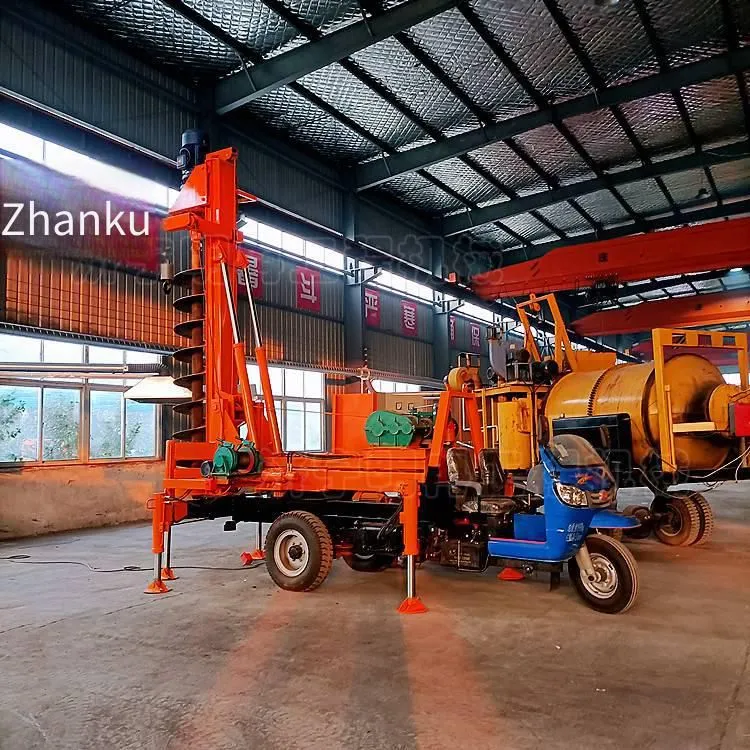

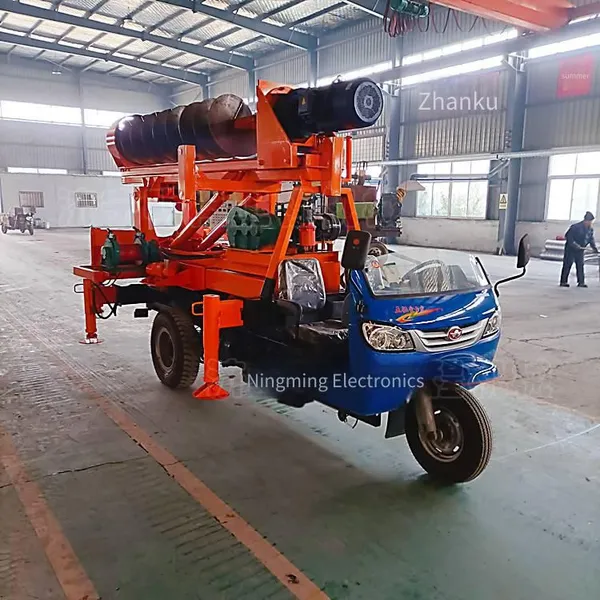

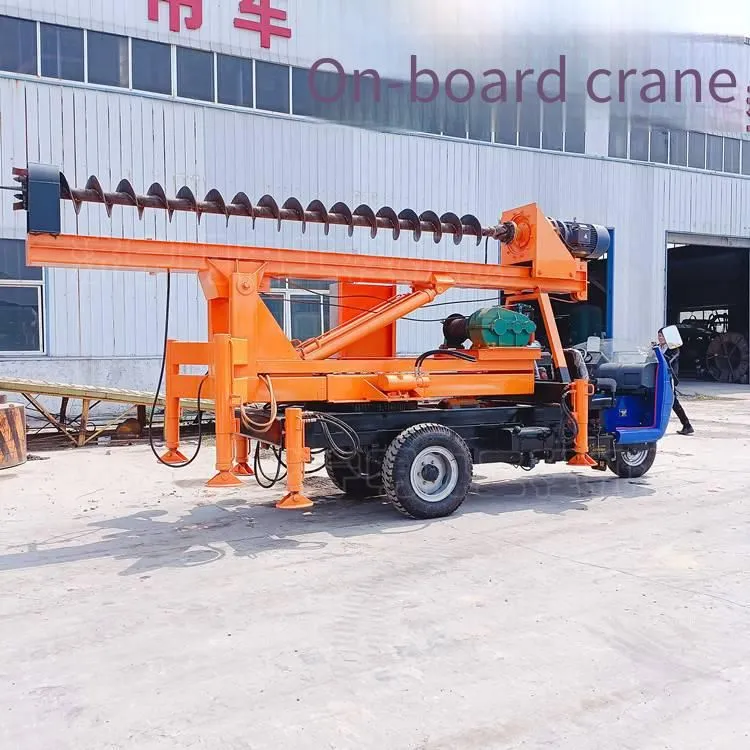

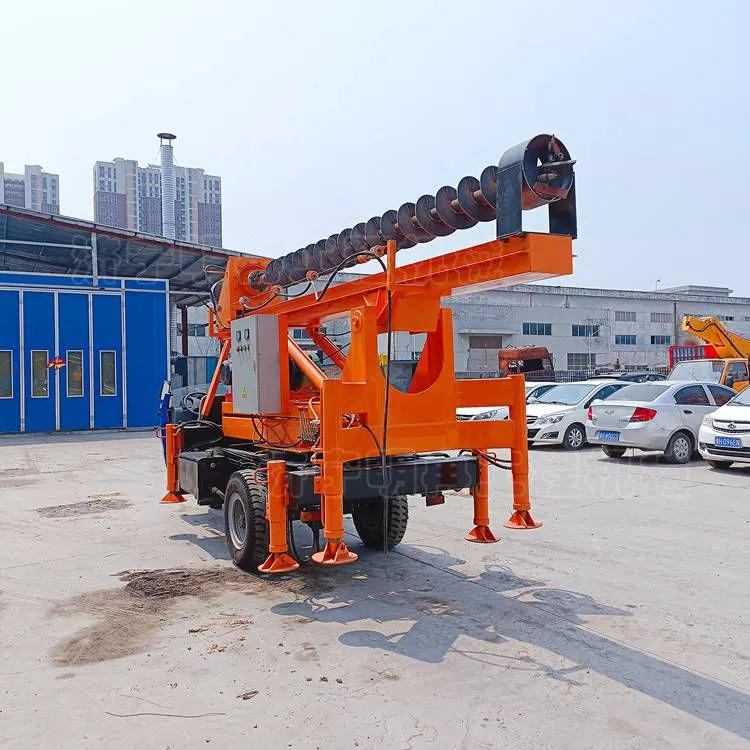

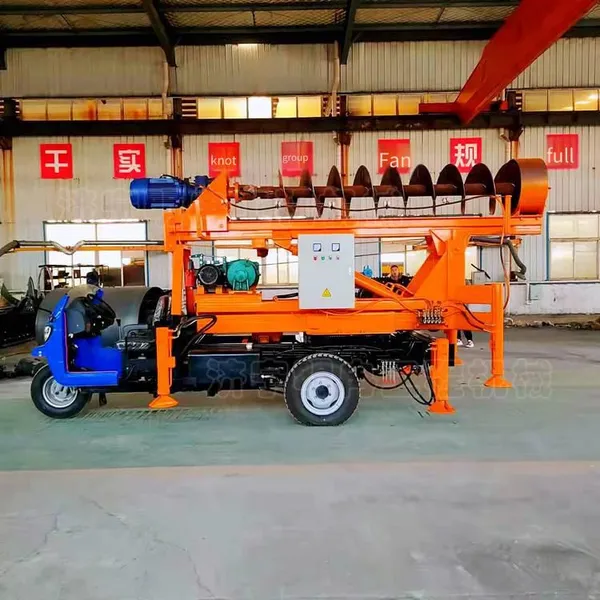

Help CenterAgricultural Tricycle Modified Pile Driver, Small Foundation Drilling Machine for Civilian Houses, 3-meter Screw Rod Drilling
Related Products
-
High-altitude Slope Protection Drill, Crawler Rock Drilling and Hole Guiding Machine, Drilling Machine With a Lifting Height of 15 MetersUS$ 13538.46 - 15323.08MOQ: 1 Unit -
Forklift Foundation Pile Driver, Loader-type Pole Hole Drilling Machine, 3-meter Spiral Drill Rod Pile Driving MachineryUS$ 5538.46 - 6538.46MOQ: 1 Unit
-
Garden Rubber Crawler Truck Crane, Crawler Vehicle With Crane, Dump Self-unloading Truck-mounted CraneUS$ 5461.54 - 6538.46MOQ: 1 Unit
-
Four-wheel Drive Wheeled Excavator Attached to the Vehicle, Excavator Arm Installed on the All-terrain Transporter, 10-ton Integrated Excavator and TransporterUS$ 5461.54 - 6800MOQ: 1 Unit
-
Muddy Ground Transfer Crawler Vehicle, 10-ton All-solid Wheel Crawler Transporter, Hill-climbing King Mountain VehicleUS$ 8923.08 - 10584.62MOQ: 1 Unit
Welcome to call for consultation: 15588722150, Manager Gao
1. Scope of application:
This vehicle can generate electricity by itself and use an external power supply. It is suitable for piling projects such as building house foundations, reinforcing highway foundations, railway power facilities, wind power plants, solar photovoltaic power plants, and soft soil foundation treatment and reinforcement.It is easy to learn. During operation, it can move forward and backward at a fixed position and rotate270°. It has hydraulic walking.
2. Performance characteristics:
1.It is reasonably designed, aesthetically pleasing in appearance, and simple to operate. There are two product options: it can move forward and backward, rotate left and right by270 degrees or 360 degrees. It features fast positioning, fast piling, fast pile pulling, and high efficiency. It can also be customized according to customer requirements.
2.Using a mud pump, the drilled soil is taken out to form a pile hole. Then, a steel reinforcement cage is installed, and concrete is poured.
3.The pile driver consists of a pile hammer, a pile frame, and auxiliary equipment. The pile frame is a steel structure tower, and there is a winch at its rear for lifting the pile and the pile hammer.
III. Product Parameters:
Model | S270Foundation Piling | ||
External Dimensions | 760*200*300cm | ||
Drilling Diameter | 600mm | ||
Upper frame | Telescopic1.2m—1.5m | ||
Lower outrigger | Manual | In and out80cm(Standard configuration) | |
Hydraulic | In and out80cm | ||
Distribution box (Chint) | Handheld | 36vSafe voltage (standard configuration) | |
Wireless remote control type | |||
Do not connect to the distribution box | With forward and reverse switch | ||
Winch lifting(T)/Power (KW) | 2/7.5 | ||
Reducer | 5Number machine (standard configuration. Optional3-6numbers) | ||
Piling depth | 8m | ||
Power head power(kw)/Rotational speed rpm | 15 (Standard configuration. Optional: 18.5/22/30)/40 | ||
Lifting form | Hydraulic lifting | ||
Rotary motor power(kw) | 1.5 | ||
Standard pole pit time | 10-60seconds | ||
Oil pump motor power(kw) | 7.5 | ||
Engine model | Weifang4102Turbocharged | ||
Generator power(Optional) | Generator(kw) | 30 | |
40 | |||
Generator(kw) | 40 | ||
50 | |||
Tire Size | 650-16 | ||
750-16 | |||
Gearbox | 130-140High and low speeds | ||
Direction | Hydraulic power steering | ||
Slewing angle | 270° | ||
Travel speed(km/h) | 40 | ||
Applicable geological layers | Can be used for laterite.Frozen soil.Highly weathered rock, etc. after being equipped with a carbide drill bit | ||
Climbing ability(°) | 50 | ||
Vehicle weight(T) | 4.8 | ||
Note: The product parameters are for reference only. Please consult the customer service for specific parameters.
