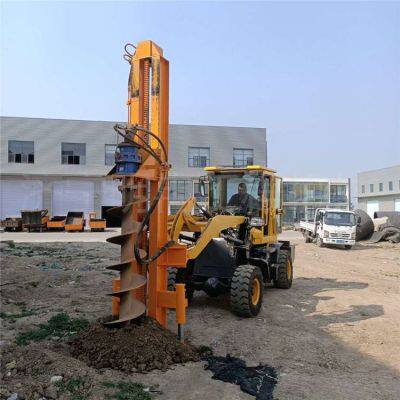

Help CenterForklift Foundation Pile Driver, Loader-type Pole Hole Drilling Machine, 3-meter Spiral Drill Rod Pile Driving Machinery
Related Products
-
Garden Rubber Crawler Truck Crane, Crawler Vehicle With Crane, Dump Self-unloading Truck-mounted CraneUS$ 5461.54 - 6538.46MOQ: 1 Unit -
Four-wheel Drive Wheeled Excavator Attached to the Vehicle, Excavator Arm Installed on the All-terrain Transporter, 10-ton Integrated Excavator and TransporterUS$ 5461.54 - 6800MOQ: 1 Unit
-
Muddy Ground Transfer Crawler Vehicle, 10-ton All-solid Wheel Crawler Transporter, Hill-climbing King Mountain VehicleUS$ 8923.08 - 10584.62MOQ: 1 Unit
-
Gobi Desert Photovoltaic Pile Driver, Solar Energy Project Drilling Machine, Crawler-type Walking Hole Guiding MachineUS$ 9000 - 10200MOQ: 1 Unit
-
Vehicle-mounted Asphalt Heating Equipment, Water Dust Removal Asphalt Mixer, 1.5-cubic-meter Automatic Feeding MixerUS$ 8123.08 - 8584.62MOQ: 1 Unit
Welcome to call for consultation: 15588722150, Manager Gao
One. Product Features:
1. Ultra-high pressure hydraulic pump is connected to the output shaft of the loader, providing power for the wholeOneHydraulicSystemProvidesPower, including hydraulicCylinders, hydraulicMotors, etc.
2. Of the spiral bladeRotationis driven by a hydraulic motor, about100 revolutions per minute,The lifting and lowering of the drill rod is controlled by two main cylinders, and at the front end of the drilling holeMotorThere aretwo adjustmentcylinders usedforholedrillingalignmentto ensurethe verticality of the drill rod
3. Loaderconversionto anelectricpoleexcavatorPitMachineCanRealize SinglePerson Operation,The VehicleArrives and the Hole is Formed,Drill and GoImmediately. Greatly Improve Work Efficiency.
I. Product Application Scope
The product is suitable for drilling operations in the projects of digging pits for utility poles, street lamp poles, photovoltaic brackets, and piling for civil houses. One vehicle can be used for multiple purposes. It uses a loader as the carrier and adopts front-mounted drilling without destroying the transportation function of the loader.
2. Product Parameters
Model |
S880Loader-type Wire Pile Driver |
||||
Equipped Power |
Shanyu |
20 |
|||
Laigong (Weichai, Huamin) |
30 |
Manual Transmission |
4100Engine,6Forward gears (3Fast3Slow)2Reverse gears (1Fast1Slow) |
||
Automatic transmission |
4102Engine,2Forward gears (Fast and slow)2Reverse gears (Fast and slow) |
||||
Strong wind cooling |
None |
Standard configuration |
|||
Yes |
|||||
Drilling depth |
4m(One sixth of the utility pole) |
||||
Drilling diameter(cm) |
8mUtility pole |
30cm |
|||
12mUtility pole |
40cm |
||||
15mUtility pole |
45cm |
||||
18mPole |
50cm |
||||
Auger drive form |
Fully hydraulic electric |
||||
Engine |
490-4105Diesel engine |
||||
Drilling speed |
1200mm/min |
||||
Hydraulic system flow |
42-63ml/r |
||||
Lifting form |
Hydraulic lifting |
||||
Time for standard pole pit |
10 - 60seconds |
||||
Overall dimensions |
6.5*1.9*2.3meters |
||||
Applicable geological layers |
Can be used for laterite.Frozen soil.Highly weathered rocks, etc. after being equipped with alloy steel drill bits |
||||
Cable trailer |
3T,5T,6T,8TOptional |
||||
Note: The product parameters are for reference only. Please consult the customer service for specific parameters.
