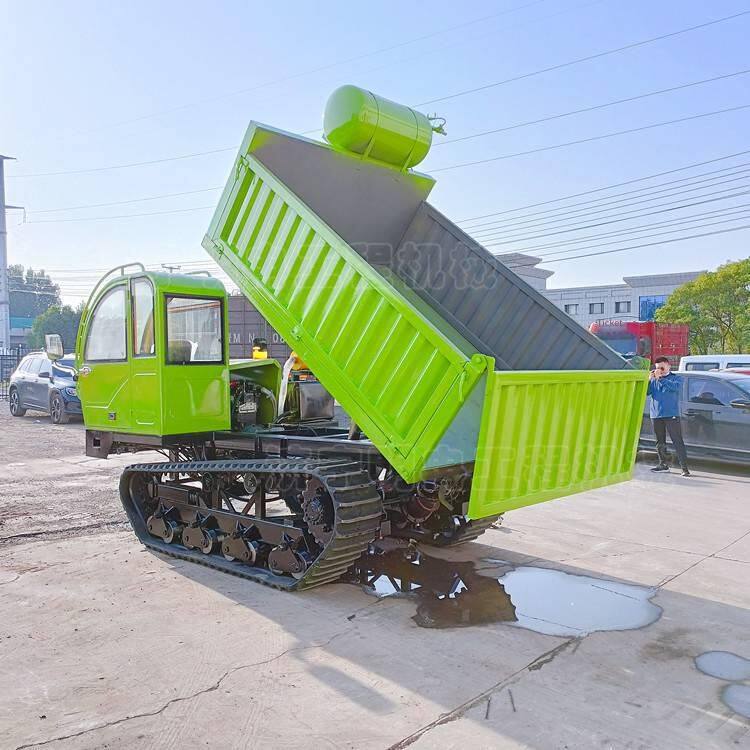

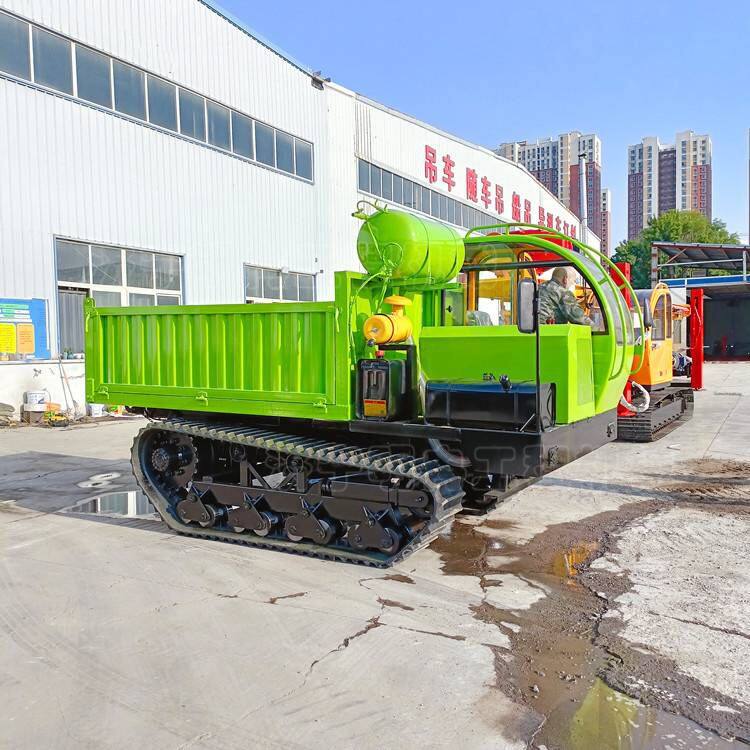

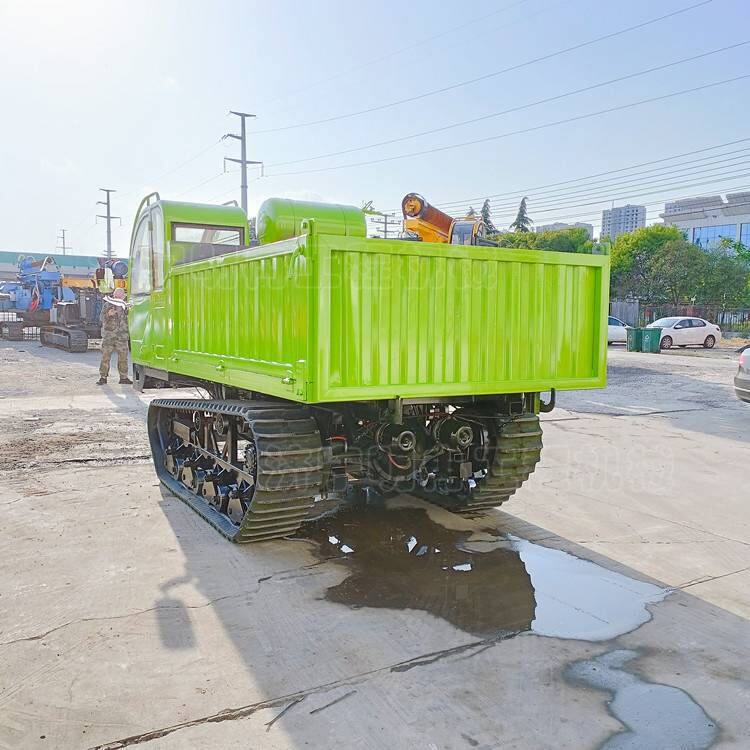

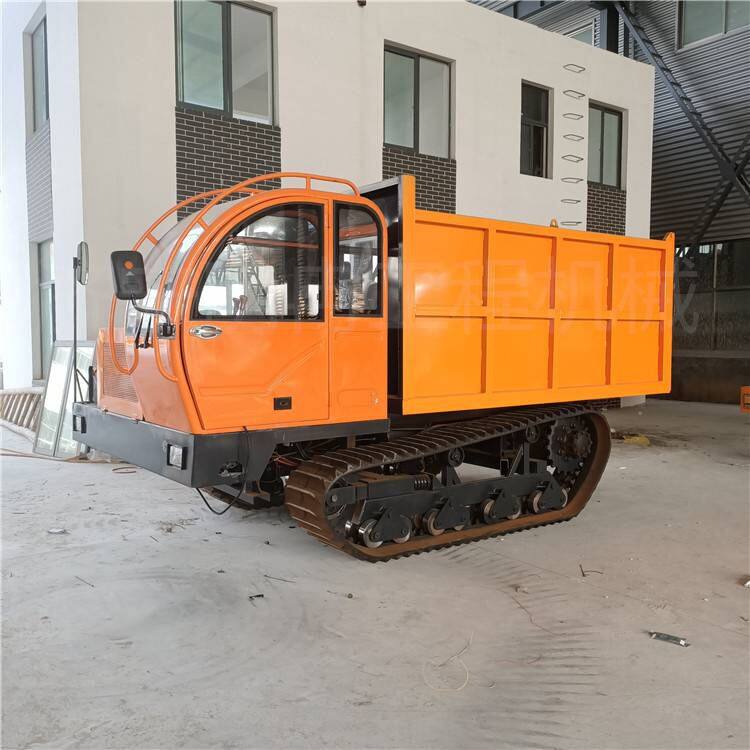

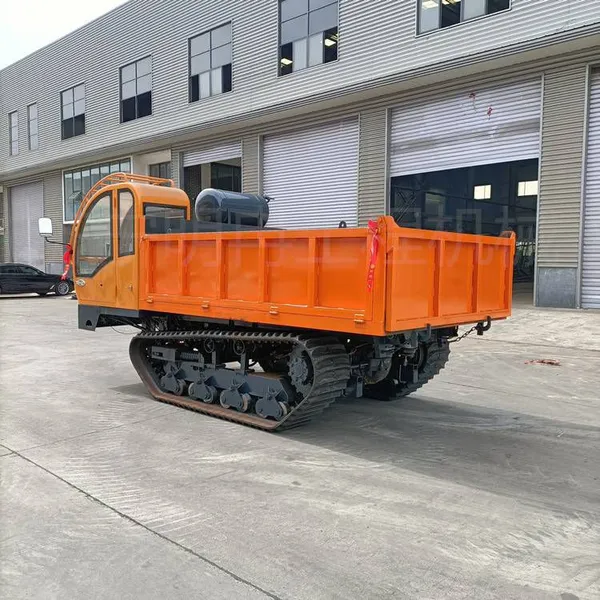

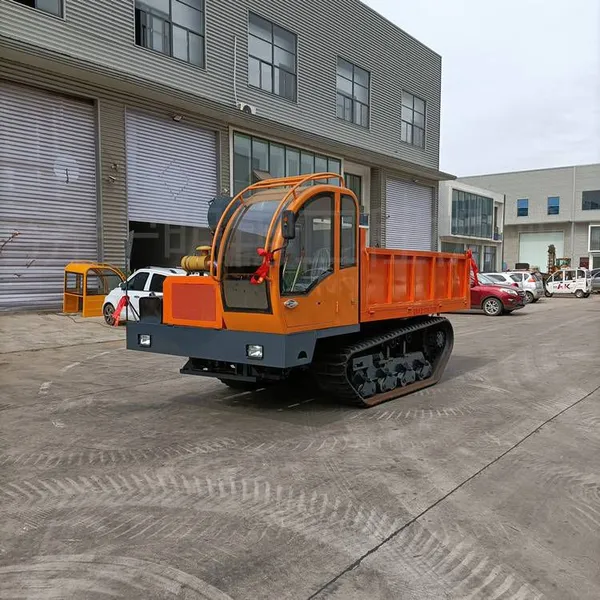

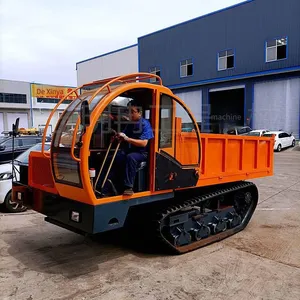

Help CenterMuddy Ground Transfer Crawler Vehicle, 10-ton All-solid Wheel Crawler Transporter, Hill-climbing King Mountain Vehicle
Related Products
-
Gobi Desert Photovoltaic Pile Driver, Solar Energy Project Drilling Machine, Crawler-type Walking Hole Guiding MachineUS$ 9000 - 10200MOQ: 1 Unit -
Vehicle-mounted Asphalt Heating Equipment, Water Dust Removal Asphalt Mixer, 1.5-cubic-meter Automatic Feeding MixerUS$ 8123.08 - 8584.62MOQ: 1 Unit
-
All-terrain Tracked Truck-mounted Crane, Integrated Garden Lifting and Transportation Machine, Dump Self-unloading Tracked CraneUS$ 7461.54 - 8507.69MOQ: 1 Unit
-
Crawler Long Screw Pile Driver, High-rise Foundation Drilling Machine With 360-degree Rotation for Rapid Hole GuidingUS$ 15076.92 - 17230.77MOQ: 1 Unit
-
High-altitude Rock Drilling Hupu Drill, Fully Automatic Lifting Anchoring Drill, Crawler-type Slope Protection Anchor Hole Drilling MachineUS$ 13538.46 - 18153.85MOQ: 1 Unit
Welcome to call for consultation: 15588722150, Manager Gao
I. Scope of application
1. The crawler transport dump truck can adapt to complex and harsh road conditions such as paddy fields, swamps, muddy field roads, rugged mountain roads, soft grasslands, deserts, slippery ice surfaces and snow
It is widely used in agricultural and forestry orchard transportation, freight yard loading, water conservancy construction, infrastructure projects, and mining sites.
2. It is suitable for complex road conditions such as swamps, river beaches, deserts, paddy fields, tropical rainforests, snowfields and ice surfaces.
3. A crawler-type slope transporter for agricultural slope transportation, which can carry goods such as grains, fruits, fertilizers that need to be transported on slopes .
II. Features
1. Simple operation, complete gears, small bearing ground pressure, capable of handling deeper mud pits, ponds and complex rocky roads.
2. Compared with ordinary transport vehicles, the crawler vehicle has a vehicle size suitable for traversing terrain and can easily pass through narrow rocks, woodlands and buildings.
3、Small turning radius, flexible maneuverability, especially suitable for narrow sites, reducing the cost of road construction.
4、Equipped with electric start, centralized handles, and convenient operation.
5、 Large traction force, good climbing and grip performance, and strong transportation capacity.
Model | 8-10 ton crawler transporter |
Cargo box length * width * height (cm) | 320*220*70cm (customizable) |
Self-unloading method | Double-top self-unloading |
Crawler specifications | 450*90*70 |
Crawler load-bearing wheels | Solid wheels |
Crawler tensioning method | Spring tensioning cylinder |
Starting method | Electric start |
Engine model | Four-cylinder4108 turbocharged |
Engine power (kw) | 88Kw |
Gearbox | Wanliyang545 (Rear high and low speed 5+1) |
Rear axle model | 153 Rear axle |
Braking method | Electronic water spray brake |
Cab | Single full-closed cab |
Ground clearance of the vehicle bottom | 28cm |
Flat road load capacity (kg) | 8-10T |
Slope load capacity (kg) | 6000KG |
Self-weight (kg) | 4500kg |
Driving speed | 1-40KM/H |
