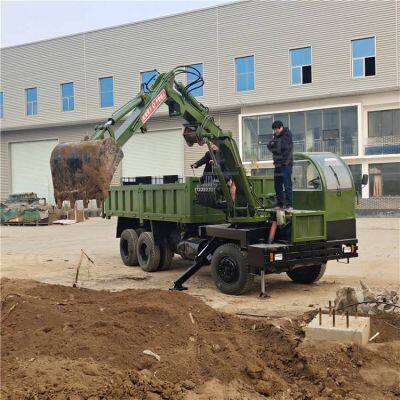

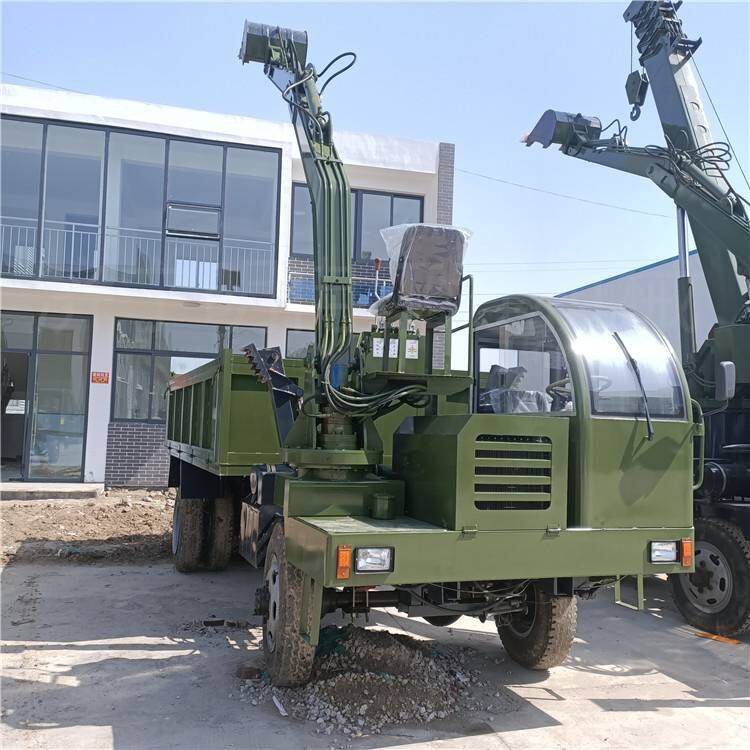

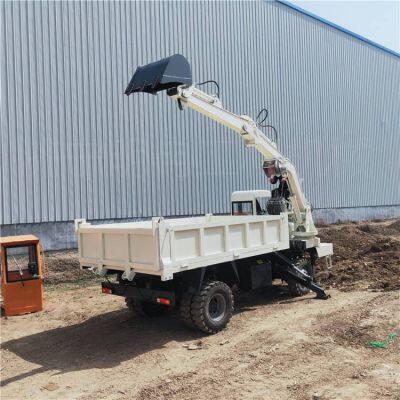

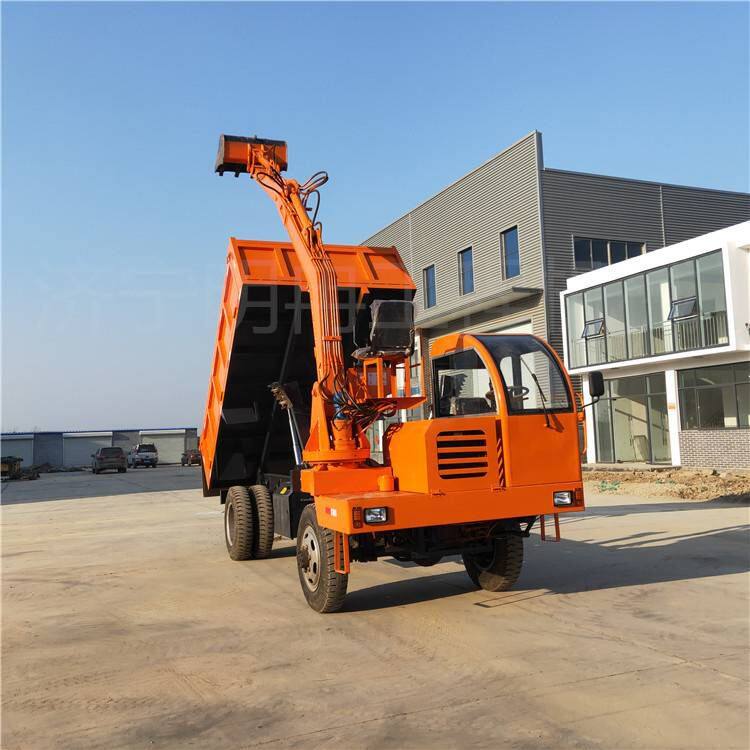

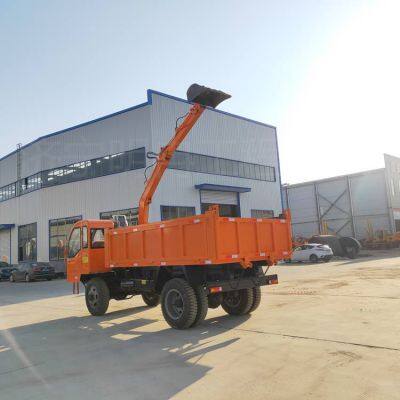

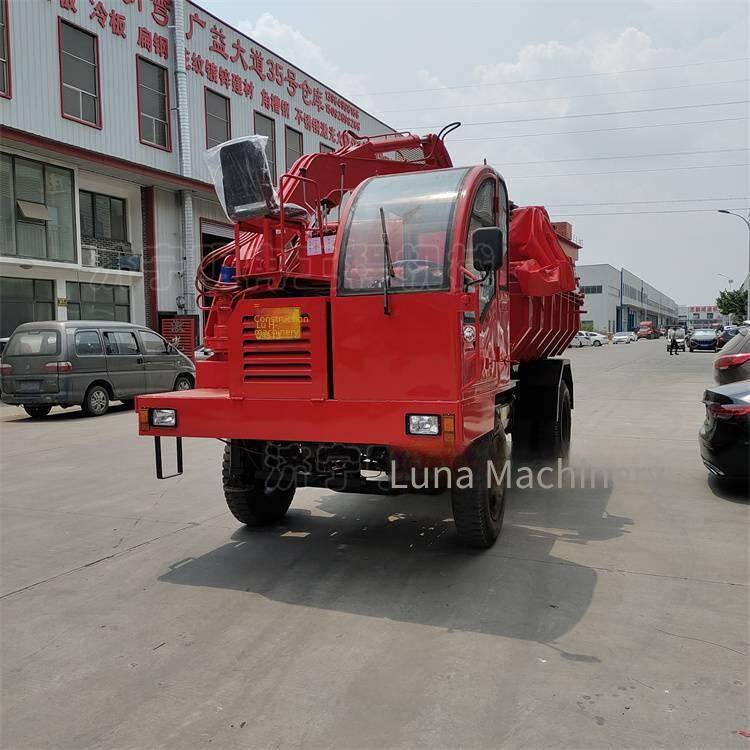

I. Introduction to the truck-mounted excavator:

 It is equipped with various working tools such as excavation, lifting, loading, leveling, clamping, bulldozing, and rotary drilling. It is widely used in water conservancy projects and the exploitation of four-wheelers, and can also be used for earthwork construction operations in sand fields.

II. Performance characteristics of the truck-mounted excavator

1. It uses domestic engines, gearboxes, and rear axles, with low speed and high torque, greatly improving the climbing performance.
2. The enlarged desert-style air filter greatly reduces the entry of sand and dust, making it suitable for use in harsh environments and extending the service life of the engine and hydraulic system.
3. It has superior waterproof performance. The whole vehicle's wiring and electrical appliances are treated with high-grade waterproof sealing, effectively avoiding the phenomenon of electric leakage caused by rainwater.
4、Large-angle steering, smaller turning radius, more suitable for complex road conditions with narrow and winding lanes.
5、Domestically, a regular automotive rigid frame is used, which is more flexible than the traditional riveted and welded frame and remains unchanged after heavy pressure.
6、All parts are products of national first-tier brands, with strong universality. The quality reaches the domestic level, and it is easier to buy replacement parts locally in a timely manner.
7、The company uses front and rear cast axles, which are stronger and more durable than traditional welded axles. The chassis is fully reinforced to meet mining standards.

III. Detailed parameters:SV-D

Four-wheel-drive excavator with a truck body

Engine

490/4102/4105/4108 engine

Tires

750-16/825-20

Starting method

Electric start

Gearbox

Dongfeng 145 (6-speed with pneumatic push high and low speed)

Rear axle

Small Dongfeng

Steering

Hydraulic power steering

Braking method

Pneumatic brake

Drive mode

Rear-wheel drive/Four-wheel drive

Cab

Fully enclosed

Dump

Dual hydraulic cylinder dump

Excavator arm length

2/3.5/5 meters

Bucket capacity

0.25/0.3/0.35m³ (Optional)

Digging depth

1800 - 2350mm

Carriage size

3*2*0.8/3.5*2*0.8 (customizable)

Note: Product parameters are for reference only. Please consult the customer service for specific parameters.
