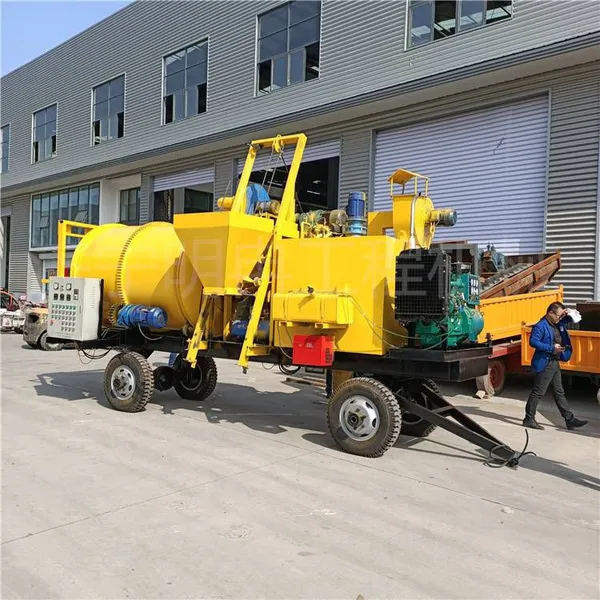

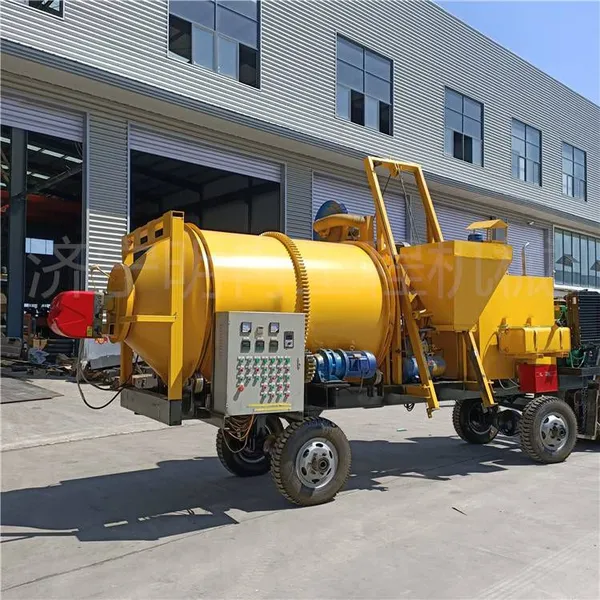

Help CenterHighway Paving Frying Material Machine, Asphalt Heating Mixer, Automatic Feeding Asphalt Mixer
Related Products
-
Agricultural Tricycle Modified Pile Driver, Small Foundation Drilling Machine for Civilian Houses, 3-meter Screw Rod DrillingUS$ 5923.08 - 6969.23MOQ: 1 Unit -
High-altitude Slope Protection Drill, Crawler Rock Drilling and Hole Guiding Machine, Drilling Machine With a Lifting Height of 15 MetersUS$ 13538.46 - 15323.08MOQ: 1 Unit
-
Forklift Foundation Pile Driver, Loader-type Pole Hole Drilling Machine, 3-meter Spiral Drill Rod Pile Driving MachineryUS$ 5538.46 - 6538.46MOQ: 1 Unit
-
Garden Rubber Crawler Truck Crane, Crawler Vehicle With Crane, Dump Self-unloading Truck-mounted CraneUS$ 5461.54 - 6538.46MOQ: 1 Unit
-
Four-wheel Drive Wheeled Excavator Attached to the Vehicle, Excavator Arm Installed on the All-terrain Transporter, 10-ton Integrated Excavator and TransporterUS$ 5461.54 - 6800MOQ: 1 Unit
Welcome to call for consultation: 15588722150, Manager Gao
I. Main uses:
HG-D1 1.5The asphalt concrete mixer can mix new asphalt mixtures; it can also recycle old asphalt mixtures; and it can heat and mix the stacked and stored asphalt mixtures for reuse. The electric-start diesel generator solves the problem of no common power supply for field operations. The asphalt concrete mixer can repair the potholes on the road surface on-site at any time and place, and the road can be opened to traffic after the operation is completed, ensuring the road is in good condition and unobstructed. Its function is more prominent especially in cold winter.
II. Main structure:

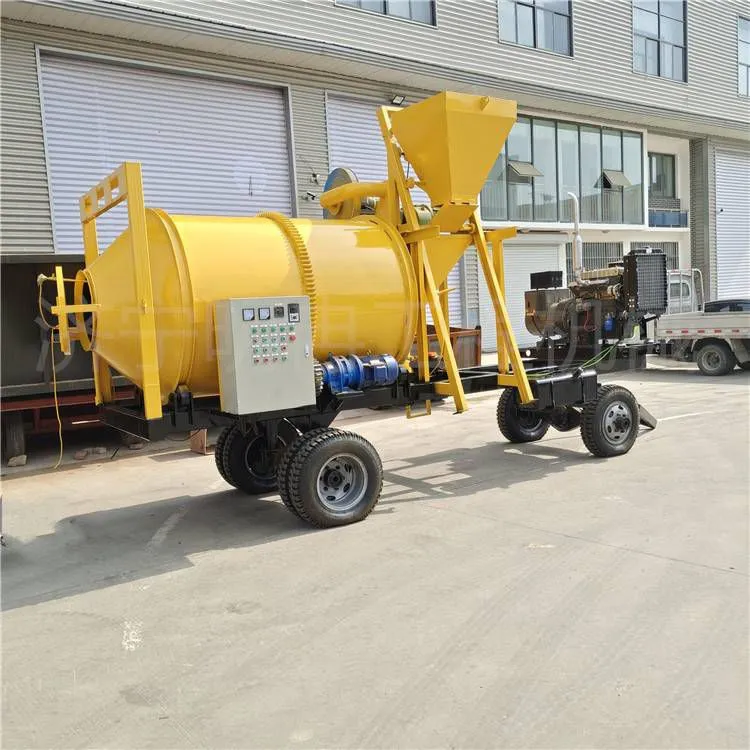

HG-D1 1.5The asphalt concrete mixer is composed of an electric-start diesel generator, and its structural forms are as follows;
1. It is a towed type with rear axle brake and tripod traction;
2. It can be hoisted on a transport vehicle for construction operations, including vehicle-mounted and fixed types in three ways;
III. Performance characteristics:
(1) Mixing method: HG-D1 1.5The asphalt concrete mixer uses the blades inside the rotating drum with an insulation layer for mixing; The drum rotation is driven by a cycloidal pin gear reducer to drive the gear, and the mixing volume each time is not less than1500 kg.
(2) Heating method: A diesel burner is used for heating to raise the temperature of the gas inside the drum; The temperature of the gas is transferred to the asphalt mixture, and its temperature is controlled by the temperature sensing system. When the required temperature is reached, the burner stops burning.
(3) Feeding method: The feeding track can be folded. The feeding hopper is of the bottom-discharge type, and its capacity is300 kg/time; The lifting is carried out by a multi-functional electric hoist, which is limited by a travel switch.
(4) Dust removal method: A cyclone dust removal system is used. The dust and water vapor inside the drum are discharged by a centrifugal fan.

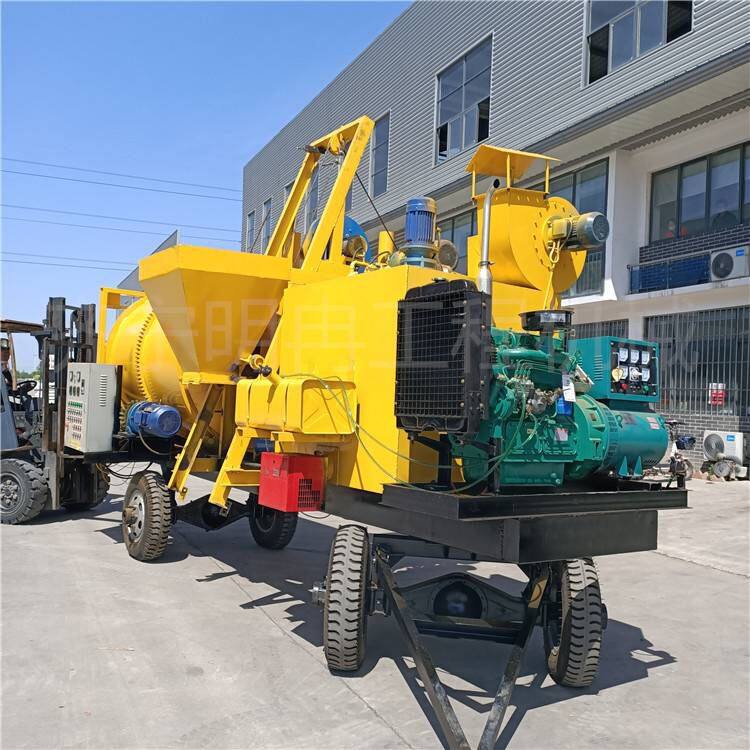

(5) Power supply method: If the external power supply cannot be connected, an electric-start diesel generator set with a power of30 KW is provided; There are four sets of secondary rubber shock-absorbing mechanisms under the frame of the generator set, and it runs very smoothly to prevent damage to vibrating parts and electrical appliances.
(6) The whole machine adopts a multi-functional electrical control system, which is clear at a glance and easy to operate.
4. Product parameters:
HG-1 1.5 cubicAsphalt Mixer | ||
Mixing capacity | Single time 1700kg in 20 minutes | |
Discharging temperature | 120-180° (adjustable) | |
Heating method | Diesel burner | |
Oil consumption | 20L/h | |
Vacuum motor | 2-pole 1.5KW | |
Mixer power | 5KW | |
Fan power | 1.5KW | |
Lifting motor power | 3KW | |
Diesel generator set | Engine | 4102 |
Engine power | Diesel engine power: 80kw | |
Generator power | 30KW | |
Current | 27.1A, Number of poles: 4 | |
Gross weight of the machine | 6000㎏ | |
Overall dimensions | Length, width and height (excluding trailer) | 6200×2000×3000mm |
