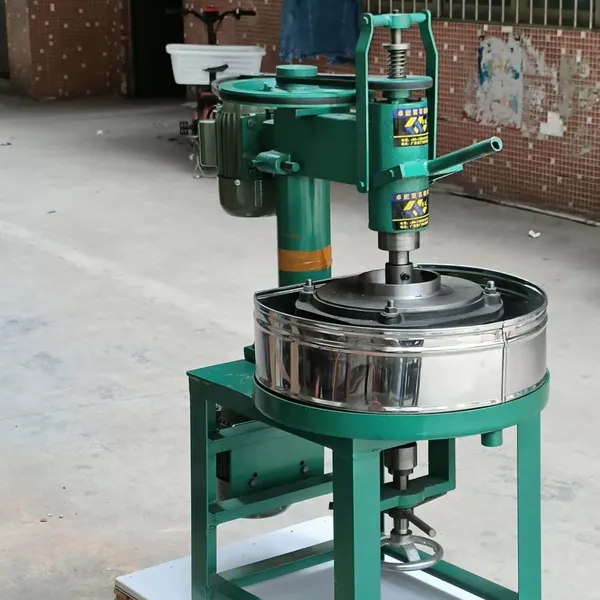

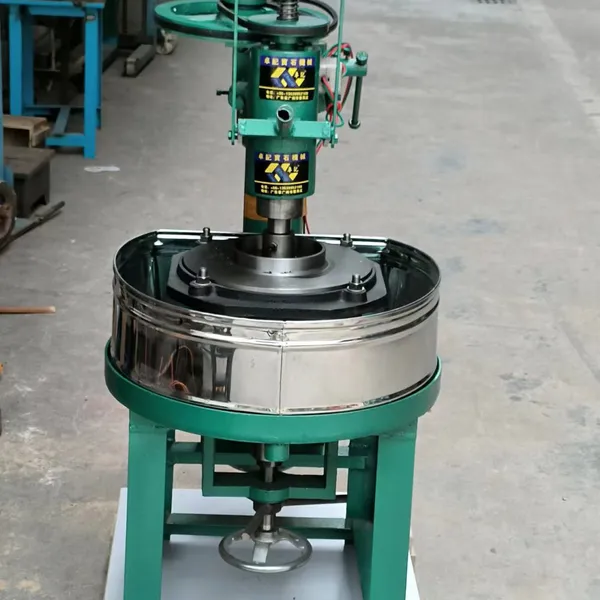

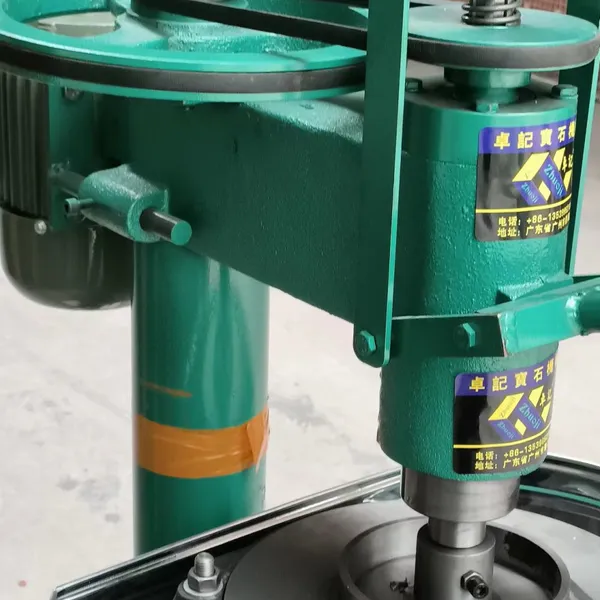

Xiongxing Brand Dual-Drive Bead Grinding Machine
Product Model: N001
Product ID: 810704001
I. Product Overview
The Xiongxing Brand Dual-Drive Bead Grinding Machine is a high-efficiency device specifically designed for gemstone processing. It primarily grinds chamfered stone blanks into standard round beads in a single pass. Its dual-drive design ensures smooth and efficient operation, processing hundreds of beads per cycle to significantly enhance production efficiency and product consistency.
II. Core Features
1. High-Volume Processing: Simultaneously handles hundreds of blanks for large-scale, standardized bead production.

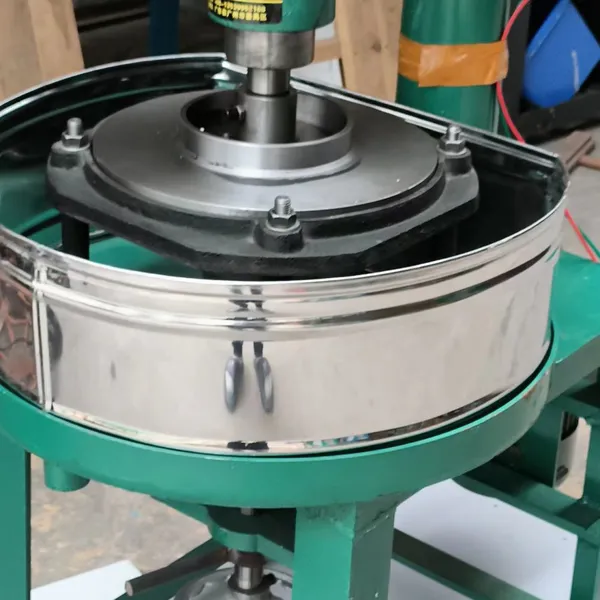

2. Precision Adjustment Mechanism: Equipped with a tray height adjustment wheel to precisely regulate the tray (bearing the grinding plate) height, controlling the working distance between the grinding wheel and grinding plate to accommodate different bead diameters.
3. Wide Compatibility: Suitable for shaping beads from various natural gemstone materials (e.g., agate, crystal, chalcedony).
4. Ideal Processing Range: Specifically designed for grinding beads between 5mm and 20mm in diameter.
III. Technical Specifications
Input Voltage: AC 220V / 380V (Optional)
Motor Output Power: 1.1 kW (Grinding Disc)
Motor Output Power: 0.37 kW (Upper Cover)
Spindle Speed: 100 rpm (Upper Cover)
Spindle Speed: 600 rpm (Grinding Disc)
Overall Dimensions (L*W*H): 90 * 60 * 120 cm
