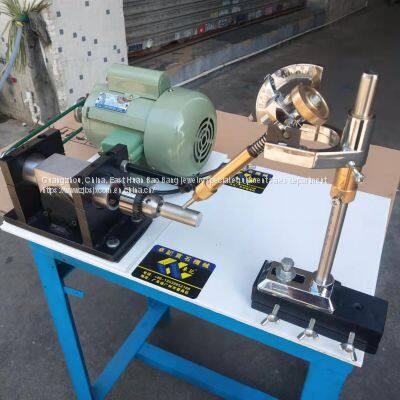

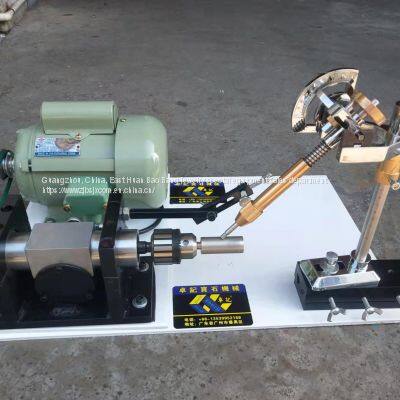

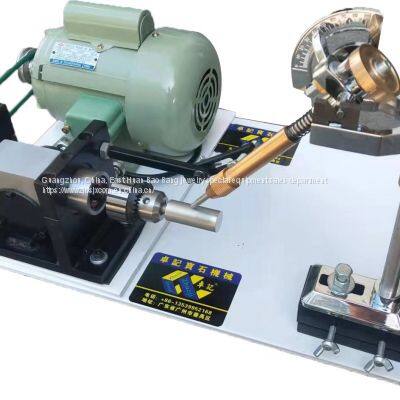

Xiongxing Third-Generation Concave Facet Millennium Machine
Model: A2800
Serial Number: 810502001
Product Overview
The Xiongxing Third-Generation Concave Facet Millennium Machine (Model A2800) is our factory's newest core processing equipment designed for concave facet creation. This model integrates grinding and polishing functions into a single unit, specifically engineered for high-precision processing of gemstone facets with curved surfaces. Featuring a high-precision manipulator and user-friendly speed adjustment, this equipment has become our company's flagship product and represents an ideal choice for technological upgrades within the gemstone processing industry.
Core Advantages
High-Precision Processing: Employs a high-precision manipulator to ensure accurate facet shaping and naturally smooth curved surfaces.
· Third-Generation Technology: Optimized mechanical structure and control system for enhanced stability and easier operation.
· Precise Indexing Control: Supports various indexing settings including 96, 80, 72, 64, 48, and 32, allowing precise definition of facet distribution around the circumference to meet different cut design requirements.
· Flexible Speed Adjustment: Equipped with manual speed control function, allowing fine adjustment of rotational speed based on different material properties and processing needs.
· Wide Applicability: Compatible with various gemstone materials and supports processing over ten mainstream facet shapes.
Applicable Materials & Processable Shapes
Applicable Materials: Gemstones, Crystal, etc.
·Processable Shapes: Square, Oval, Pear, Triangle, Round, Pendant, Rectangle, Marquise, Heart.
Technical Specifications
Input Voltage: AC 220V
Motor Power: 180W
Spindle Speed: 2800 / 3200 r/min
Dimensions: 30 * 55 * 20 cm
Equipment Weight: 38 kg
Standard Configuration Processing Line
We provide a complete processing solution:
Cutting Machine → Shaping Machine → Xiongxing A2800 Millennium Machine
Detailed Processing Workflow
1. Doping: Secure the stone material onto the dop stick.
2. Cutting the Table: Initially shape the table facet on the top of the stone.
3. Crown Grinding & Polishing: Use the machine for grinding and angle polishing of the curved facets on the crown.
4. Table Polishing: Perform fine angle polishing on the table facet of the stone.
5. Transfer & Pavilion Pre-forming: Flip the stone and use an angle machine for the initial grinding of the pavilion (bottom).
6. Pavilion Grinding & Polishing: Use the machine for the final grinding and angle polishing of the curved facets on the pavilion.
Business Scope
Automated processing equipment for gem cutting and slabbing, plus blades.
Automated CNC processing equipment and tools for colored gemstones.
Automated CNC processing equipment and tools for gem beads and balls.
Processing equipment and tools for jade and jadeite bracelets.
Processing equipment and tools for special-shaped and fancy gemstones.
Equipment and tools for gemstone optimization treatments like waxing/resin infusion.
Tumbler polishing equipment and materials.
Equipment and tools for gemstone drilling.
About Us
Since its establishment in 2003, Guangzhou Xiongxing Gem Machinery Co., Ltd. has consistently focused on the R&D, manufacturing, and sales in the field of gem and jade machinery. The company has introduced advanced production equipment and techniques from both domestic and international sources. After more than twenty years of continuous accumulation and innovation, we have now established a comprehensive R&D, production, sales, and after-sales service system.
We always adhere to product quality as the core, striving for continuous improvement, and have won wide recognition within the industry. Our products not only cover all parts of the country but are also exported to the Middle East, Europe, America, Southeast Asia, and many other countries and regions. We have become a core supplier in several important gem processing bases, deeply trusted and well-received by customers at home and abroad.
Friends from all walks of life are warmly welcomed to visit us for inspection and discuss cooperation.
