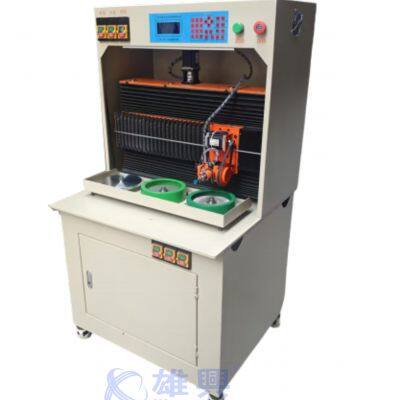

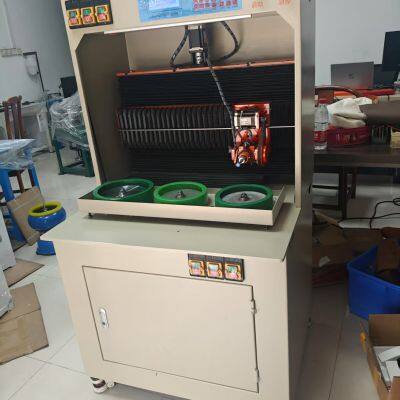

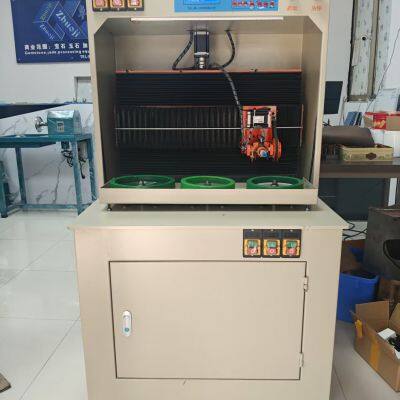

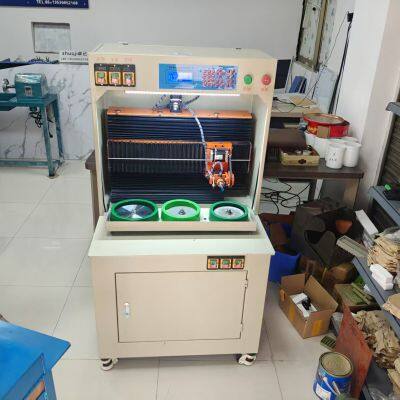

Product Name: Xiongxing CNC Gemstone Faceting Machine (Rough Grinding, Fine Grinding & Polishing Integrated Machine)
Model: XX-380D (6th Generation)
Serial Number: 810501888
I. Equipment Overview
This 6th-generation CNC gemstone processing machine integrates rough grinding, fine grinding, and polishing. It is suitable for precision batch processing of over 50 faceted gemstone shapes, including round, oval, square, pear, and heart shapes. The machine is controlled by five stepper motors, offering a high degree of automation. One operator can manage three machines simultaneously, significantly reducing labor costs.
II. Technical Specifications
Parameter Specification
Voltage 220V
Motor Power 250W
Spindle Speed 1400–2800 r/min (optional)
Grinding/Polishing Disc Size 6–7 inches (150mm/170mm)
Dimensions (L×W×H) 80×76×150 cm
Cooling Method Water cooling
CNC System Does not support USB or network file transfer
Weight 192 kg
III. Processing Capability
· Shapes Supported: Round, oval, square, rectangle, triangle, pear, heart, drop, marquise, and over 50 common/custom shapes. Capable of saving 50 custom settings.
· Processing Size: 2mm–50mm / 0.08–2.0 inches
· Processing Function: Grinding and polishing completed in one operation.
· Processing Efficiency: Natural gemstone, 15mm round brilliant cut, 8 indexes, 3-layer crown and pavilion grinding/polishing: approx. 2 minutes per piece.
· Processing Accuracy: Angle error ±0.03° (precision lead screw and stepper motor control).
IV. Structure & Control System
Equipped with five stepper motors, each controlling different axial movements for precision processing:
Motor Function Description
Y1 Controls index position (similar to an 8-index handpiece); supports regular batch input of index numbers.
Y2 Adjusts downward grinding angle and pressure; controls distance from the lap.
Y3 Controls left/right oscillation of the head; adjusts lap contact position, amplitude, and frequency.
Y4 Controls vertical lift adjustment; overall height adjustable for each layer and polishing.
Y5 Controls forward/backward movement; each layer position can be set independently.
V. Brief Operating Procedure
1. Select gemstone type (e.g., round).
2. View and adjust top surface parameters.
3. Set grinding parameters (first layer).
4. Select "Start" to begin automatic operation.
5. In Y1 parameters, select "Regular Batch Input" → Enter index number (e.g., 8) → Confirm batch input.
VI. Processing Workflow
Raw material → Cutting → Shaping → Barrel polishing → Stone adhesion → Table pressing → Facet grinding → Facet polishing → Surface polishing → Stone flipping → Girdling → Pavilion sanding → Pavilion polishing → Stone removal
VII. Supporting Equipment
This machine is a key piece of equipment in the gemstone processing production line. Common supporting equipment includes:
Cutting machine → Shaping machine → Vibratory polishing machine → Table pressing machine → Girdling machine → Stone alignment/adhesion machine → Pavilion retroreflector → Stone removal machine
VIII. Delivery & After-Sales Service
· Delivery Method: Ex-factory delivery, or shipment to designated warehouse of Guangzhou shipping agent.
· Minimum Order Quantity: 1 unit
· Packaging: Wooden case
· Warranty Period: 18 months
· Technical Support: Operation videos, remote support, and free online consultation.
· Main Export Markets: South America, Middle East, Southeast Asia, Europe, etc.
IX. Core Advantages
1. High-Precision Processing
Precision lead screw and stepper motors keep facet angle error within ±0.03°. The grinding disc and motor meet national standards, ensuring stable, quiet, and vibration-free operation, meeting mid-to-high-end gemstone processing requirements.
2. High Efficiency & Stability
Self-developed control system supports crown and pavilion facet indexing, improving production efficiency by over 30%. The machine runs continuously and stably with low failure rates.
3. Easy Operation
Supports Chinese/English interface. Ordinary workers can become proficient after 5–10 days of training, reducing reliance on skilled technicians.
4. Durable & Wear-Resistant
Body constructed from 10mm thick high-strength steel plate with dustproof structure. The spindle is chrome-plated, suitable for long-term heavy-load production, with low maintenance costs.
5. After-Sales Support
24/7 online technical support. Core components have an 18-month warranty for peace of mind
