Help CenterKa-Band Highpass Filter 25.5GHz–27GHz, Low Insertion Loss, 2.92mm Female, 5W
Related Products
-
Ka-Band Cavity Diplexer, 24.8–26.2 GHz, High Isolation ≥60 DB, 10W, SMA FemaleNegotiableMOQ: 1 Piece -
1.2GHz Notch Filter for GPS/GNSS & Radar Interference, 1166-1300MHz @ 50dB, SMA FemaleNegotiableMOQ: 1 Piece
-
C-Band (3450-3550MHz) Notch Filter for 5G & Satellite Systems | 50dB Rejection, 20WNegotiableMOQ: 1 Piece
-
C-Band Notch Filter for 5G N77n78 & Satellite Coexistence 3700-3980MHz, 40dBNegotiableMOQ: 1 Piece
-
High-Power 50W Notch Filter for Cellular & Broadcast Interference, 650-800MHz @ 40dB, N-TypeNegotiableMOQ: 1 Piece

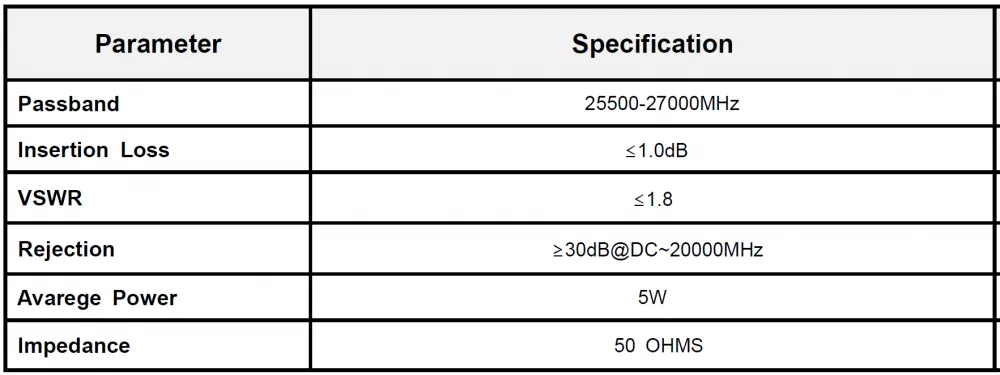

Concept model CHF25500M27000A01 high-performance Ka-Band Highpass Filter is designed to deliver exceptional signal clarity in the 25.5GHz–27 GHz frequency range. Featuring very low insertion loss (≤1.0 dB) and strong rejection of frequencies below 20 GHz (≥30 dB), this filter ensures minimal signal degradation while effectively eliminating unwanted low-band interference.
This general purpose highpass filter offers high stop band suppression and low insertion loss in the passband. These filters can be used to eliminate unwanted side bands during frequency conversion or for removing spurious interference and noise.
1. Satellite Communication Uplink Paths
2. Point-to-Point Microwave
3. Radio Systems Radar & EW Front-End Filtering
4. 5G Millimeter-Wave Base Stations
5. RF Test & Measurement Setups
Send Inquiry to This Supplier
