C-Band Notch Filter for 5G N77n78 & Satellite Coexistence 3700-3980MHz, 40dB
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2016
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High-Power 50W Notch Filter for Cellular & Broadcast Interference, 650-800MHz @ 40dB, N-TypeNegotiableMOQ: 1 Piece -
X-Band Notch Filter, 8400-8450MHz, 20dB Rejection, 20W, SMA-femaleNegotiableMOQ: 1 Piece
-
High-Power Notch Filter for PCS & Satellite Interference - 1930-1990MHz, 50dB, 50WNegotiableMOQ: 1 Piece
-
Cavity Bandpass Filter, 2170-2290MHz, Low Loss, High Rejection, IP65, N-FemaleNegotiableMOQ: 1 Piece
-
X-Band Cavity Bandpass Filter , 9143MHz-9243MHz, High Rejection, SMA FemaleNegotiableMOQ: 1 Piece

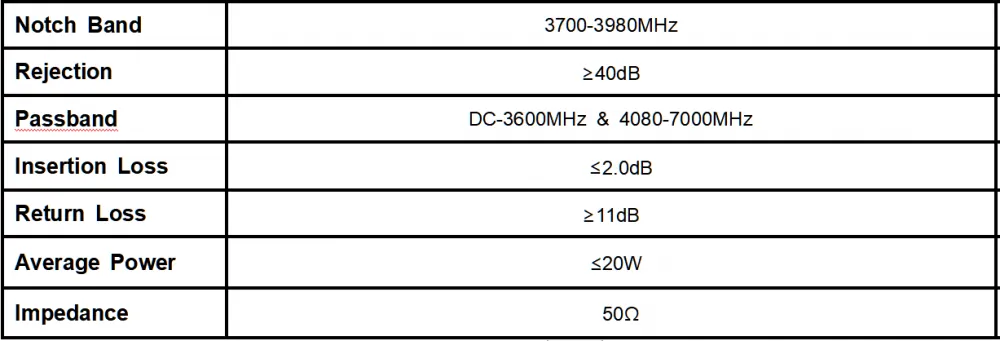

Concept model CNF03700M03980Q10A is a high-performance C-Band cavity notch filter engineered to suppress interference across the 3700-3980 MHz frequency range—a critical band for 5G NR n77/n78 deployments and satellite C-band uplinks. Featuring ≥40dB rejection and low insertion loss (≤2.0dB) across wide passbands (DC-3600MHz & 4080-7000MHz), this filter is essential for enabling clean spectrum sharing, protecting sensitive receivers, and ensuring compliance in dense RF environments.
Applications
• 5G NR Infrastructure
• Satellite Communication (SATCOM)
• Fixed Wireless Access (FWA)
• Spectrum Sharing & Coexistence
• RF Test & Measurement
