C-Band (3450-3550MHz) Notch Filter for 5G & Satellite Systems | 50dB Rejection, 20W
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2016
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu City
Delivery Detail:
15 days
Related Products
-
High-Power 50W Notch Filter for Cellular & Broadcast Interference, 650-800MHz @ 40dB, N-TypeNegotiableMOQ: 1 Piece -
High-Power Notch Filter for PCS & Satellite Interference - 1930-1990MHz, 50dB, 50WNegotiableMOQ: 1 Piece
-
1.2GHz Notch Filter for GPS/GNSS & Radar Interference, 1166-1300MHz @ 50dB, SMA FemaleNegotiableMOQ: 1 Piece
-
C-Band Notch Filter for 5G N77n78 & Satellite Coexistence 3700-3980MHz, 40dBNegotiableMOQ: 1 Piece
-
X-Band Notch Filter, 8400-8450MHz, 20dB Rejection, 20W, SMA-femaleNegotiableMOQ: 1 Piece

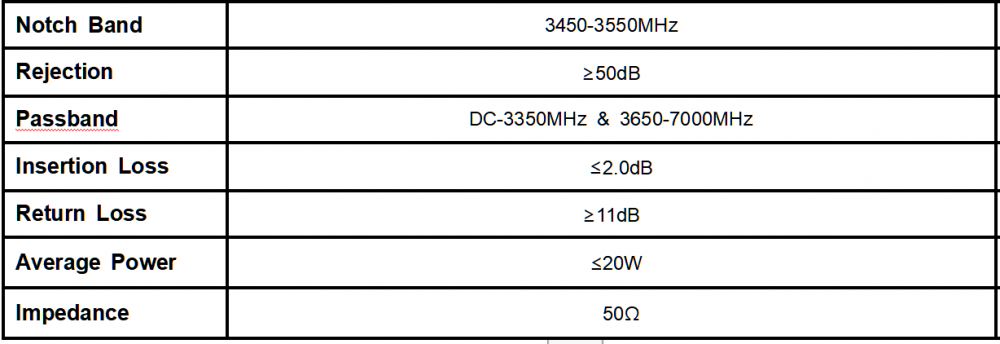

Concept model CNF03450M03550Q10A is a high-performance C-Band cavity notch filter designed to provide deep suppression (≥50dB) within the critical 3450-3550 MHz frequency range. This band is central to 5G NR n78 deployments and satellite C-band communications. By effectively eliminating strong interference signals while maintaining low insertion loss (≤2.0dB) across a wide passband (DC-3350MHz & 3650-7000MHz), this filter is essential for ensuring signal integrity, preventing receiver desensitization, and enabling spectrum co-existence in complex RF environments.
Applications
• 5G Cellular Infrastructure
• Satellite Communication (SATCOM)
• Spectrum Co-existence Systems
• Public Safety & Military Comms
• RF Test & Measurement
