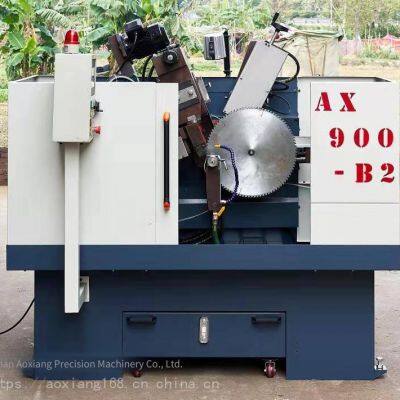

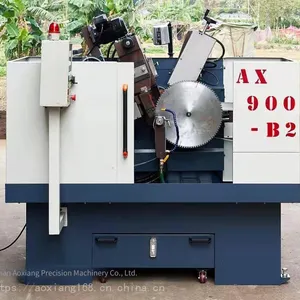

Automatic alloy saw blade grinding machine AX900-B2 type profile
Automatic alloy saw blade grinding machine AX900-B2 type is for the alloy circular saw blade grinding and re-use of mechanical equipment, but also the necessary equipment for the production of new saw blade, you can diameter between 80mm to 800mm alloy circular saw blade before Angle, the back angle contains all the toothed grinding, a single machine 8 hours a day can be grinding alloy saw blade 40 60 60, is the use of saw manufacturers and saw blade manufacturers commonly used equipment. PLC control, color touch screen display, the infeed system using precision waterproof servo motor, flat ladder teeth can be a grinding finish, with teeth can also be repeated grinding 2-3 times, grinding accuracy can be controlled within 0.03mm, easy to learn , Without the need to unlock and lock the button, the system automatically according to operational requirements automatically locked. In the saw blade grinding sharp premise, but also fully extend the life of the blade, each can be reused 20-30 times. Including the Guangzhou Europe, Zhongshan Europe and the United States furniture, Dongguan Green Point furniture, Heshan superior furniture, Wuhan Pan Chau Zhong Yue, Jiangxi Ganzhou Sequoia Wood, Anhui Lu&＃39;an Zhongzhong Wood, including the majority of users praise.
This type of power access is for three-phase 380V, 50HZ, (another colored line is for the ground line). The machine operation mode is PLC control, touch screen display, and hydraulic drive. It uses the PLC (DVP60ES200T) and color touch screen (DOP-B07S410) produced by Zhongda Company, which are more suitable for ensuring stability. The hydraulic system uses the 24V solenoid valve produced by Beijing when company, is equipped with a 380V 1.5KW hydraulic motor and a 20L special variable hydraulic pump, and is configured with a hydraulic stability system to ensure the balance of hydraulic operation. The electrical part uses orthodox Schneider products. It uses high-quality motors from Guangdong Tianyang. After strict factory quality testing, efforts are made to achieve zero defects after delivery, so that our customers can be more at ease!
The fully automatic alloy saw blade tooth grinding machine is a mechanical device for grinding alloy circular saw blades. It can grind and shape various tooth profiles, including flat teeth, triangular teeth, high-low teeth, trapezoidal teeth, combined teeth, left and right teeth, left flat and right teeth, etc. It is one of the most advanced saw blade grinding equipment in the current market.
Technical Parameters
| Grinding outer diameter: φ80 - φ800mm Saw blade inner diameter: φ10 - φ80mm Number of grinding teeth: 1 - 999 teeth Tooth pitch: 7 - 100mm Saw blade thickness: 8mm Main rake angle grinding: -10° to +40° Tooth face swing angle: Left 15° to Right 15° Rear angle grinding: 6 - 45° Tooth tip swing angle: Left 45° to Right 45° Grinding stroke: 1 - 28mm (Stepless speed change) Working speed: 18 - 30 teeth/min Grinding wheel outer diameter: φ125mm Grinding wheel inner diameter: φ32mm Grinding wheel rotation speed: 5800/min Cooling device: 50kl/min Total electric power: 1.64kw Machine net weight: 980kg Packing gross weight: 1180kg Machine body size: 1700×1280×1850mm
|
