Product Overview
Standard Configuration
→It has multiple protection functions such as short - circuit, locked - rotor, overload, grounding, phase loss/imbalance, TE curve, start - up timeout, and external faults;
→It measures three - phase current, zero - sequence current, and three - phase current imbalance degree to achieve comprehensive protection for the motor, and has the function of recording protection events;
→Protection mode: Relay protection output mode. The protection function is realized by connecting the normally closed contact (hard closed contact) of the relay to the secondary operation circuit;
→1 RS - 485 communication interface, Modbus RTU communication protocol;
→4 switch - quantity remote signal inputs can realize the function of collecting external state quantities. 3 relay protection control outputs are used for protection tripping and fault alarm output functions, etc.;

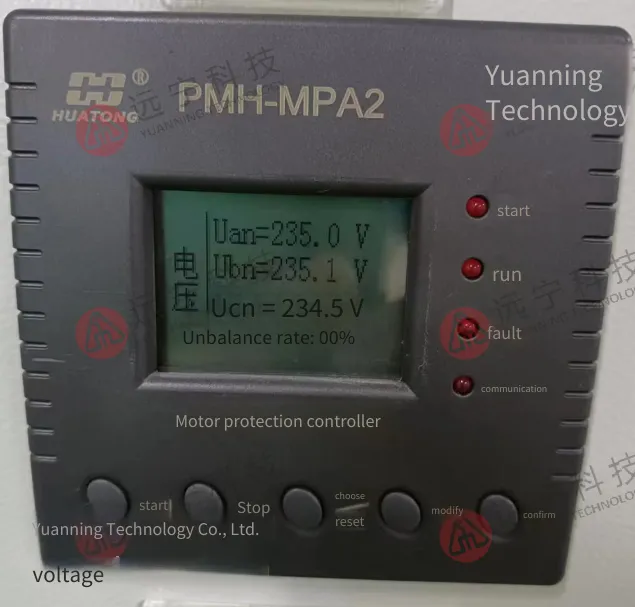

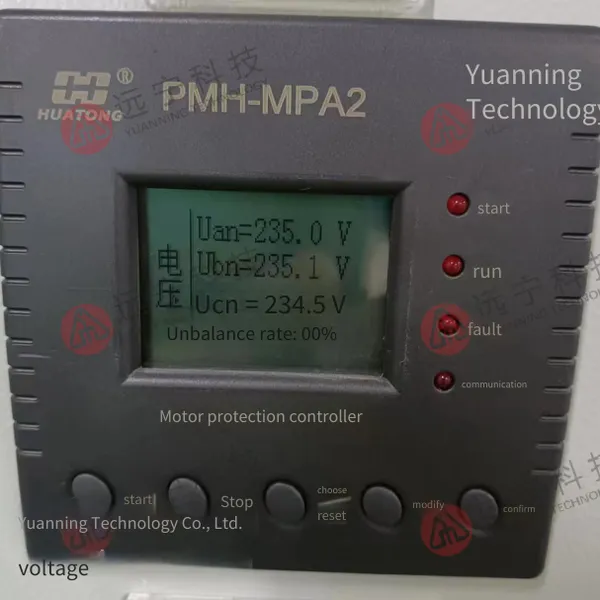

→Display mode: LCD Chinese liquid crystal display. Real - time reading of the measured values of three - phase current and records of protection events. Protection parameters can be set through the display panel and communication software. →Wide - range AC/DC universal power supply: AC/DC 85V~265V;
→There are two ways of current input, and users can choose flexibly according to their needs:

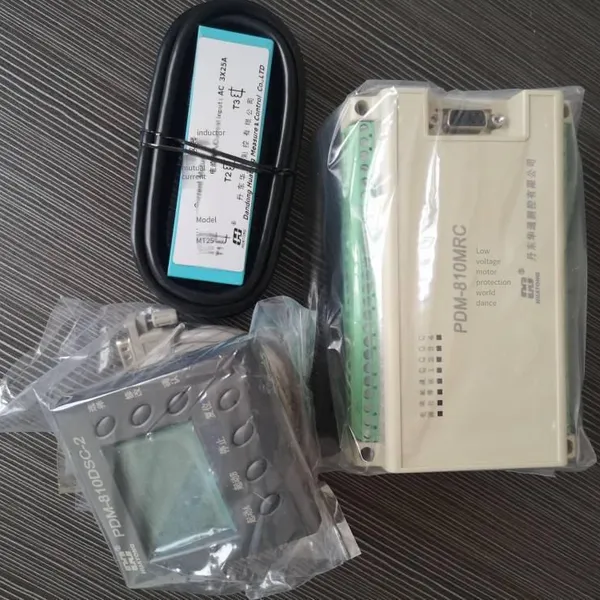

1. Special small CT input (MT optional). MT: Below 15A (MT25), 15A - 60A (MT100),
30A - 90A (MT150), 60A - 150A (MT250);
2. For currents above 150A, use standard CT in conjunction with MT5;
Special Customized Functions
◆
→1 editable DC4mA~20mA analog output (+A);
→Three - phase voltage measurement (+400V/600V);
→External zero - sequence/leakage current transformer input to measure zero - sequence/leakage current (+Y1A/Y50);
Purchase Notes
→When selecting three - phase voltage, additional measurement functions such as voltage, power, and electric energy, as well as under/over - voltage and under - power protection functions are added;
→The product comes with the default standard configuration. If you need special customized functions, please contact our customer service. The order lead time needs to be discussed with the customer service.;
→For the MT optional models, please select according to the actual power of the motor or consult the customer service.;
