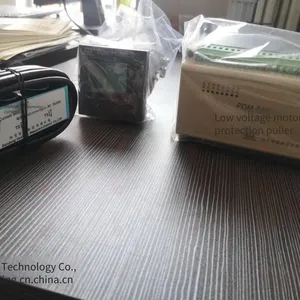

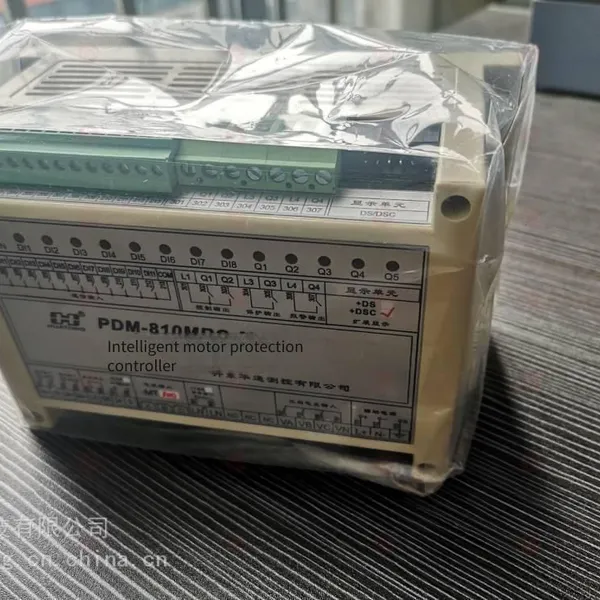

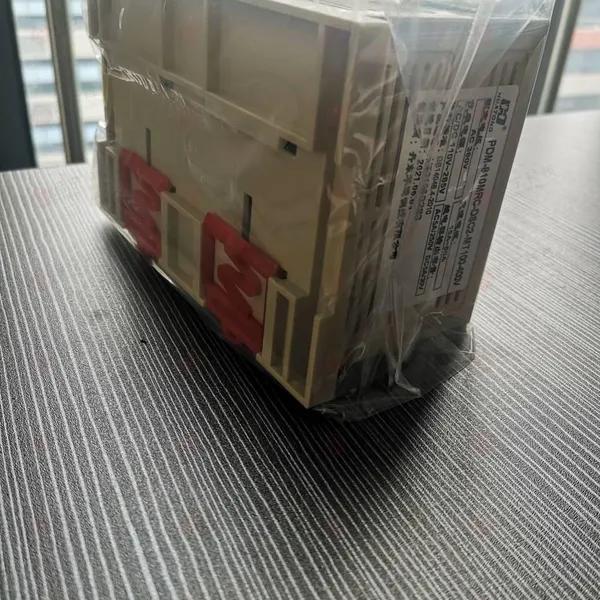

Help CenterDandong Huatong Pdm-810mrt-ds-a-mt5 Motor Protection
Related Products
-
Dandong Huatong Pdm-810mrc-5 Motor ProtectorUS$ 15.38MOQ: 1 Unit -
Dandong Huatong Pdm-810mrc-3 Motor ProtectorUS$ 15.38MOQ: 1 Unit
-
Dandong Huatong Pdm-810mrt-mt25 Motor ProtectorUS$ 153.69MOQ: 1 Unit
-
Transformer Protection and Measurement and Control Device for Csc - 282sUS$ 1025.54MOQ: 1 Unit
-
Dandong Huatong Pdm - 810mrc Intelligent Motor ControllerUS$ 153.69MOQ: 1 Unit
Technical specifications

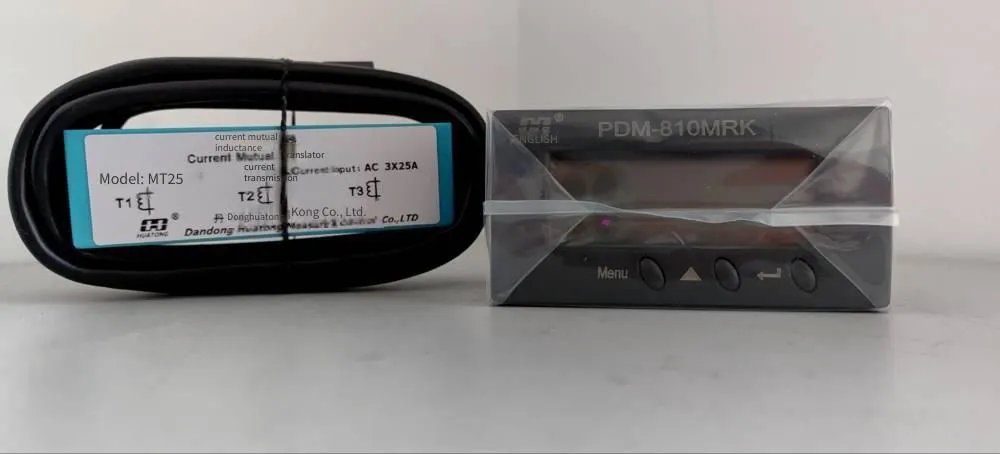

Input current · Rated current: MT5, MT25, MT100, MT150, MT250
Operating parameters
· Device power supply: AC/DC 85～265V, suitable for both AC and DC
· Device power consumption: ＜3W · Operating temperature: -40℃～70℃
· Storage temperature: -40℃～80℃
· Relative humidity: 5%～95% without condensation. Dimensions
· Main body dimensions: 112 mm×107 mm×72mm (Length × Width × Height)

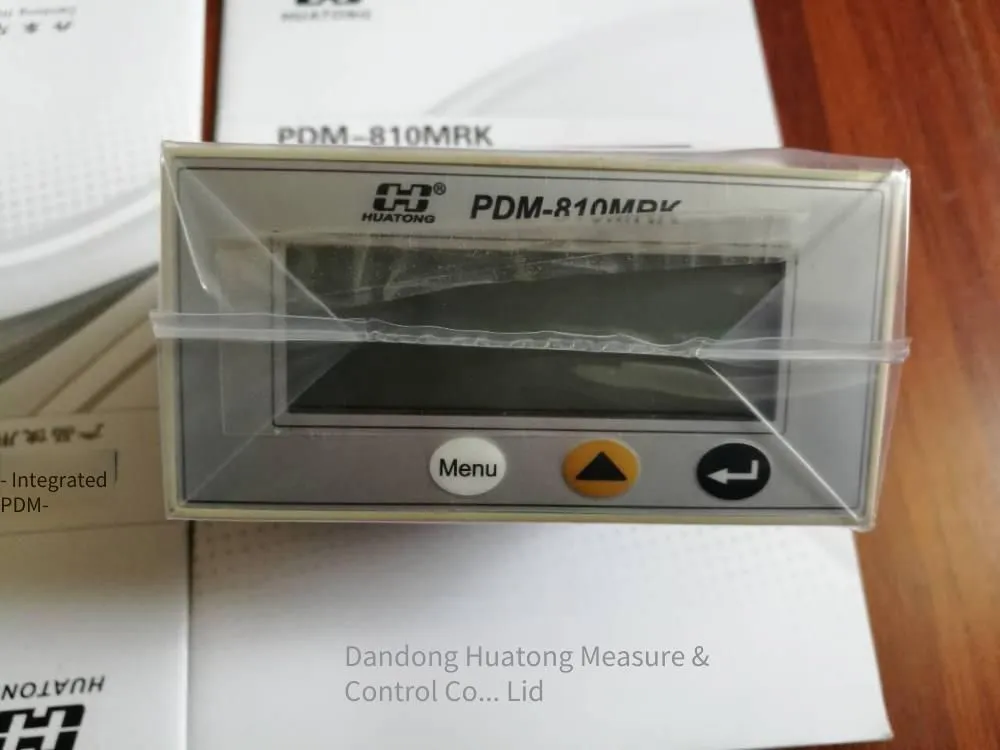

· Display unit: 72 mm×72 mm×40 mm
· Cut-out dimensions: 66 mm×66 mm
Measurement
· CT setting range: 1.000～9999
· Current accuracy: 0.5%. Insulation strength
· Insulation resistance: ≥500MΩ
· Withstand voltage for insulation: 2.0kV. Electromagnetic compatibility
· Lightning surge: Level 4, 4.0kV
· Electrical fast transient/burst immunity: Level 4, 4.0kV
· Electrostatic discharge: Contact discharge 6.0kV, Air-gap discharge 8.0kV
