Standard Configuration



★ Comprehensive measurement of more than 20 types of three-phase/single-phase electrical quantities: phase/line voltage, zero-sequence voltage, three-phase voltage unbalance, current, zero-sequence current, three-phase current

unbalance, active power, reactive power, apparent power, power factor, frequency
★ Standard CT, PT or direct voltage input, suitable for various wiring methods
★ Electric energy metering: active energy (kWh), reactive energy (kvarh)
★ Wide-range AC/DC universal power supply: AC/DC 85V～265V

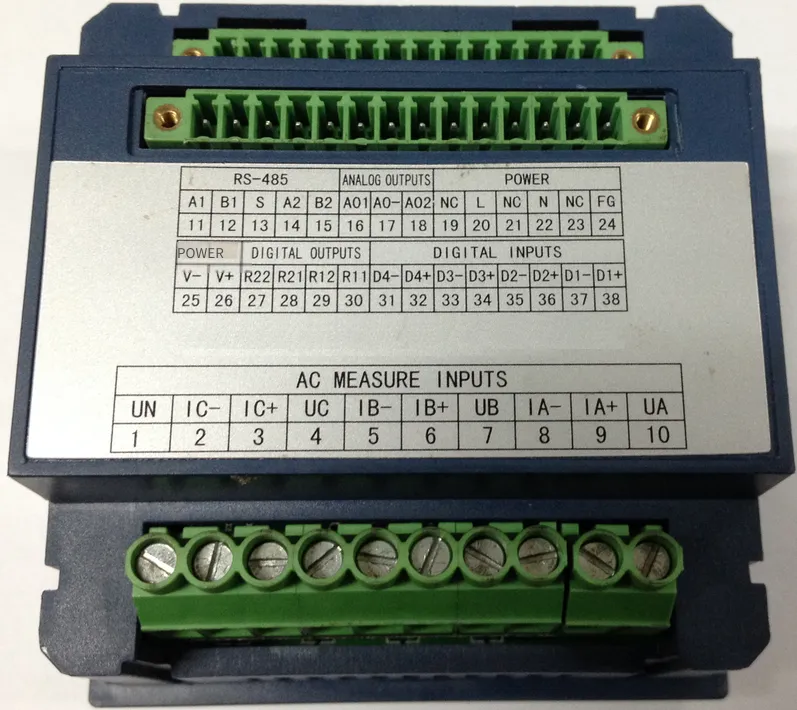

★ Equipped with RS-485 communication interface (optical isolation), Modbus RTU communication protocol
★ 6-channel digital input for remote signaling, 2-channel relay output for remote control
★ All kinds of electrical quantity measurement values can be read in real-time through the communication interface, and the meter parameters can be set by the display unit and communication software





 Optional Configuration

☆ Extended display unit: Real-time display of measured electrical quantities, on-site setting of meter parameters

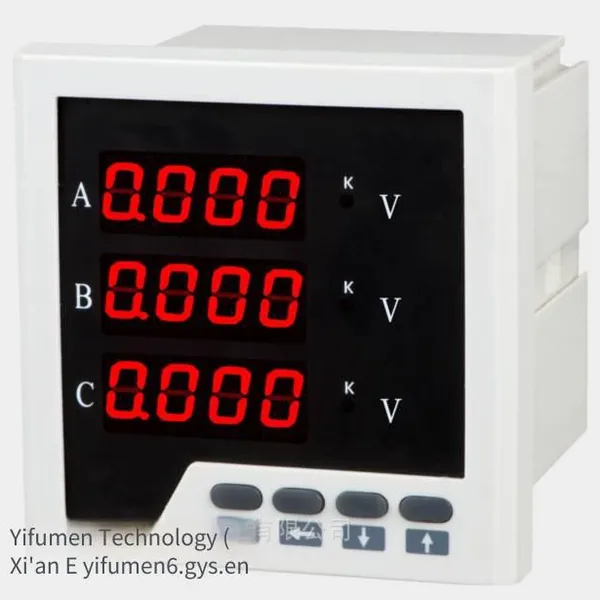

Digital LED comprehensive display unit PDM-810DS

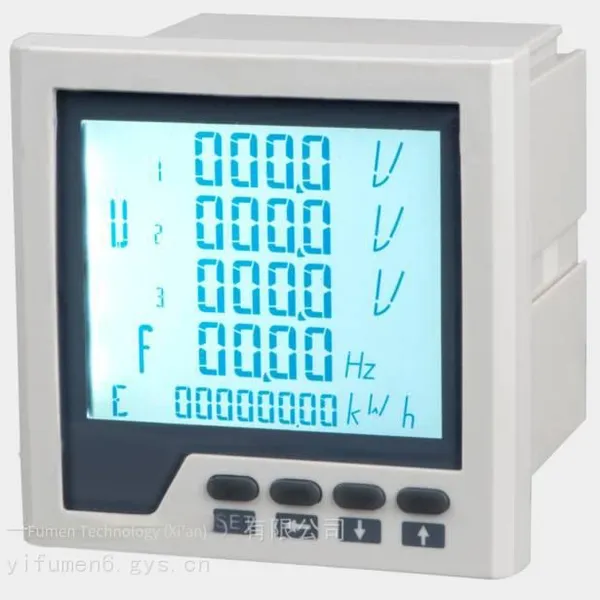

Digital LCD display unit PDM-810DSC
Three-button Chinese LCD display unit PDM-810DSC-3
☆ Expansion to dual RS-485 communication interfaces
☆ Expansion to 8-channel digital input for remote signaling
☆ Alarm output for device failure or power loss
☆ 1-channel programmable over-limit alarm output
☆ 1-channel programmable DC 4mA～20mA analog output
☆ Measurement of 31st harmonic components of current/voltage
☆ 1/2-channel Profibus-DP communication interface
☆ DeviceNet communication interface
☆ External input of zero-sequence/leakage current transformer for measuring zero-sequence/leakage current

 Yifumen Technology (Xi'an) Co., Ltd.

Note: Only one of DP/DP2, DE and dual RS-485 communication can be selected, and the harmonic component measurement function (optional for the LCD display unit)



Product Tags: PDM-810PLB-3 , PDM-810PLB , PDM-810PLB-3-DSC , Dandong Huatong , Low-voltage line protection and monitoring device
