Product Introduction:
The HZD-B-4 integrated vibration sensor transmitter is a fixed installation online vibration measurement device, mainly used for measuring vibration velocity values. The output of the vibration transmitter is a standard current of 4mA to 20mA, and the vibration value is proportional to the output. It can be directly input into a PLC/DCS to form a system capable of monitoring and protecting equipment such as centrifugal pumps, reciprocating compressors, centrifuges, cooling towers, industrial fans, motors, and gas turbines. This device adopts an integrated design of sensor and transmitter.
Technical Parameters:
Range:
Vibration amplitude: 0~200um, 0~500um, 0~800um, 0~1000um
Vibration velocity: 0~10.0mm/s, 0~20.0mm/s, 0~25.0mm/s, 0~50.0mm/s
1. Frequency response: 5~500 Hz
2. Natural frequency: 10Hz
3. Output current: 4~20mA
4. Output impedance: ≤500Ω
5. Operating voltage: DC 24V

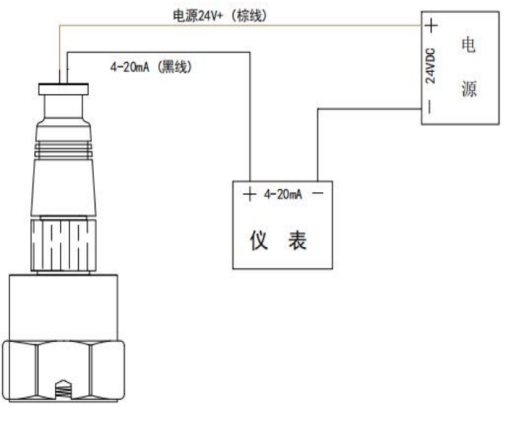

6. Wiring method: Two-wire system (DC 24V power and 4~20mA share 2 wires)
7. Maximum acceleration: 10g
8. Measurement direction: vertical or horizontal
9. Operating environment: Temperature -40℃~85℃, Relative humidity ≤90%
10. Dimensions: φ35×75 mm
11. Weight: approximately 350g
12. Mounting thread: M10×1
Installation:
Mounting position: Install vertically or horizontally at the vibration measurement point, and fix the transmitter with an M10×1.5 screw.
