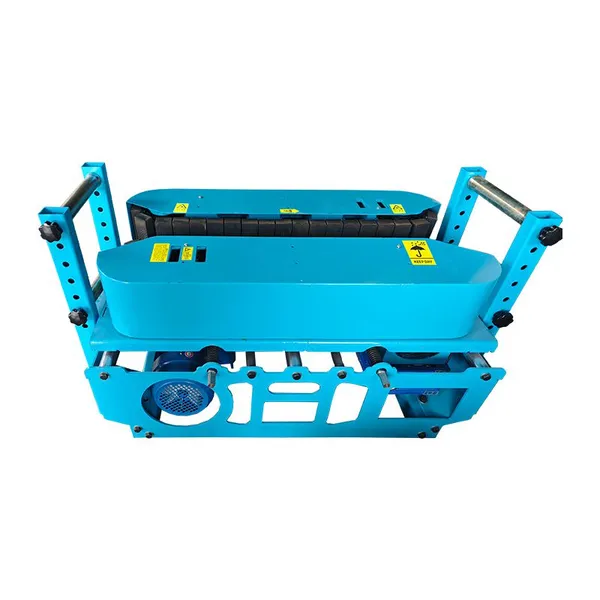

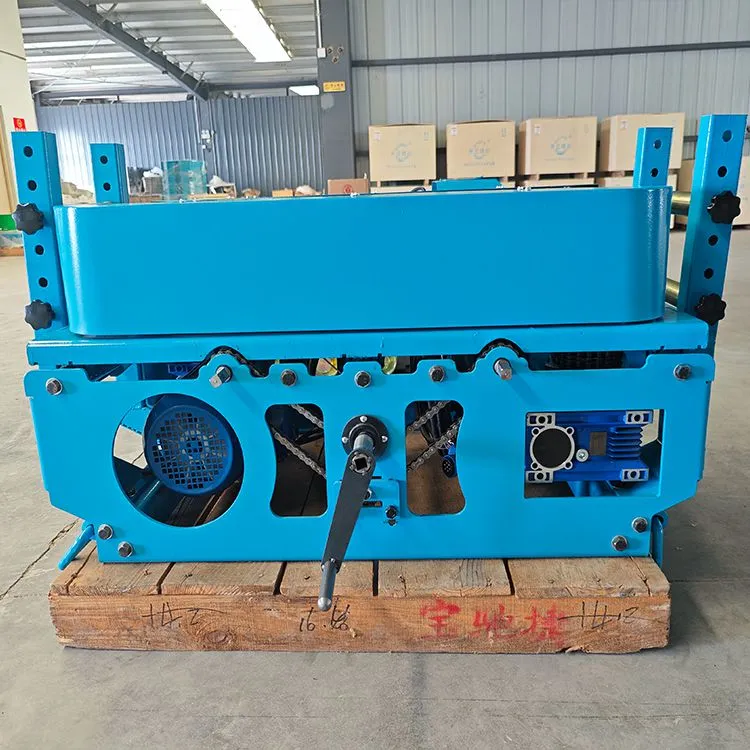

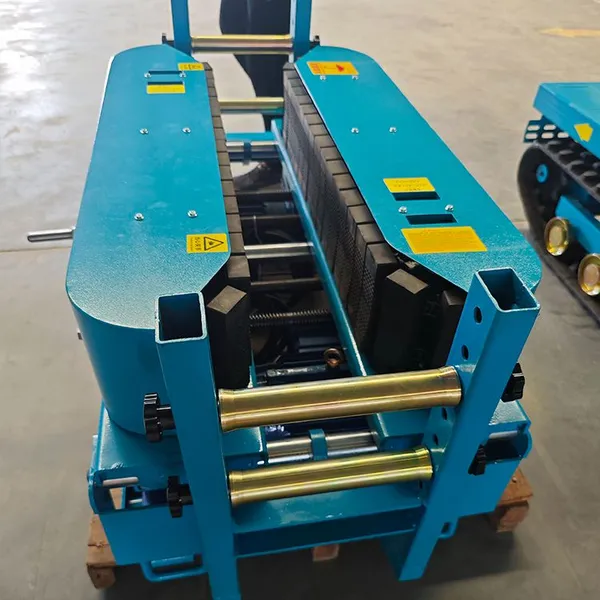

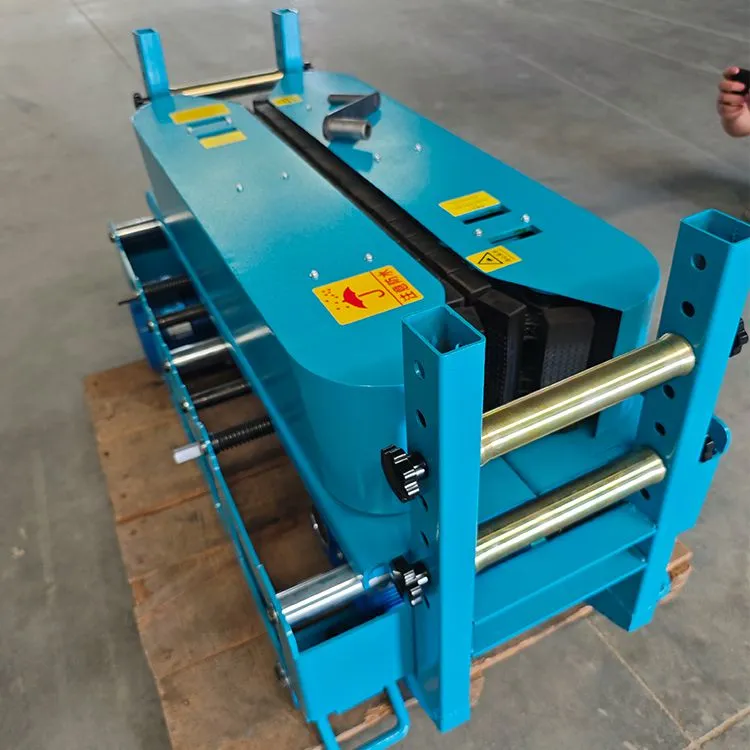

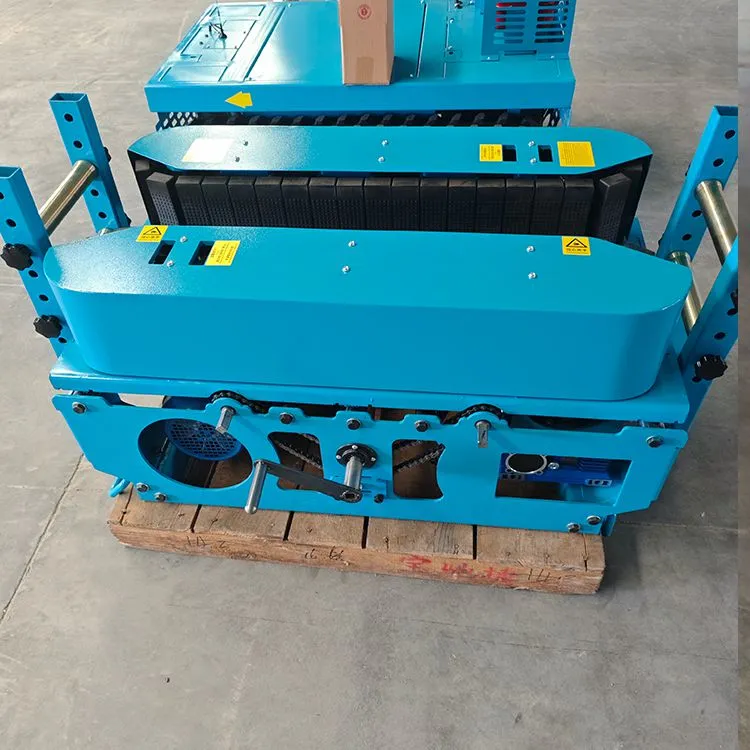

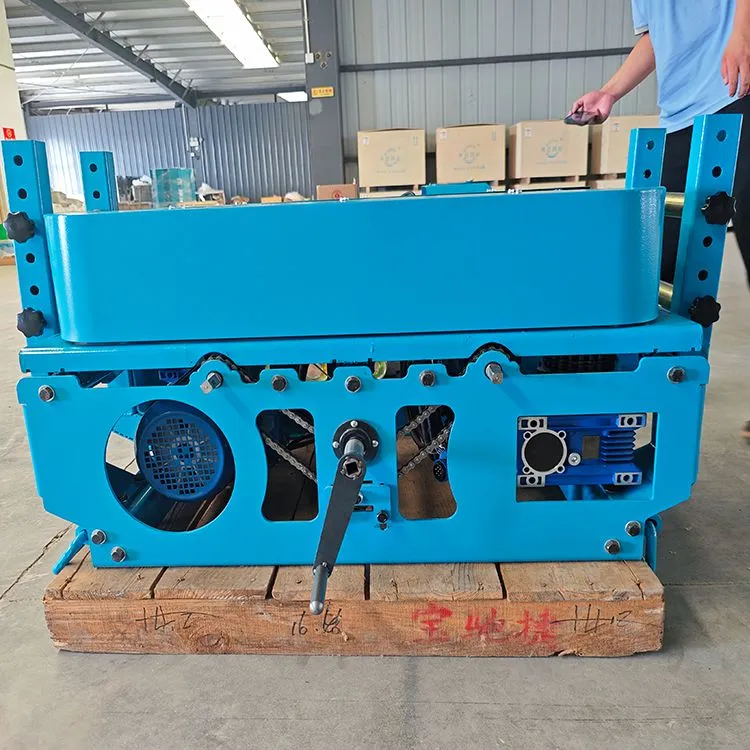

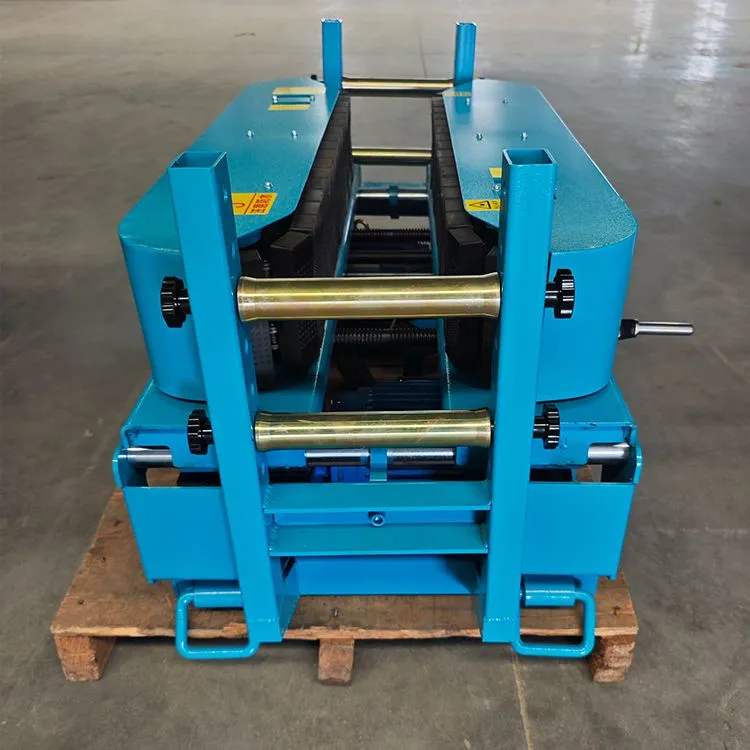

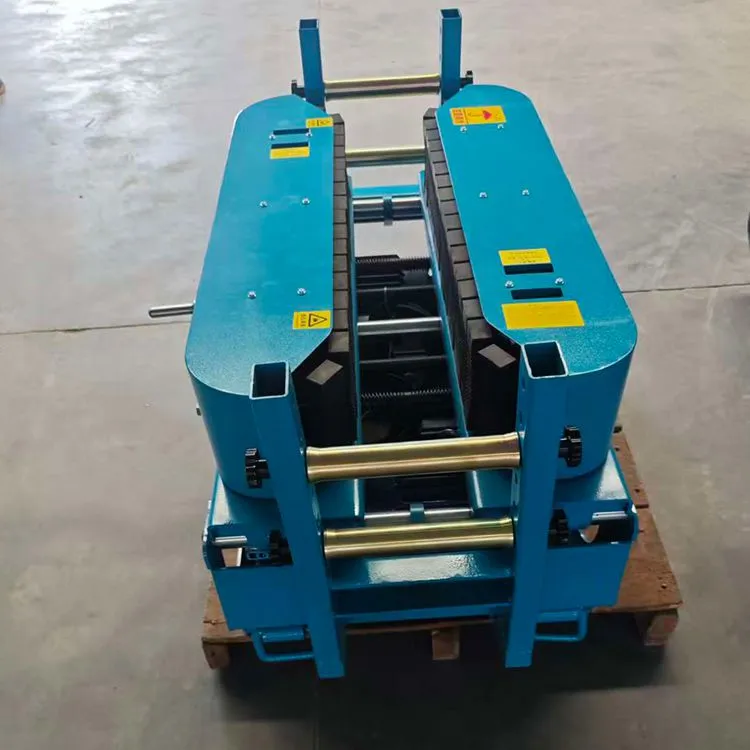

Headline: Custom Submarine Cable Conveyor (13KN) – High-Pull Cable Transport Machine by Changyun Technology
This custom submarine cable conveyor (also called cable transport machine) by Changyun Technology is designed for large-diameter cable laying (especially submarine cables). Equipped with dual pure copper motors, 4-gear + stepless speed regulation, and remote control, it provides stable, high-efficiency cable transport for construction, power, and marine engineering projects.
1. Basic Product Parameters
| Item | Specification |
|---|---|
| Model | Submarine Cable Conveyor (Custom Model) |
| Power Supply | AC380V (50Hz) |
| Motor Power | 1.5KW/2.2KW × 2 (Dual-Speed Motor) |
| Speed Regulation | 4 Gears + Stepless Speed |
| Control Mode | Panel Control + Remote Control |
| Max Pull Force | 13KN |
| Conveying Speed | 6~26m/min |
| Cable Diameter Range | 2~24cm |
| Overall Dimension | 121×62×65cm |
| Net Weight | 360kg |
2. Core Product Advantages
High Pull Force & Efficiency: 13KN max pull force (dual pure copper motors) + 6-26m/min adjustable speed – suitable for heavy submarine cable transport.
Flexible Speed Control: 4-gear + stepless speed regulation; one-key push/pull switch, start/stop at any time.
Dual Control Mode: Panel control + remote control – easy operation in different work scenarios.
Stable & Durable: Thickened wear-resistant rubber blocks (anti-slip) + low-noise operation; suitable for long-term heavy-duty use.
Multi-Unit Synchronization: Equipped with synchronized control module – supports multi-machine joint control for large-scale cable laying.
3. Application Scenarios
Submarine cable laying & transportation
Large-diameter power cable installation (2-24cm)
Construction site cable pulling projects
Marine engineering & power grid construction
