Product Description and Instruction Manual:

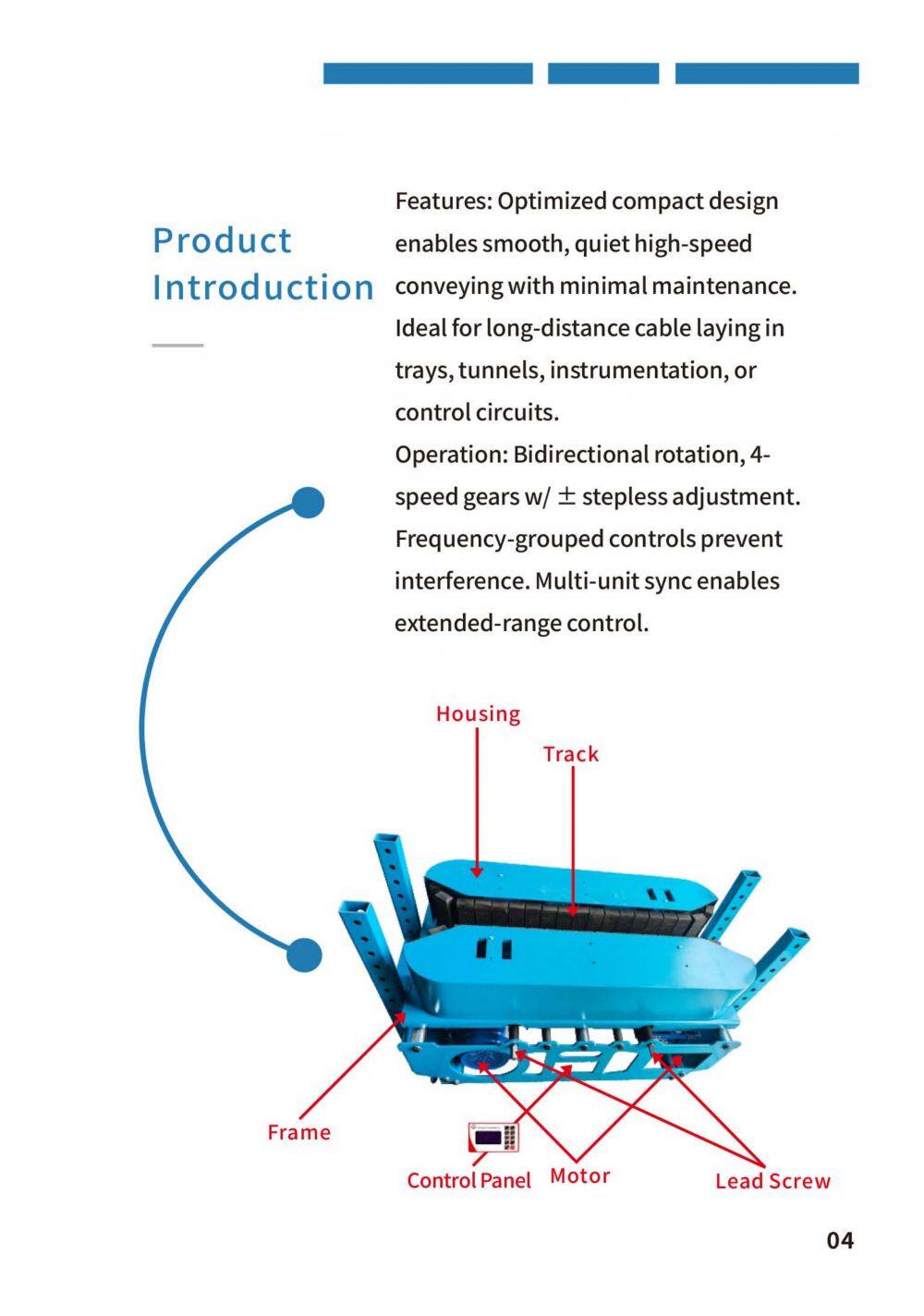

Product Overview:
The Submarine Cable Conveyor is a robust and versatile machine designed for the efficient handling and conveying of submarine cables. Equipped with dual copper-core motors, it delivers a maximum conveying force of 13KN, ensuring strong pulling power. The conveyor features a stepless speed control system with four gears, allowing for instant start/stop and forward/reverse toggle. With remote control via keypad, it offers enhanced convenience and ease of operation.

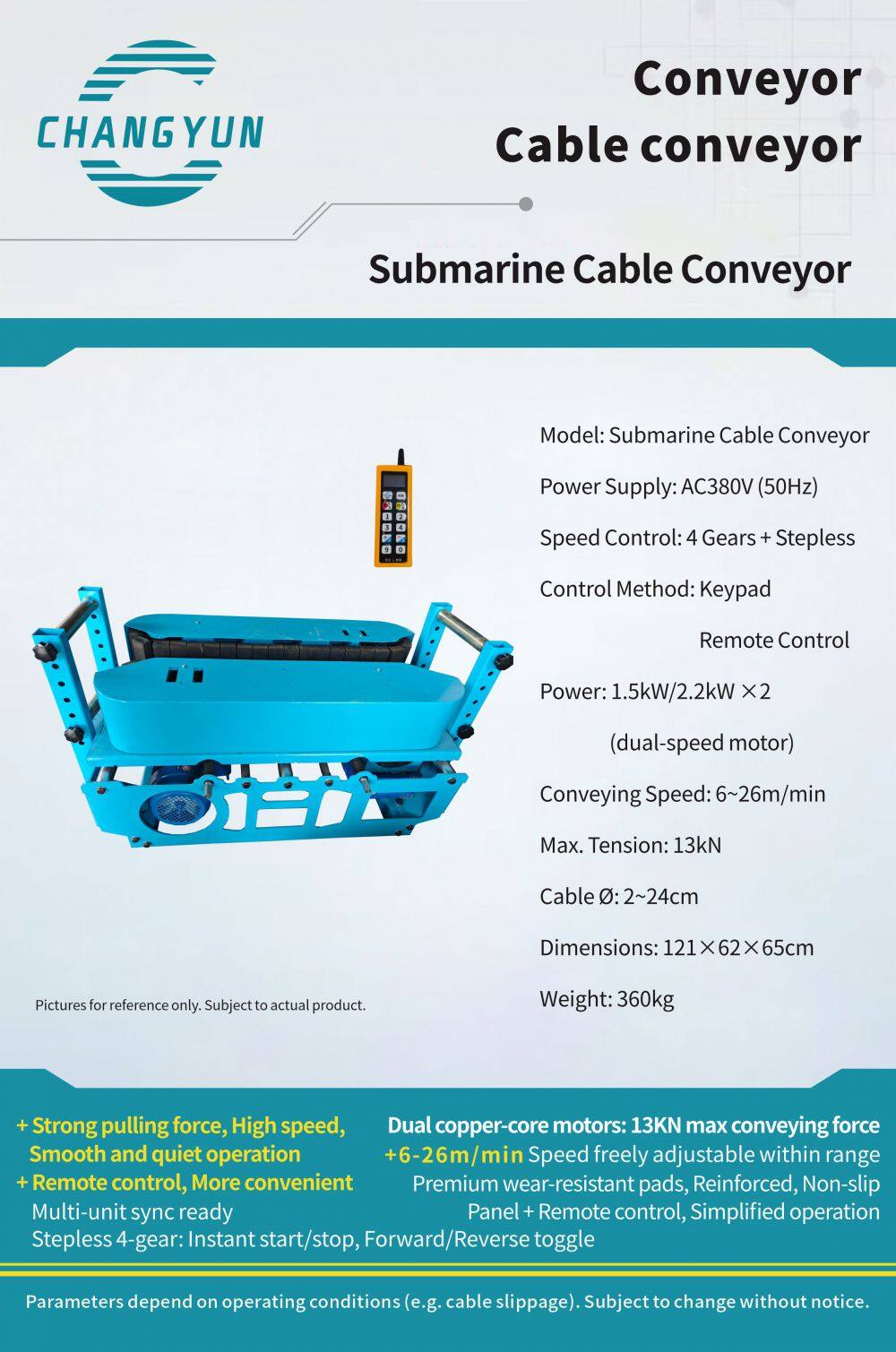

Technical Specifications:
Model: Submarine Cable Conveyor
Power Supply: AC380V (50Hz)
Speed Control: 4 Gears + Stepless
Control Method: Keypad Remote Control
Power: 1.5kW / 2.2kW × 2 (Dual-speed motor)
Conveying Speed: 6~26m/min (Freely adjustable within range)
Max. Tension: 13kN
Cable Diameter Range: Ø2~24cm
Dimensions: 121×62×65cm
Weight: 360kg

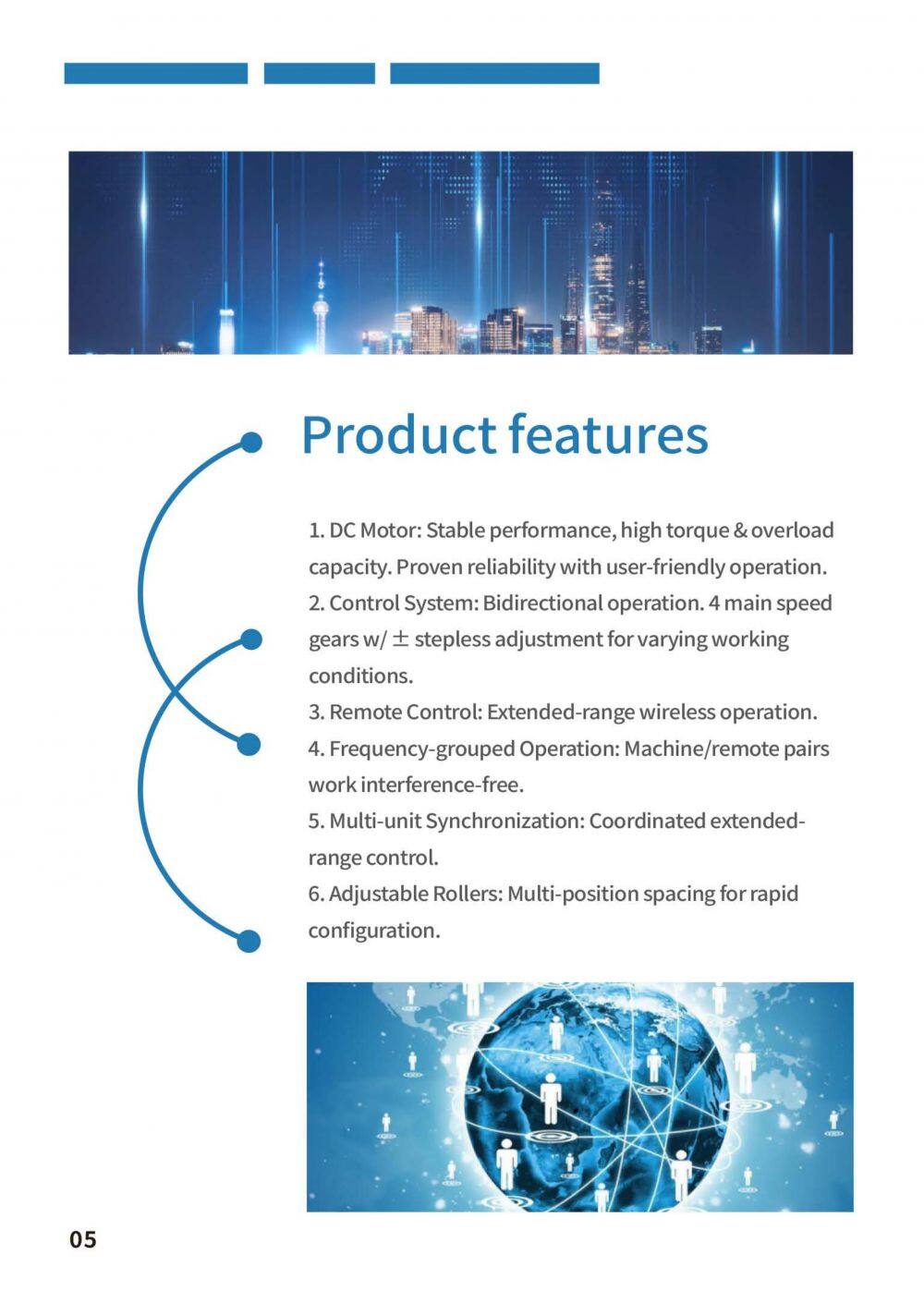

Key Features:
Strong Pulling Force: Dual copper-core motors provide up to 13KN of conveying force.
High Speed and Adjustability: Conveying speed can be adjusted freely between 6~26m/min.
Remote Control: Keypad remote control for convenient operation from a distance.
Smooth and Quiet Operation: Designed for minimal noise and vibration during use.

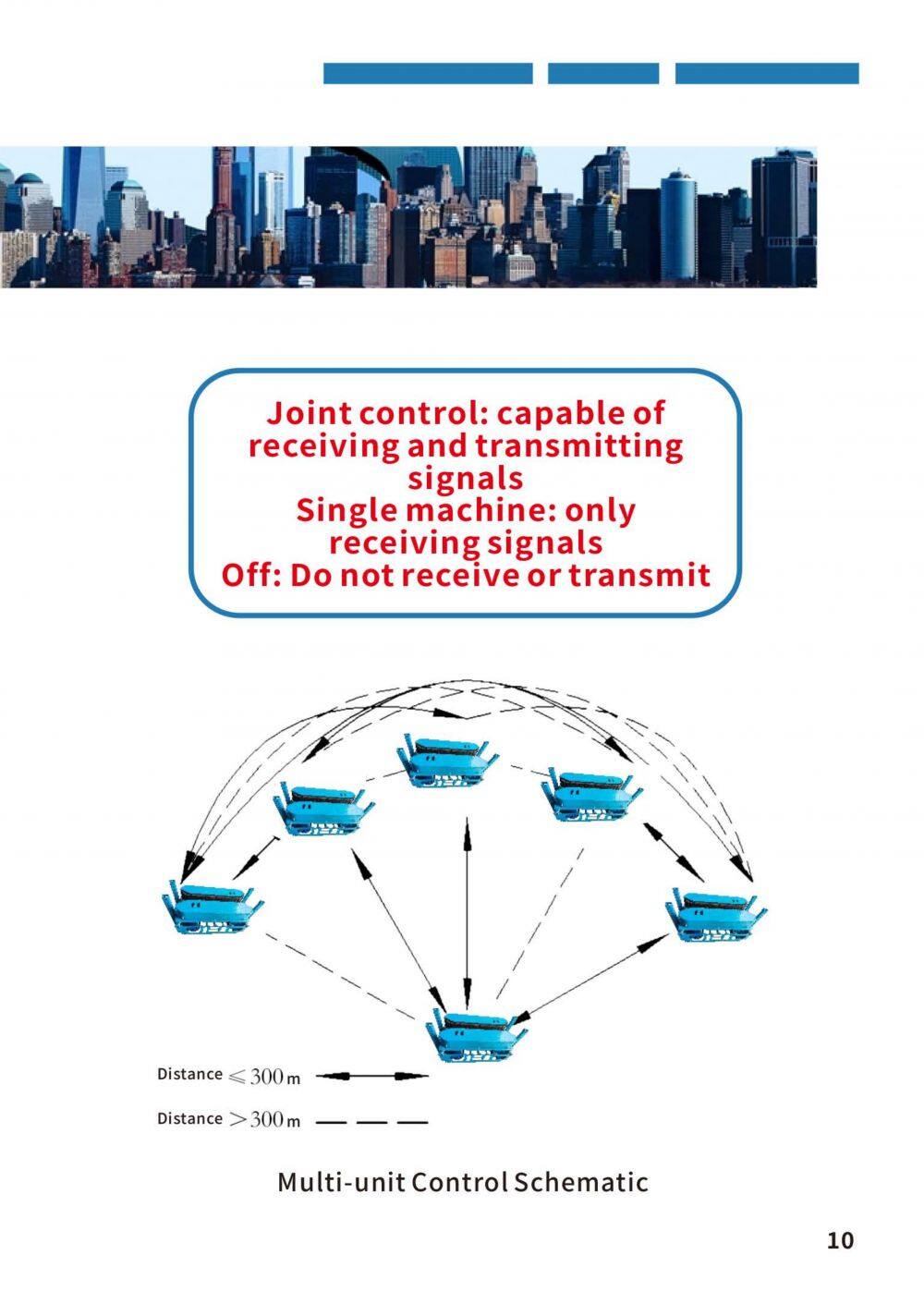

Multi-unit Sync Ready: Can be synchronized with multiple units for larger projects.
Premium Wear-resistant Pads: Reinforced, non-slip pads ensure durability and reliable traction.
Operating Instructions:
Setup:
Place the conveyor on a stable surface near the submarine cable deployment area.
Connect the power supply to AC380V (50Hz).
Ensure the cable diameter is within the specified range (Ø2~24cm).
Operation:
Use the keypad remote control to power on the conveyor.
Select the desired gear and adjust the conveying speed using the stepless control.
Engage forward or reverse rotation as needed for cable deployment or retrieval.
Monitor the cable conveying process to ensure smooth operation.
Shutdown:
Use the remote control to stop the conveyor.
Disconnect the power supply.
Remove any remaining cable and clean the conveyor.
Safety Precautions:
Always wear appropriate personal protective equipment (PPE) during operation.
Ensure the cable is properly aligned and within the specified diameter range to prevent damage.
Keep hands and loose clothing away from moving parts.
Regularly inspect the conveyor for wear and tear, and perform maintenance as needed.
Maintenance Guidelines:
Regularly check and replace wear-resistant pads if worn.
Clean the conveyor after each use to prevent debris buildup.
Inspect power cables and connections for damage.
Store the conveyor in a dry, protected area when not in use.
