Product Description and Instruction Manual:
Product Overview:

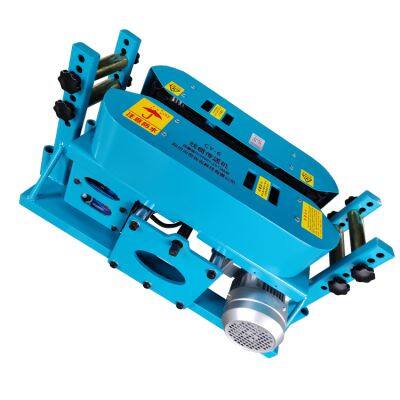

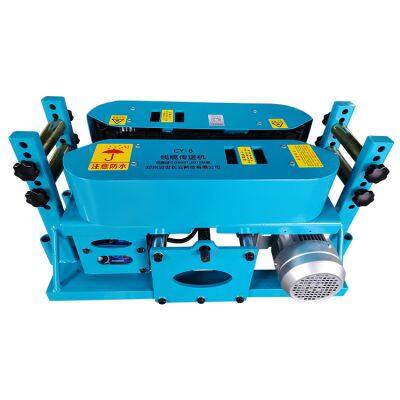

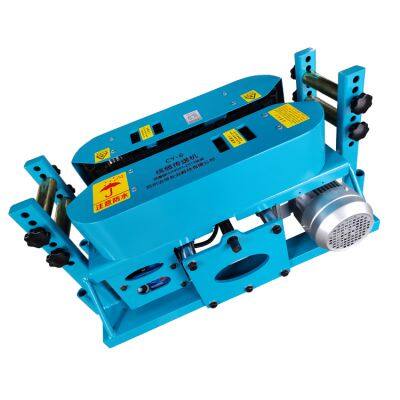

The CY-6 Conveyor Cable Conveyor is a compact and lightweight machine designed for efficient cable transportation. With a conveying speed of 12m/min and a maximum pulling force of 4500N, this device is ideal for fitting into cable trays and tight spaces. Its simplified operation and wear-resistant, reinforced, non-slip pads ensure reliable performance in various environments.

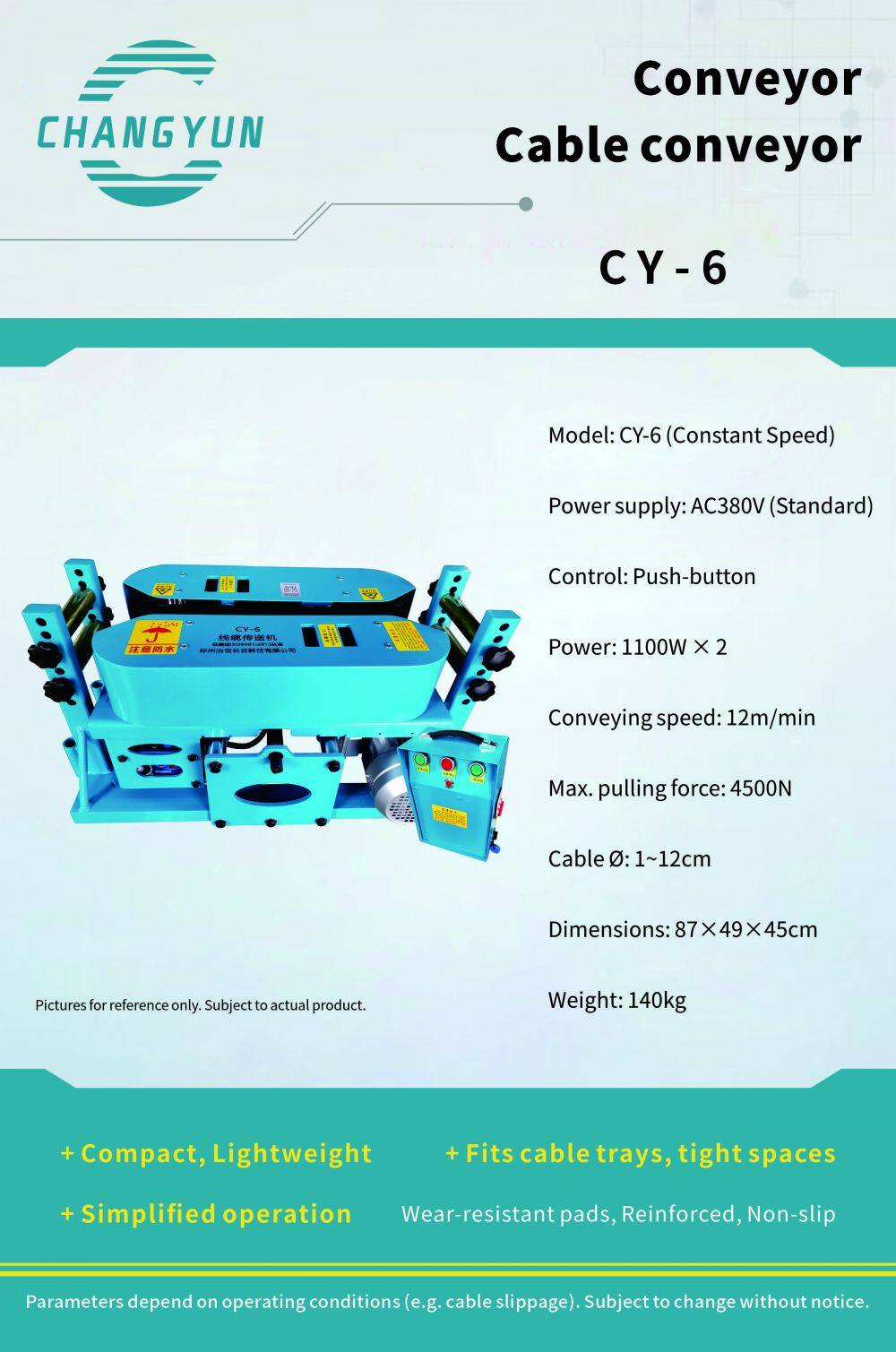

Technical Specifications:
Model: CY-6 (Constant Speed)
Power Supply: AC380V (Standard)

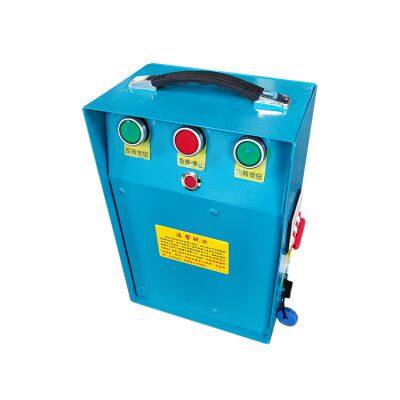

Control: Push-button
Power: 1100W × 2
Conveying Speed: 12m/min
Max. Pulling Force: 4500N
Cable Diameter Range: Ø1~12cm
Dimensions: 87×49×45cm
Weight: 140kg
Key Features:
Compact and Lightweight: Easy to transport and maneuver in confined spaces.
Simplified Operation: Push-button control for straightforward use.
Fits Cable Trays and Tight Spaces: Designed to operate effectively in restricted areas.
Wear-Resistant Pads: Reinforced, non-slip pads ensure durability and reliable traction.
Operating Instructions:
Pre-Operation Setup:
Place the conveyor in the desired location, ensuring stability.
Connect the power supply and check all connections.
Adjust the cable guides according to the cable diameter.
Starting the Conveyor:
Press the start button to initiate the conveying process.
Gradually feed the cable into the conveyor, ensuring it is properly aligned.
During Operation:
Monitor the cable feeding process to prevent jams or misalignment.
Ensure the cable moves smoothly at the set conveying speed.
Stopping the Conveyor:
Press the stop button to halt the conveying process.
Disconnect the power supply.
Remove any remaining cable and clean the conveyor as needed.
Safety Precautions:
Always disconnect the power supply before performing maintenance or adjustments.
Wear appropriate personal protective equipment (PPE) during operation.
Ensure the cable diameter is within the specified range to prevent equipment damage.
Keep hands and loose clothing away from moving parts.
Maintenance Guidelines:
Regularly inspect the wear-resistant pads and replace them if worn.
Clean the conveyor after each use to prevent the buildup of debris.
Check the power cables and connections for any signs of damage.
Store the conveyor in a dry, protected area when not in use.
