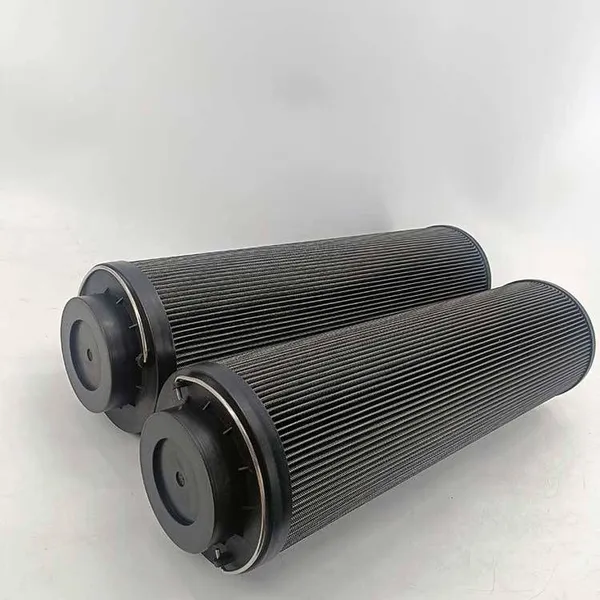

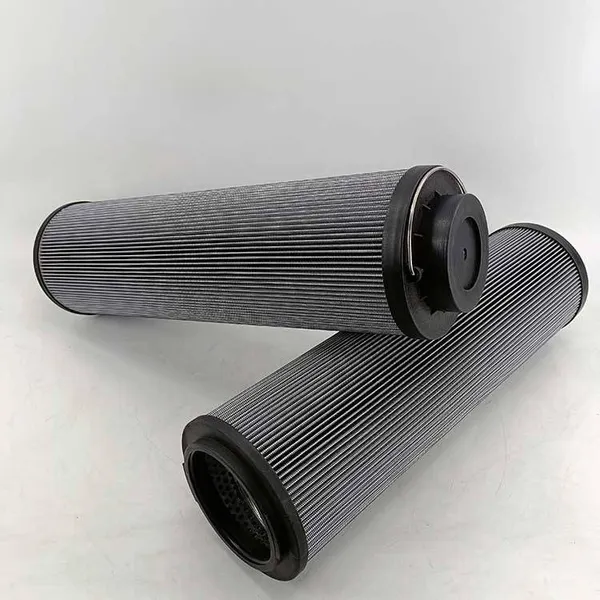

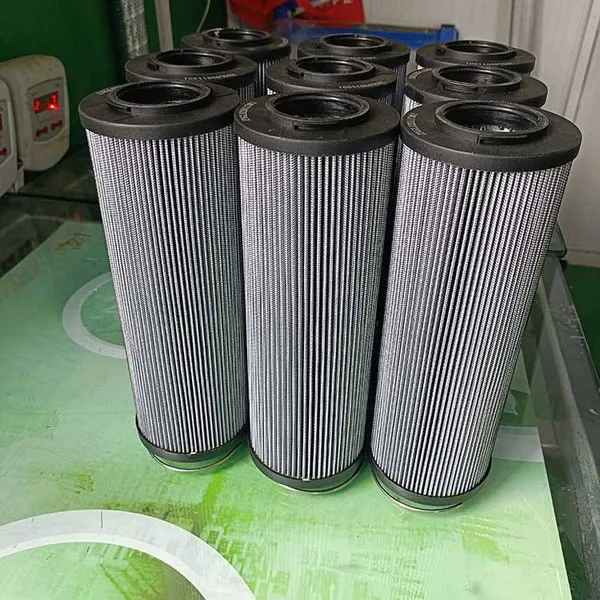

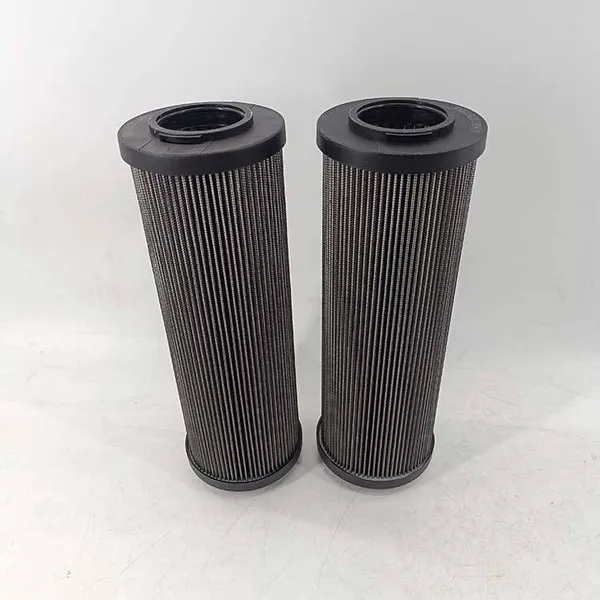

ZNGL01010401 Fan Oil Station Double-barrel Filter Element, produced by Henan Jiashuo Environmental Protection Technology Co., Ltd.
The ZNGL01010401 coal mill filter element is a pleated filter element made of imported glass fiber. It has the characteristics of high filtration accuracy, strong oil passing capacity, large dirt holding capacity, small initial pressure loss, and strong impurity removal ability. The purpose of the ZNGL01010401 coal mill lubricating oil filter element in the hydraulic system is mainly to filter out pollutants such as metal powder generated by the wear of various components in the system and rubber impurities from seals, so as to keep the oil flowing back into the oil tank clean, which is beneficial to the recycling of the oil. At the same time, it also ensures the normal operation of the system and extends the service life of the equipment. Technical conditions of the ZNGL01010401 coal mill lubricating oil filter element: Working pressure difference: 0.6MPA; Working temperature: -30℃~+110℃; Filtration accuracy: 10μm; Working pressure: 21bar~210bar; Working medium: general hydraulic oil, phosphate ester hydraulic oil, emulsion, water-glycol. Xinxiang Huayu Filter Co., Ltd. produces and sells various oil filter elements, air filter elements, water filter elements, air compressor three filters, imported replacement filter elements, sintered filter elements, acid removal filter elements, filter bags, oil purifiers, Y-type filters, basket filters, cyclone sand separators, cyclone dust collectors, self-cleaning filters, security filters, multi-media filters, shallow sand filters, bag filters, power plant water vapor sampling devices and accessories, gas-liquid separators, dust removal equipment and water treatment equipment and other products. It provides pre-sales technical consultation, on-sale installation and commissioning, and after-sales technical training for customers. It is a comprehensive enterprise integrating R & D, production, sales and service.
Technical Parameters
Filtration accuracy: 5μm
Nominal flow rate: 160L/min
Nominal pressure: 1.6MPA (or 30bar)
Filtration medium: BH-water-glycol General hydraulic oil, phosphate ester hydraulic oil, etc.
Filter material: Glass fiber
Filter element function: Oil impurity removal
Filter element form: Filter layer pleated (glass fiber pleated or metal mesh pleated)
Warm reminder:
The filter elements in the filter need to be replaced regularly to ensure the filtration effect of the filter.
There may be a mismatch between the marked price and the picture in the text. If you want to know the selection parameters and quotation scheme, please contact me by phone. ！
Henan Jiashuo Environmental Protection Technology Co., Ltd. Direct supply from the manufacturer with complete models. Welcome to inquire!
