Home > Electrical & Electronics > Sensor > Pressure Sensor > Japanese Metrol Csj055a-l Contact Sensor, Supplied by Hirayama Trading

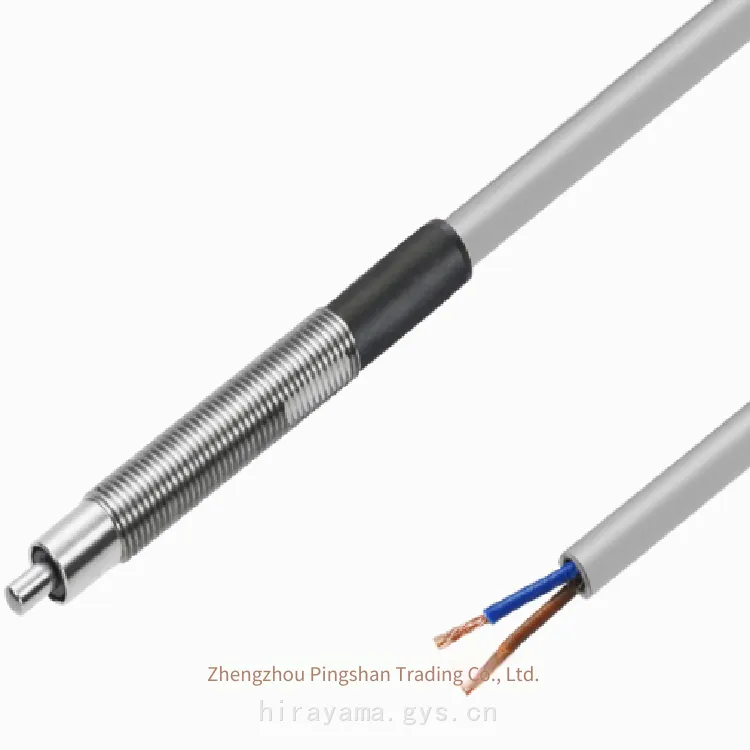

Japanese Metrol Csj055a-l Contact Sensor, Supplied by Hirayama Trading
US$ 61.54
1 - 9 Piece
US$ 60
≥10 Piece
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Zhengzhou, Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Imported Urawa Electric Grinder Um-jet-2 Mini Angle GrinderNegotiableMOQ: 0 Unit -
Trusco Manual-cuttable and Writable Cloth Tape Gnt-50 for Packaging Heavy ItemsNegotiableMOQ: 0 Roll
-
Trusco Lightweight and Stable Resin Trolley Mpk780-bk-js With a Load Capacity of 200kg and BrakesNegotiableMOQ: 0
-
Trusco Lightweight and Stable Resin Trolley Mpk780-bk With a Load Capacity of 200kg for Handling OperationsNegotiableMOQ: 0
-
Hikasagiken J305 Floating Joint Imported From Japan, Supplied by Hirayama TradingUS$ 25.38 - 26.15MOQ: 1 Piece
Japanese Metrol Contact Sensor CSJ055A-L Supplied by Zhengzhou Pingshan Trading Co., Ltd.
Japanese Metrol Contact Sensor CSJ055A-L Supplied by Zhengzhou Pingshan Trading Co., Ltd.
Japanese Metrol Contact Sensor CSJ055A-L Supplied by Zhengzhou Pingshan Trading Co., Ltd.
| Contact Structure | Contact Type |
|---|---|
| Action Mode | A: NO |
| IP Specification · Protection Structure | IP65 |
| Presence of LED | With LED |
| Repeatability | 5μm |
| Hysteresis (mm) | 0 |
| Total Length | 42mm |
| Outer Diameter | M5×0.5 |
| Front End Shape | Arc Shape |
| Contact Head Shape | Shaft φ2 End Face SR1.5 |
| Stroke | 2.8mm |
| Pre-stroke | Approximately 0.3mm |
| Method | Straight Forward |
| Contact Force | 1N |
| Housing Material | SUS303 |
| Contact Material | SUS HRC50 |
| Bearing Type | Metal Bearing |
| Cable Type | Rubber Insulated Cable |
| Cable Details | Length 3m, Oil-resistant 2-core φ2.8, Tensile Strength 30N, Bending Radius R7 |
| Cable Direction | Cylindrical |
| Standard Accessories | 2 Nuts |
| Contact Precision Life | 10 million times |
| Operating Temperature Range | 0℃~80℃, No Freezing Allowed |
| Temperature Drift | No Temperature Drift Caused by Self-heating |
| Vibration | 10~55Hz, Full Amplitude 1.5 in X, Y, Z Directions |
