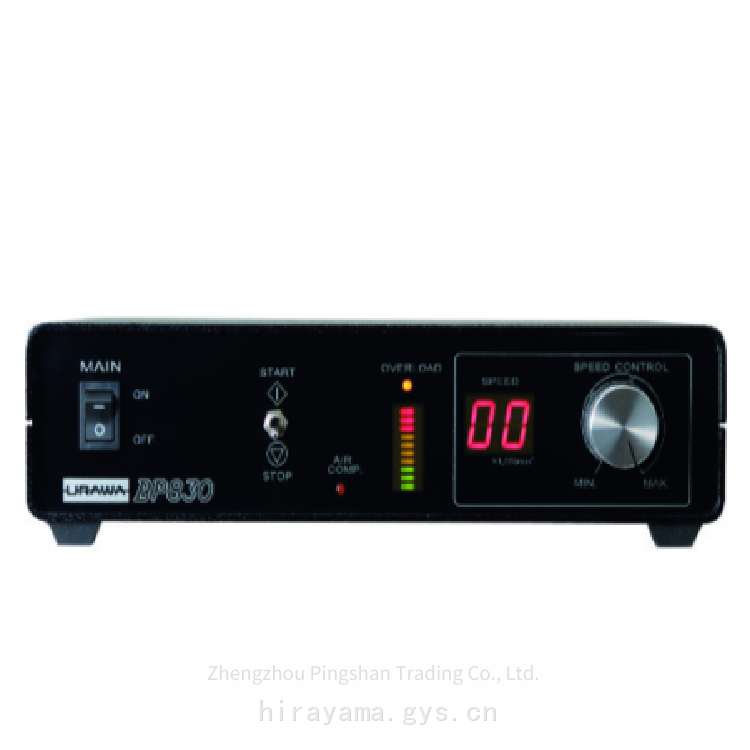

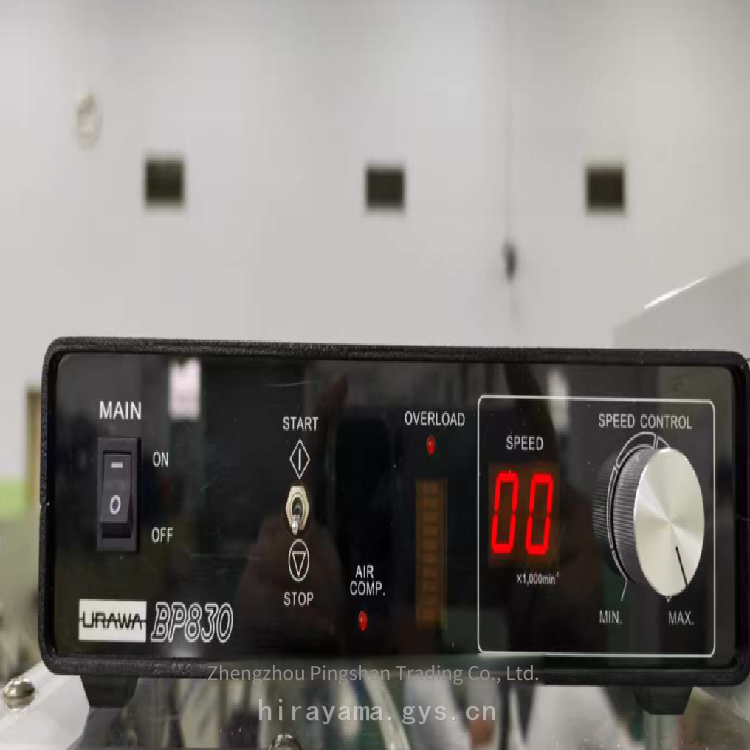

Controller BP830-90 for URAWA Puhua industrial spindle motors, small and lightweight brushless spindle motor
Controller BP830-90 for URAWA Puhua industrial spindle motors, small and lightweight brushless spindle motor
Controller BP830-90 for URAWA Puhua industrial spindle motors, small and lightweight brushless spindle motor
Small and lightweight DC brushless spindle motor
One-touch tool change
Ceramic bearings are adopted
Rotation speed display can show the rotation of the spindle motor.
The level meter shows the load status of the spindle motor in 10 levels.
External control terminals can control the movement/stop and rotation speed of the spindle motor.
Air pressure sensor (when using BA14) temporarily stops rotation when the compressed air pressure drops.

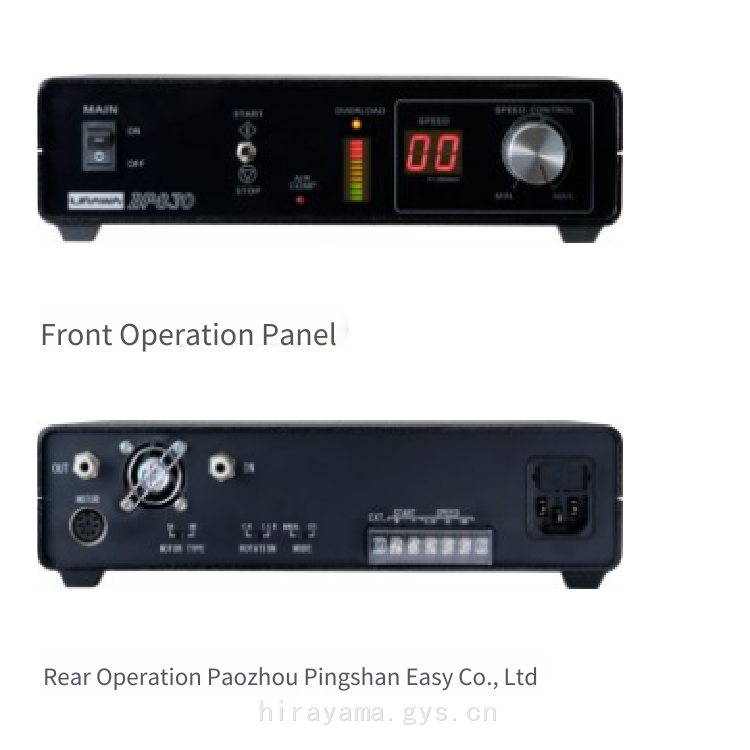

The operation panel for operators is placed in the front, and the operation panel for settings is placed on the back to prevent misoperation.
Product specifications
Specifications, specifications
Controller for spindle motors
Rotation speed (min⁻)¹): 40000
Rotation speed (min⁻)¹): 26000～40000
Power supply (V): 100
Rated output (W): 30
Width (mm): 260
Depth (mm): 206
Height (mm): 68
Material
-
Mass/Unit of mass
2.5ｋｇ
