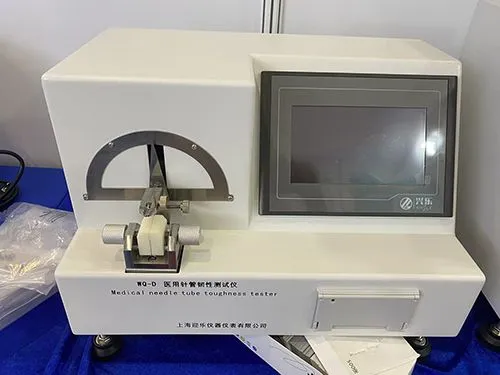

Medical Needle TubingRigidity Tester
Medical syringe ductility tester, also known as medical syringe ductility testing equipment, syringe bending ductility tester.
Medical Needle Tubing Toughness Testertechnicalindicators
OperatingInterface: SimplifiedChinese/English
Testing Standards:GB18457 "Stainless Steel Needle Tubes for theManufacture ofMedicalDevices"
GB15811 "Single-Use Sterile Hypodermic Needles"
ISO9626-2016 "Stainless Steel Needle Tubes for theManufacture ofMedicalDevices-Requirements and
TestMethods"
Display: 7-inchK600+ core/dot-matrix 65-color 800*480 resolution touchscreen; PLC control system
dynamically displaysload force values. Optional operatinginterface:Chinese/English/bilingual switching;
digital closed-loop control, AD sampling speed of 500KHz,internal resolution of 500,000; high-precision
clock chip, power-off storage; overload alarm and shutdownprotection. Touch controls: nominal size,wall
thickness, test cycles, pressurization, upward, downward, time, calibration.
ProgrammableController:PLC+ARM
Nominal Size:Customizable 0.18-3.4mm
Test Frequency: 0.5Hz
TouchControls:Wall Thickness-4 options: normalwall, thinwall, ultra-thinwall, extreme-thinwall.
Swing ArmBending Angle: 15°, 20°, 25° (3positions), switch-set bending angle, 4-digit high-brightness LCD
display.
BendingDistance: 6-95mm, accuracy:±0.1mm (10 specifications).
TestCycles: Freely adjustable.
PrintingMethod: Onboardmini dot-matrix printer.
TotalPower: 200W
Power Supply: AC90V-240V/50Hz
NetWeight: 10kg
Dimensions: 300×240×240 (mm)
Shanghai Yingle Instrument & Instrument Co., Ltd., based in Shanghai and selling nationwide, was established in 199 (originally Shanghai Xingle Telecommunications Equipment Co., Ltd.) and is China's first medical testing equipment manufacturer. As an industry enterprise that has been deeply engaged the research and development of mechanical technology for more than 30 years, Shanghai Yingle always puts product quality and compliance at the top priority. It has not only won high in the domestic market but has also broken through the recognition of the international market, consolidating its brand influence in the industry.
FAQ
Are you a manufacturer or trading company?
We are a Chinese manufacturer based in Shanghai, China, focusing on medical testing equipment for more than 30 years. We mainly produce medical needle testers, medical syringe testers, infusion set testers, suture needle testers, suture testers, Luer syringe connector comprehensive testers, and medical device flow testers.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 5-7 working days. For the customized one, 30 days or so.
