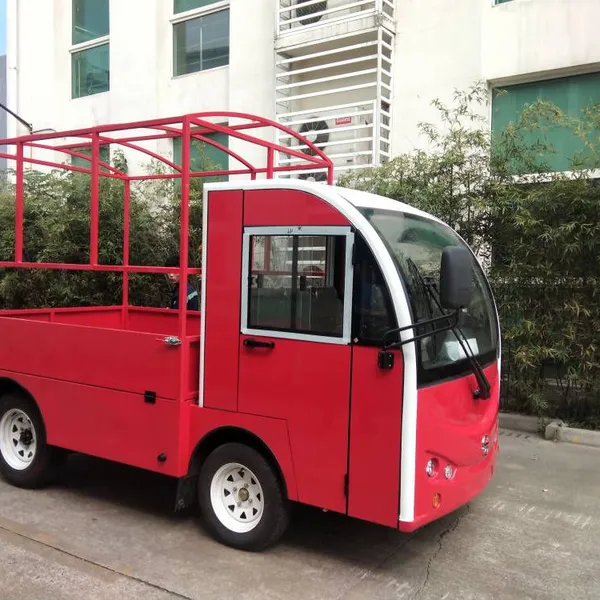

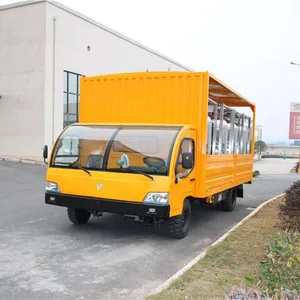

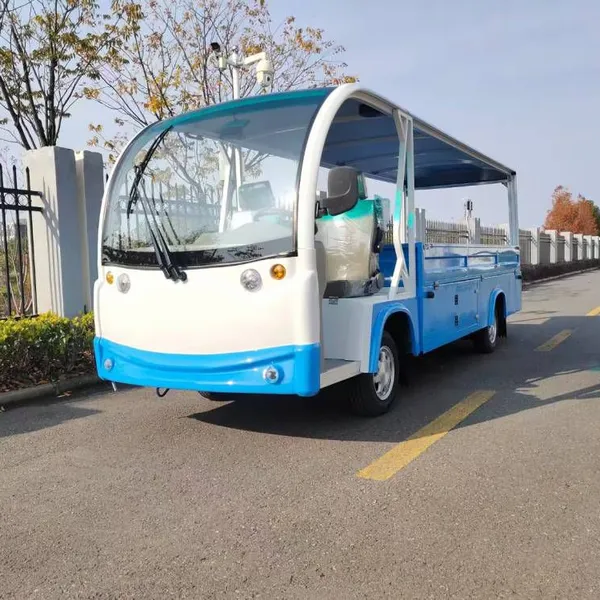

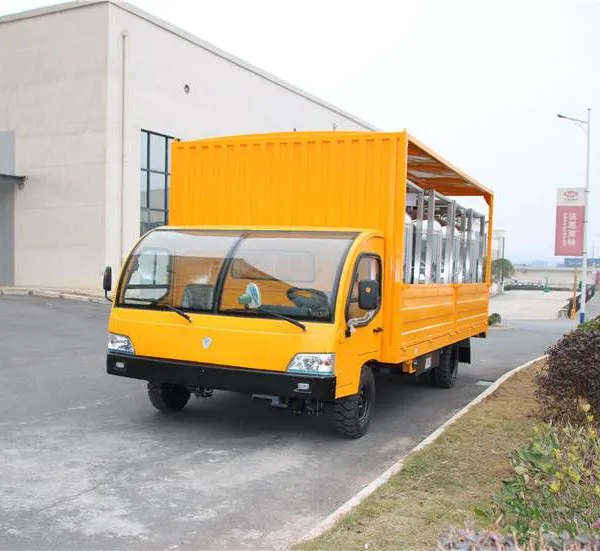

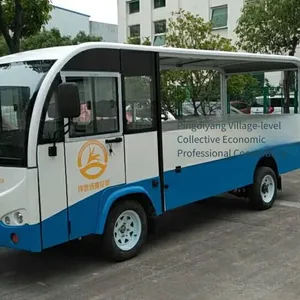

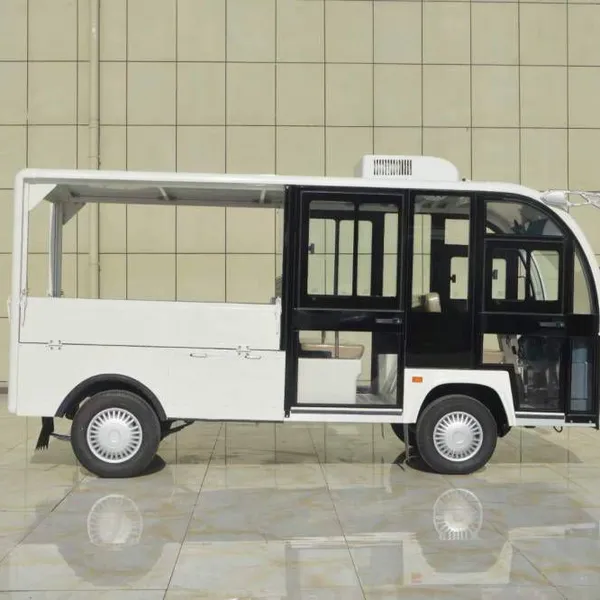

Help CenterElectric Trucks With Rain Shelters, With Load Capacities of 1 Ton, 2 Tons, 3 Tons, 4 Tons, and 5 Tons, for Use in Factory Areas. Electric Flatbed Trucks
Related Products
-
Manufacturer of Sightseeing Vehicles - Electric 14-seater Scenic Area Sightseeing Electric Vehicles, Original ProductsUS$ 9692.31MOQ: 1 -
12-seater Electric Sightseeing Vehicle - Direct Sales of First-hand Sources From Manufacturers of Sightseeing Electric Vehicles, Products From the SourceUS$ 9538.46MOQ: 1
-
Tourist Sightseeing Vehicle - 11-seater Enclosed Electric Sightseeing Vehicle, From the Original Manufacturer, Direct Sales of First-hand Electric Sightseeing VehiclesUS$ 9384.62MOQ: 1
-
Electric Mini Truck With a Load Capacity of 500 Kg, Electric Mini Truck for Sample Delivery Within the Factory AreaUS$ 6461.54MOQ: 1
-
Eight-seater Sightseeing Tour Vehicle - Electric Vehicle for Sightseeing in Scenic Spots, Factories, and ParksUS$ 8153.85MOQ: 1

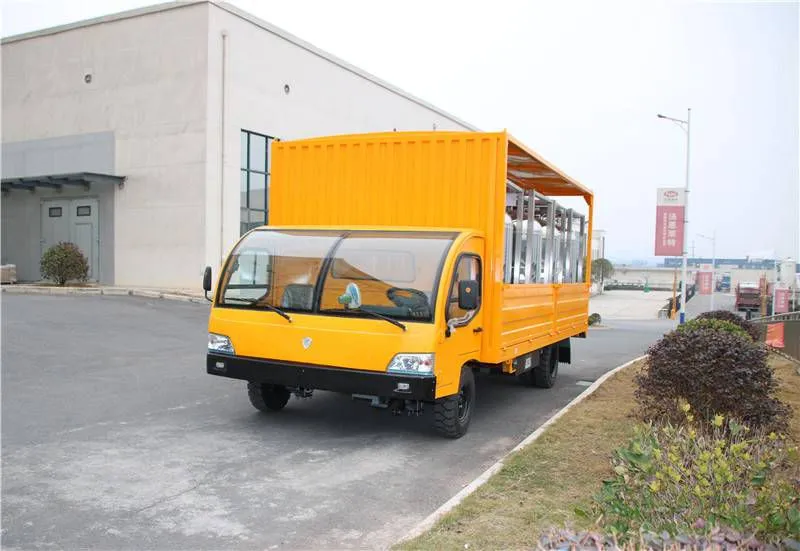

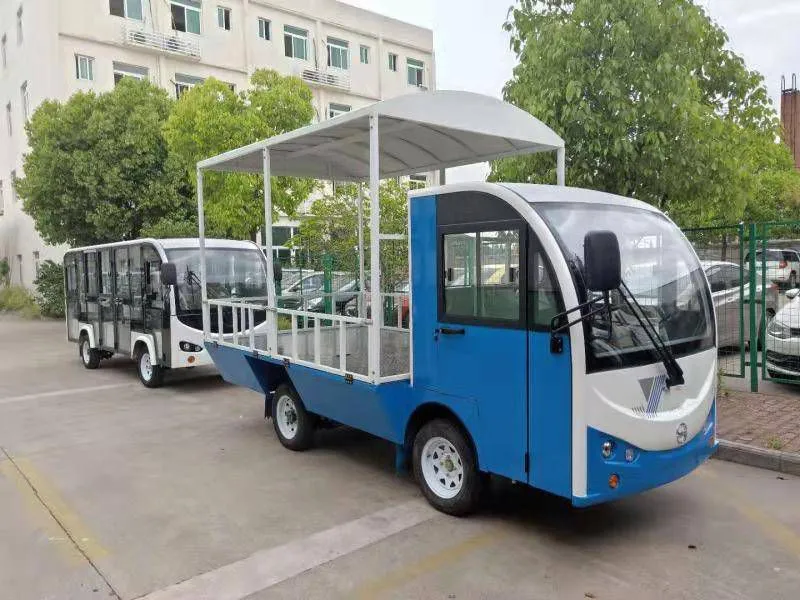

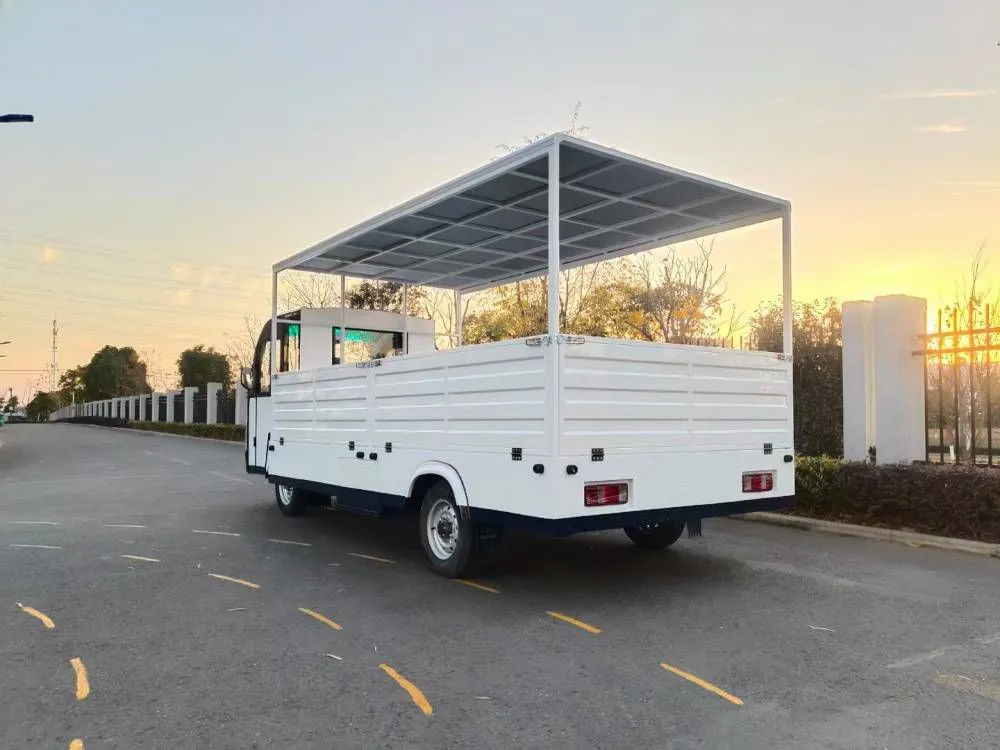

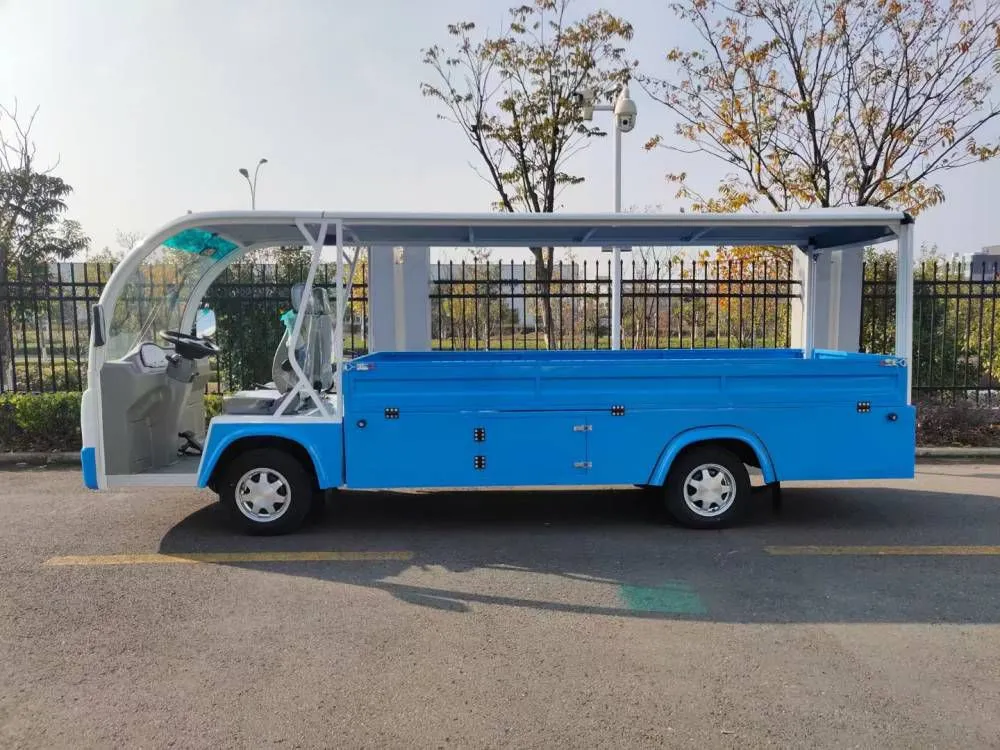

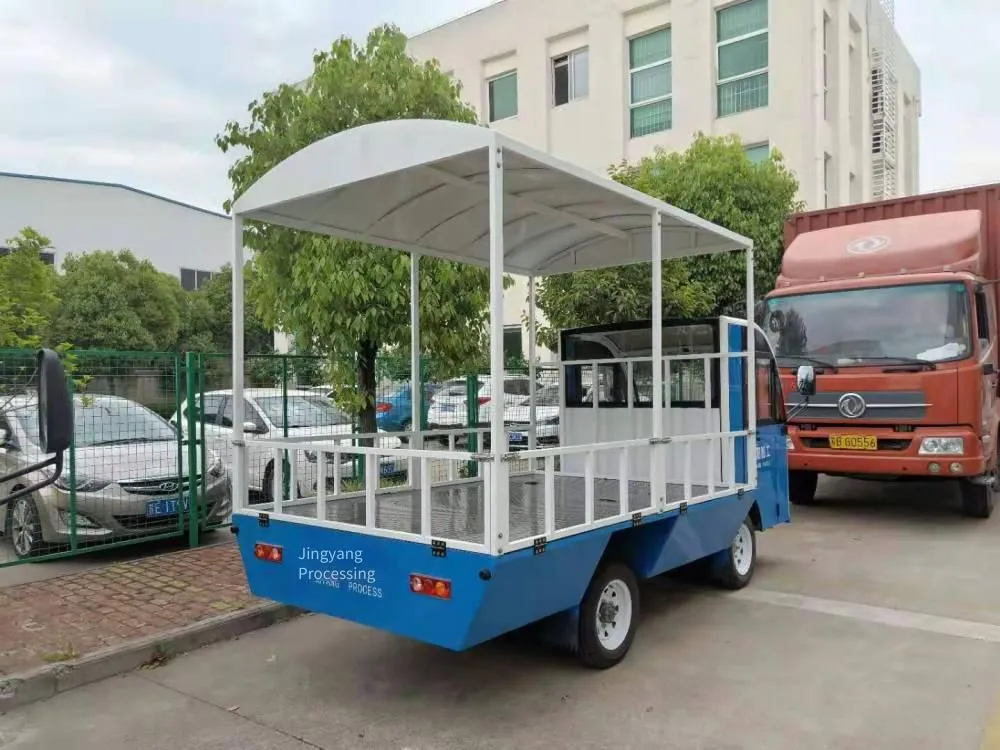

Electric trucks with sheds can carry loads of 1 ton, 3 tons, 5 tons, and 2 tons. These electric vehicles are used for hauling goods within the factory area. They include electric trucks, electric flatbed trucks, and electric trucks with roofs. Electric trucks are widely used in garment factories, electronic factories, and chemical factories.
(BD5 - 5.0T) Standard Configuration Table (2014 Edition)
Electrical System |
Electric Controller |
CURTIS |
||
Battery |
2V440AH per piece, 24 pieces for 48V |
|||
Motor |
6.3Kw DC motor |
|||
Charger |
Shien Power Frequency Intelligent Charger |
|||
Charging Time |
6 - 8 hours (when the discharge rate is 80%) |
|||
Technical Parameters |
Rated Passengers |
2 people |
||
Cargo Box Length * Width * Height |
4200×1600×830 |
Braking Distance |
≤3m |
|
Vehicle Kerb Mass |
2500kg |
Charging Input Voltage |
380v |
|
Vehicle Load |
5000kg |
Driving Speed |
18km/h |
|
Front and Rear Wheelbase |
1376/1370mm |
Endurance Mileage |
60km |
|
Wheelbase |
2750mm |
Gradient Ability |
1/10X12m |
|
Minimum Turning Radius |
4.5m |
Minimum Ground Clearance |
150mm |
|
Body Configuration |
Seat |
Seat (1 + 1, leather fabric + high - resilience PU) |
||
Vehicle Body |
High - strength section steel frame + steel railing + cab with wide - view safety windshield |
|||
Instrument Panel |
LCD combination instrument (including signals such as battery level, vehicle speed, mileage, lights, and low - voltage alarm) |
|||
Lights and Signals |
Combination front lights, side turn signals, LED combination rear lights, electric horn, and reverse buzzer |
|||
Switches |
Start key switch, combination light switch, forward - reverse switch, and electric fan switch |
|||
Steering Wheel |
Polyurethane foam steering wheel with front - rear adjustment function. |
The whole vehicle uses automotive-grade ordinary paint, which is color-matched by computer and sprayed with professional equipment. |
||
Chassis |
Power transmission system |
Continuously variable transmission system |
||
Steering system |
High transmission efficiency - Recirculating ball steering gear |
