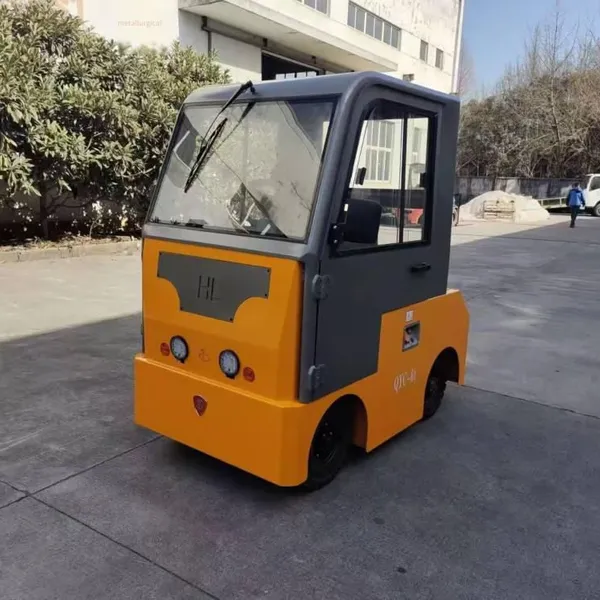

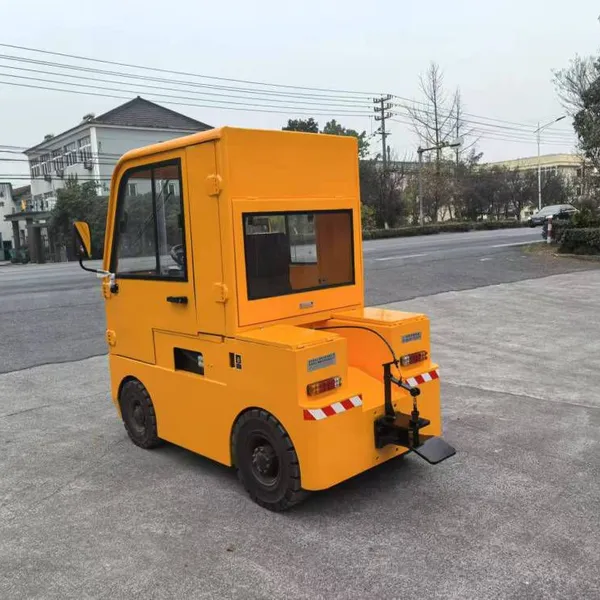

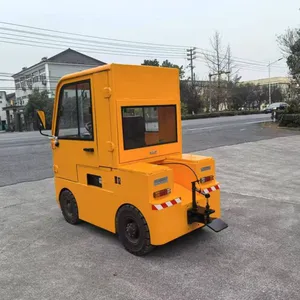

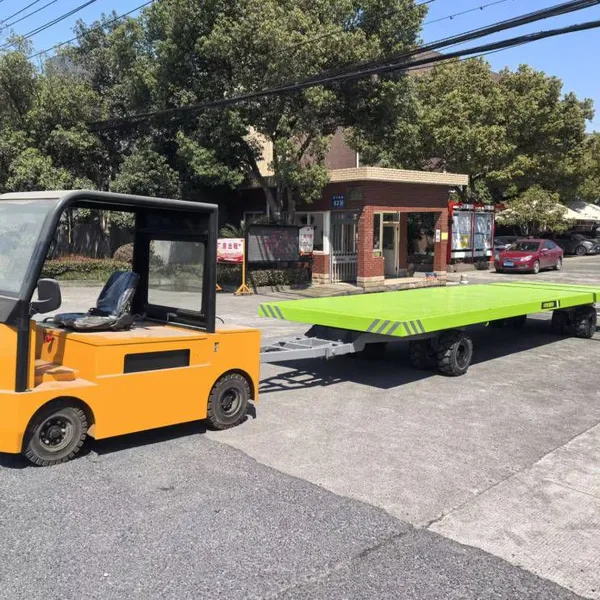

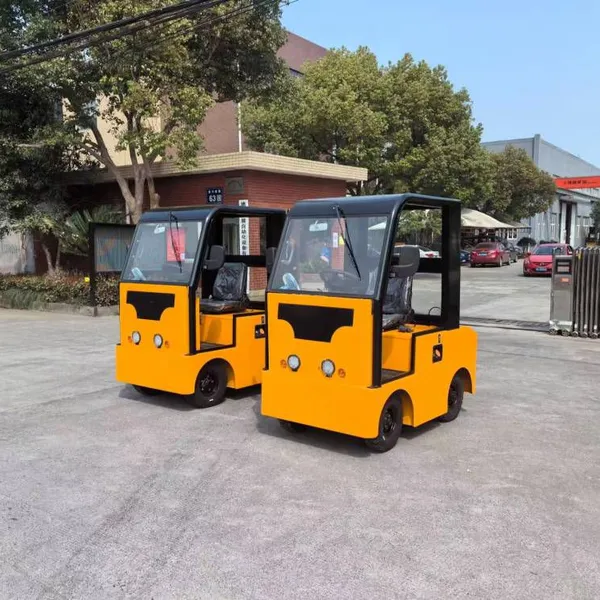

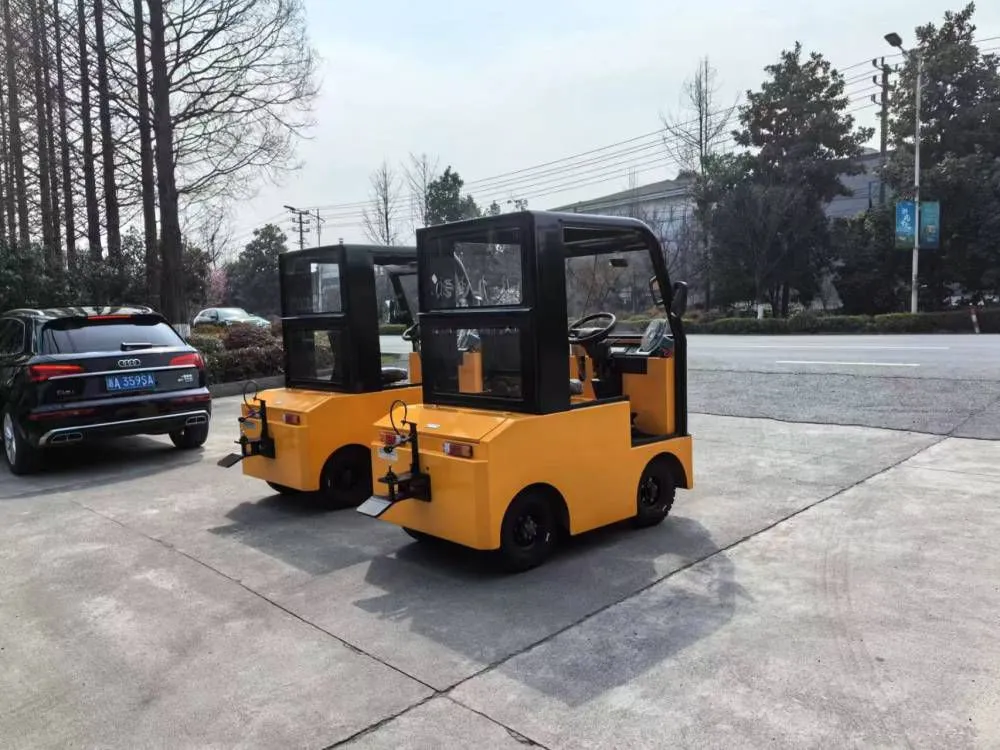

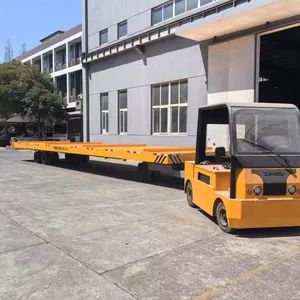

Help CenterElectric Tractor Heads for Docks, Factory Areas, and Supervision Areas
Related Products
-
11-seater Electric Sightseeing Bus With Doors | Fully Enclosed Sightseeing Vehicle | Enclosed Scenic Area Sightseeing BusUS$ 9076.92MOQ: 1 -
Newly Designed 11-seater Electric Vintage-style Sightseeing LimousineUS$ 8153.85MOQ: 1
-
Lk08 Electric Sightseeing Bus With Seats and Doors | Fully Enclosed 8-seater Sightseeing Bus | Electric Vehicle for Reception in Factories and WharvesUS$ 7384.62MOQ: 1
-
23-seater Enclosed Electric Sightseeing Bus | Electric and Fuel-powered Sightseeing Buses for Scenic Spots and CampusesUS$ 17230.77MOQ: 1
-
17-seater Electric Sightseeing Bus With Doors | Enclosed 17-seater Scenic Area Sightseeing Bus | Fully Enclosed Sightseeing Bus With Glass DoorsUS$ 10000MOQ: 1
5T Tractor Configuration Table
Electrical System |
Electronic Control |
AC Controller |
||
Battery |
2V250AH/piece, 24 pieces/48V |
|||
Motor |
XQ-5.0Kw AC Motor |
|||
Charger |
Portable Intelligent Charger |
|||
Charging Time |
6 - 8 hours (discharge rate: 80%) |
|||
Technical Parameters |
Rated Occupants |
1 person |
||
Dimensions |
2550*1180*1900 |
|||
Towing Hook Height |
450/550 |
Braking Distance |
≤3m |
|
Vehicle Kerb Mass |
≈1600kg |
Charging Input Voltage |
220v |
|
Towing Weight |
5000kg |
Driving Speed |
12km/h |
|
Front and Rear Wheelbase |
820/820mm |
Endurance Mileage |
40km |
|
Wheelbase |
1110mm |
Gradient |
5%X12m |
|
Minimum Turning Radius |
2.5m |
Minimum Ground Clearance |
100mm |
|
Body Configuration |
Seat |
Seat (leather fabric + high-resilience PU) |
||
Battery Box |
The battery is produced in Zibo, Shandong (Torch). |
|||
Driving Mode |
Sit-on type (can seat 1 person) |
|||
Instrument Panel |
Combined aluminum instrument (including power meter, ammeter, steering light signal) |
|||
Lights and Signals |
Combined front lights, side turn signals, LED combined rear lights, electric horn and reverse buzzer |
|||
Switches |
Start key switch, combined light switch, forward and reverse switch |
|||
Steering Wheel |
Polyurethane foam steering wheel |
|||
Paint |
The whole vehicle uses automotive-grade ordinary paint, computer color matching, and professional spraying equipment Plate |
Power transmission system |
Continuously variable transmission system. The reduction gearbox uses a low-noise reduction gearbox and an AC motor. |
|
Steering system |
Hydraulic steering system. |
|||
Rear axle |
Integral rear axle, fixedly installed on the frame. |
|||
Braking system |
Rear wheel hydraulic braking and parking brake device. |
|||
Tires |
500-8/2 in the front/2 in the rear |
