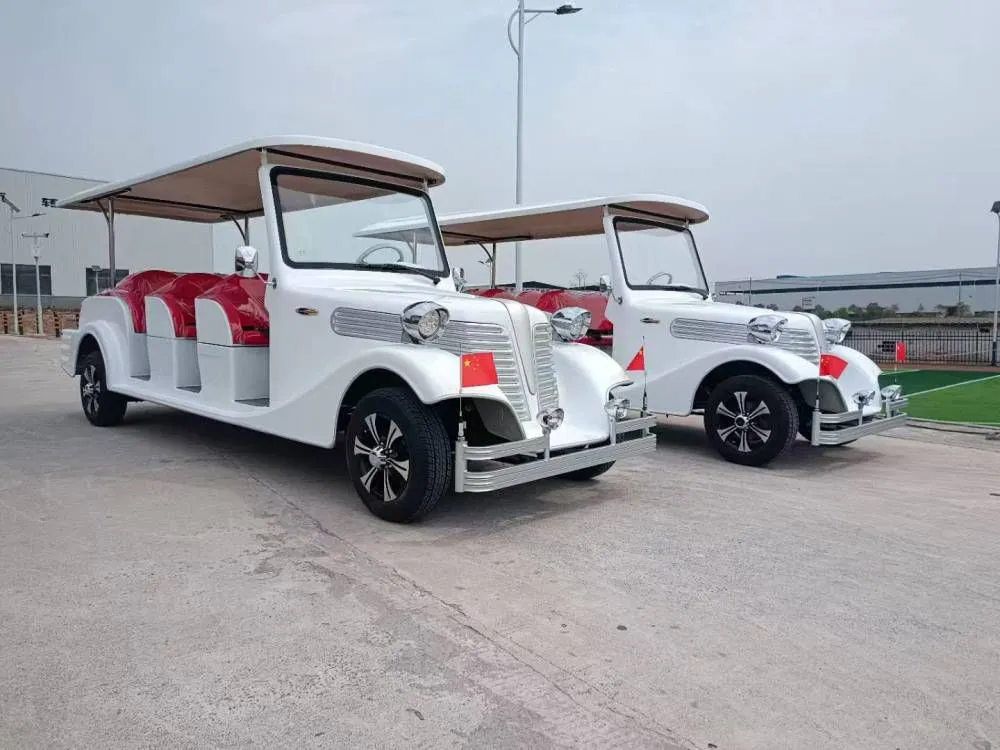

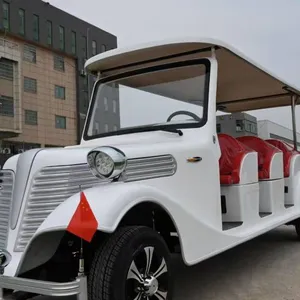

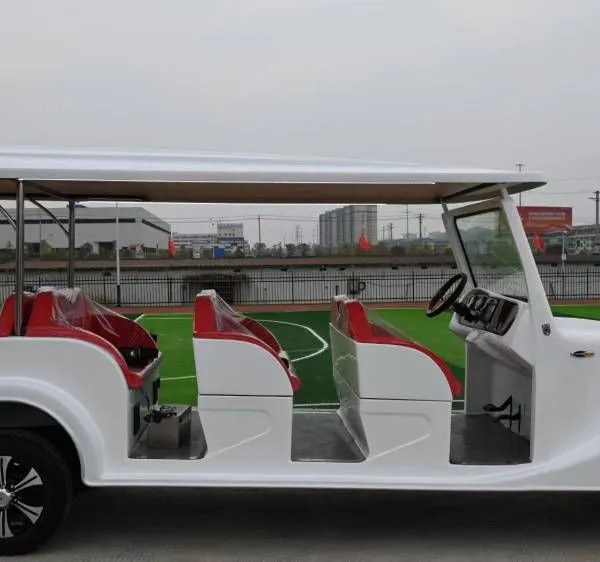

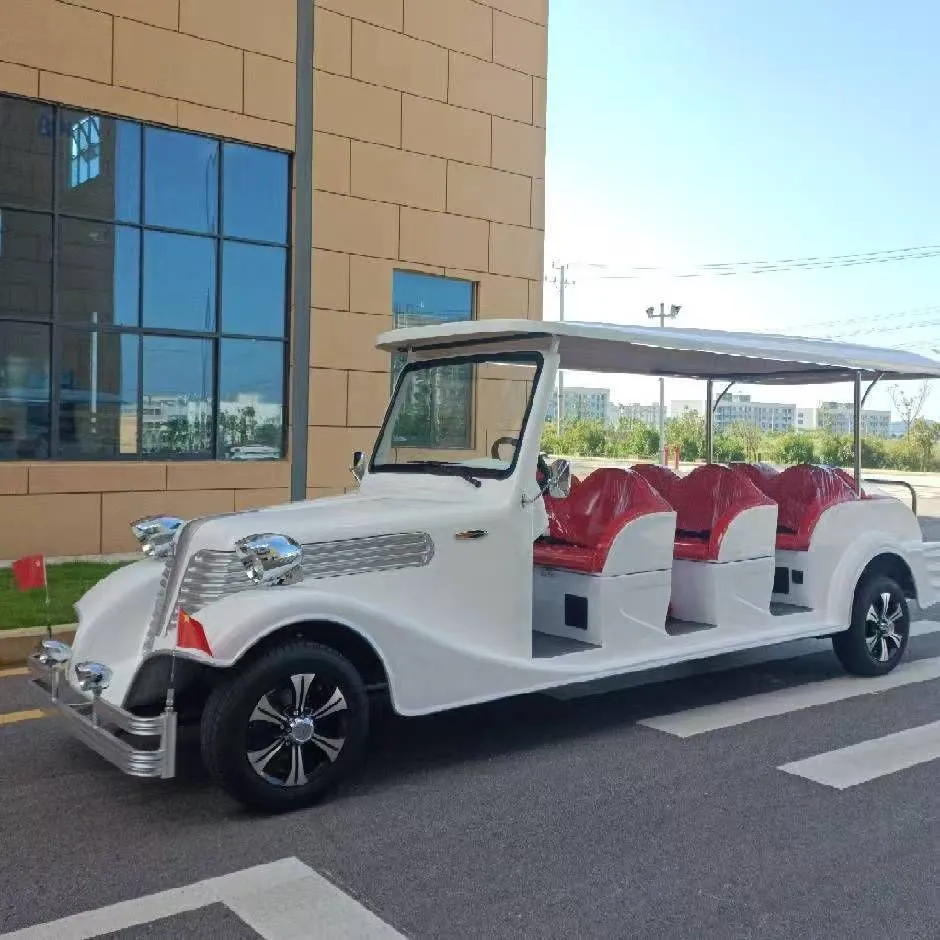

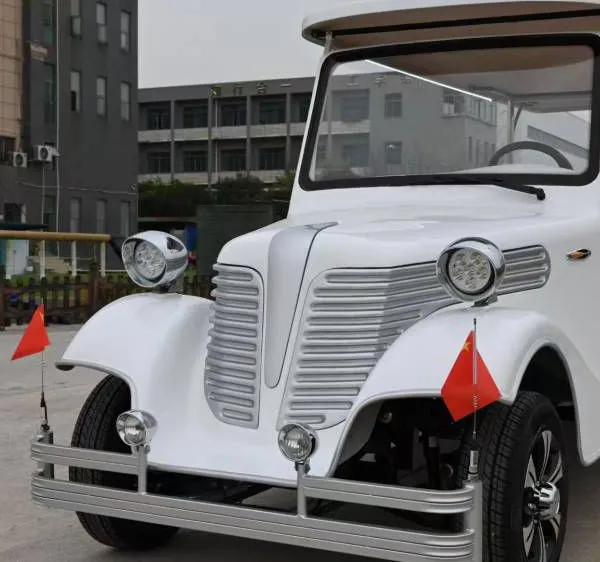

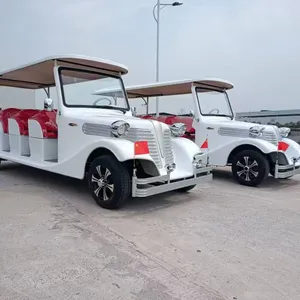

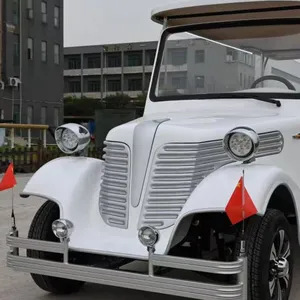

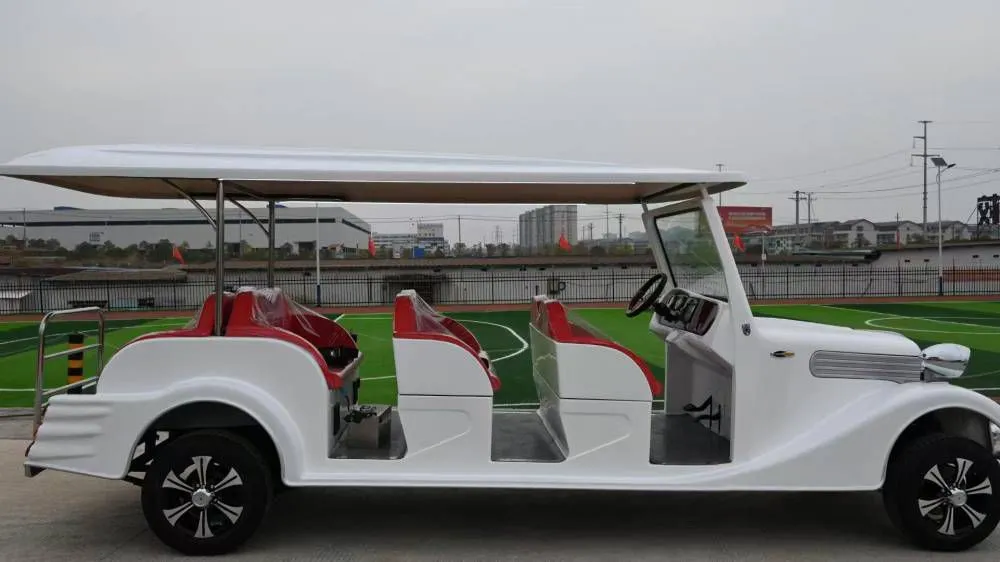

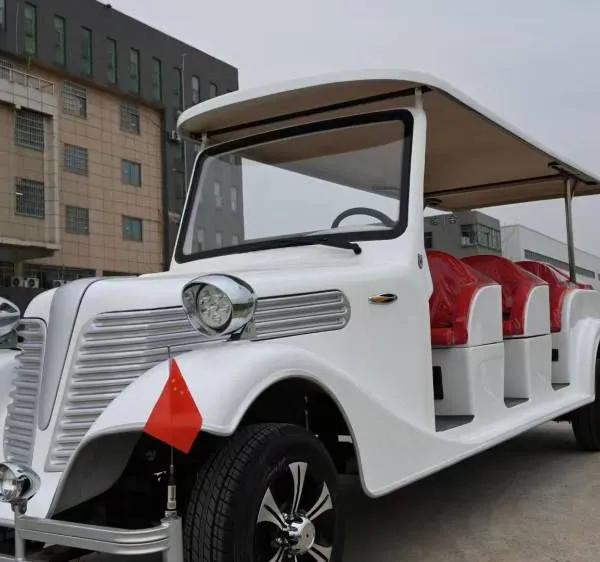

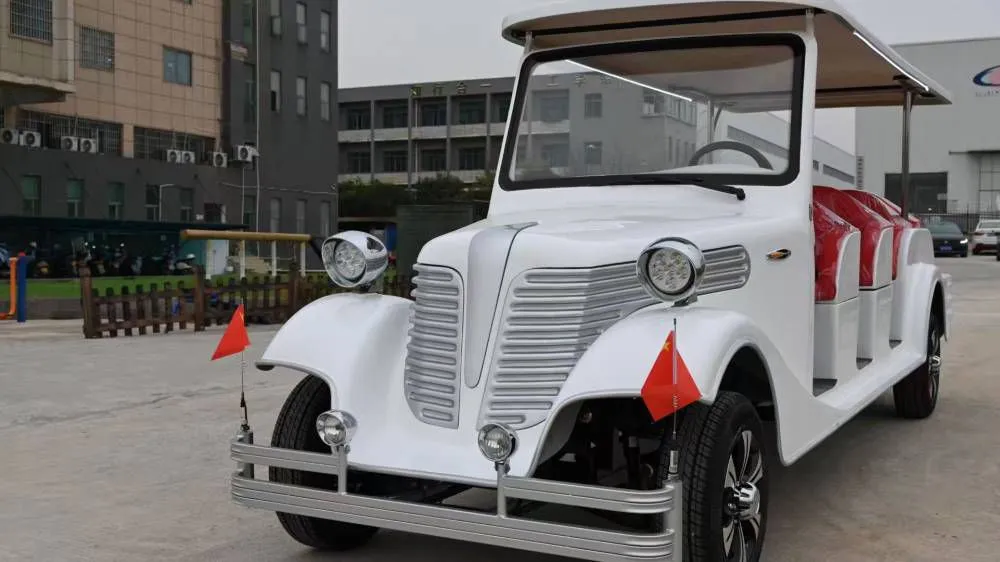

Help CenterNewly Designed 11-seater Electric Vintage-style Sightseeing Limousine
Related Products
-
Lk08 Electric Sightseeing Bus With Seats and Doors | Fully Enclosed 8-seater Sightseeing Bus | Electric Vehicle for Reception in Factories and WharvesUS$ 7384.62MOQ: 1 -
23-seater Enclosed Electric Sightseeing Bus | Electric and Fuel-powered Sightseeing Buses for Scenic Spots and CampusesUS$ 17230.77MOQ: 1
-
17-seater Electric Sightseeing Bus With Doors | Enclosed 17-seater Scenic Area Sightseeing Bus | Fully Enclosed Sightseeing Bus With Glass DoorsUS$ 10000MOQ: 1
-
Electric Flatbed Small Truck With a Load Capacity of 2 Tons. Electric Truck for Workshops, Docks, and Airports.US$ 8615.38MOQ: 1
-
Panda-shaped Cartoon Sightseeing Vehicle - 14-seat Open-top Sightseeing Vehicle With a Roof for Scenic SpotsUS$ 10000MOQ: 1
LX12 - D Standard Configuration |
|||
|
Name |
12 -seat Vintage Car |
|
Motor: |
72V/7.5KW AC Motor |
||
Controller: |
72V/350A AC Controller |
||
Accelerator: |
Mechanical signal and electronic signal logic matching, waterproof and shockproof |
||
Charger: |
Fully automatic high - efficiency pulse charger |
||
DC/DC Converter: |
72V/12V non - isolated type |
||
Battery: |
8V/150AH maintenance - free battery |
||
Tire: |
175/70R14 |
||
Chassis: |
High - strength steel tube welded frame, electrophoretic anti - corrosion treatment |
Car body material: |
High - strength composite material body |
Braking System |
Front wheel hydraulic disc brake/Rear wheel hydraulic drum brake |
Parking brake: |
Mechanical rear wheel brake |
Steering device system: |
Left and right double - push rack and pinion steering system, automatic clearance compensation function + EPS power steering |
Suspension system: |
Front suspension: Torsion bar structure; Rear suspension: Multi - leaf spring, hydraulic damping shock absorption system |
Battery operating environment: |
-20℃~40℃ |
Rear axle: |
Integral low - noise rear axle (High - efficiency gear transmission differential) |
Driving mode: |
Rear - wheel drive |
Battery service life: |
≥500 times |
Roof: |
Hard top |
Front windshield: |
Automotive special tempered glass equipped with wiper |
Instrument panel: |
Luxury car interior "wood - grain" instrument panel, ammeter, combination instrument, ignition switch, power indicator, CD player, forward and reverse switch |
||
Seats: |
Simulated leather movable luxury seats (black) |
||
Overall external dimensions length × width × height (mm) *1440*1970 (excluding rearview mirrors) |
Battery size (length × width × height, mm): |
260*180*285 |
|
Wheelbase (mm): |
3510 |
Climbing ability: |
20% |
Front/rear track width (mm): |
1210/1150 |
Minimum turning radius (m): |
7.5 |
Unloaded/loaded speed (km/h): |
28/26 |
Tractive force (KN): |
6 |
Number of seats (persons): |
12 |
Braking distance (m): |
≦4.5 |
Minimum ground clearance (mm): |
160 |
Kerb weight (kg): |
Including battery (1063), excluding battery (743) |
Endurance mileage (km): |
80 - 100 |
Single battery weight (kg) |
30kg |
