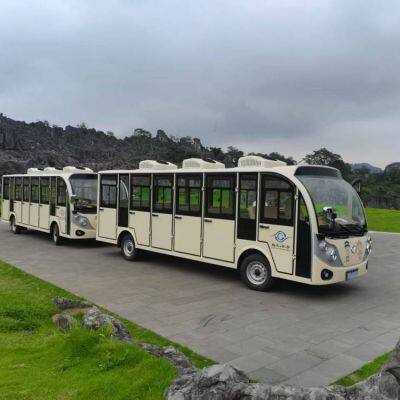

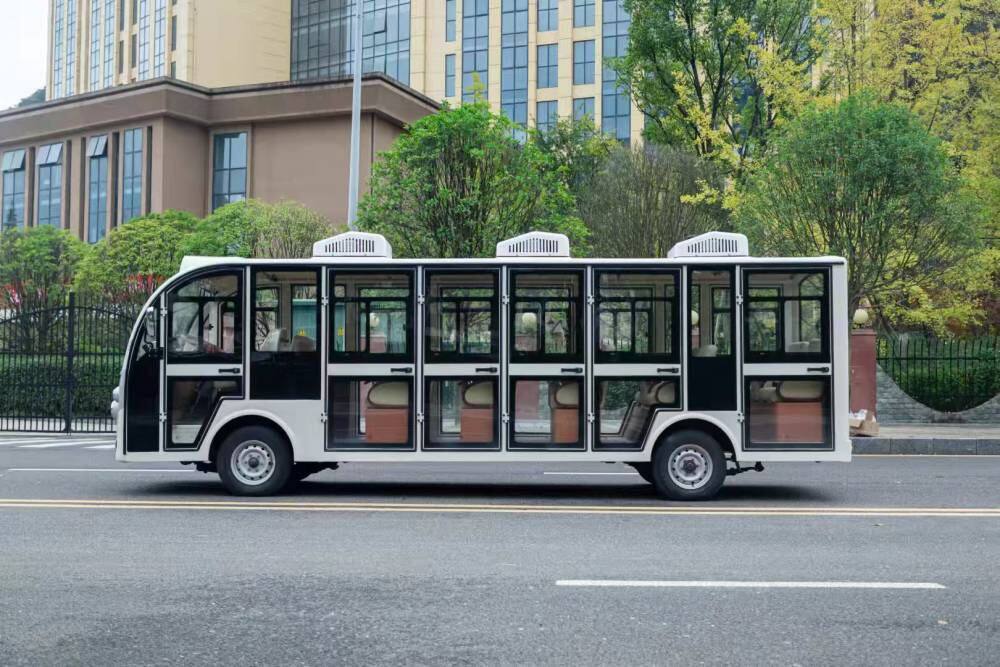

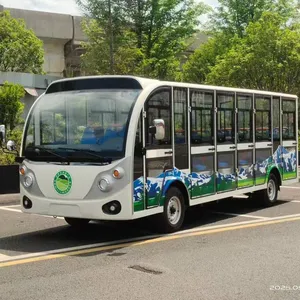

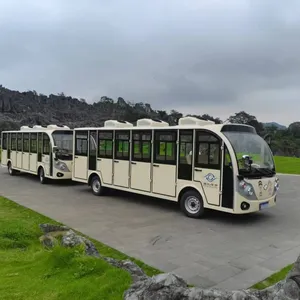

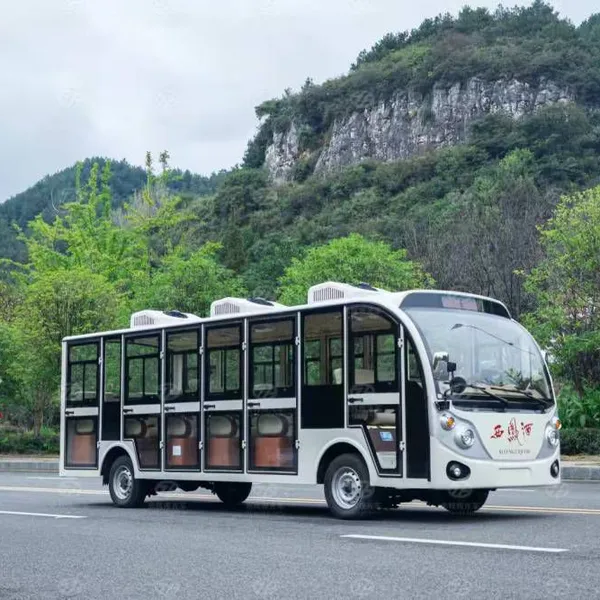

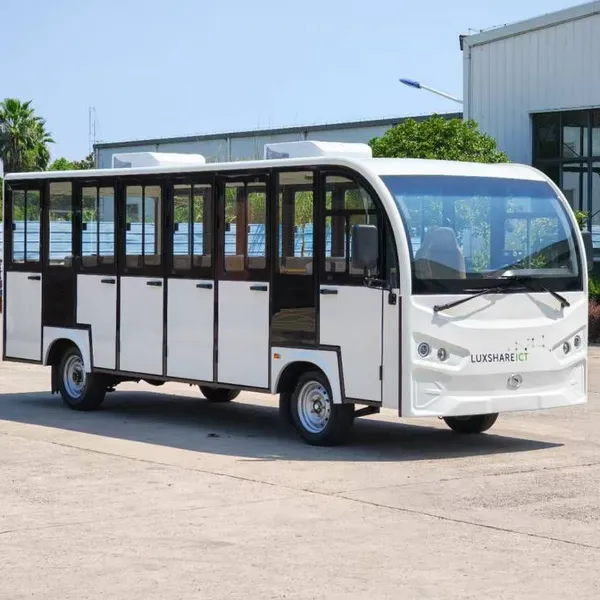

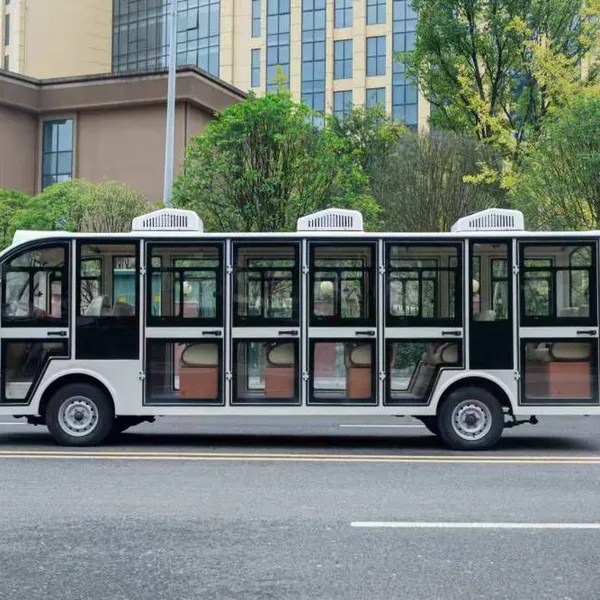

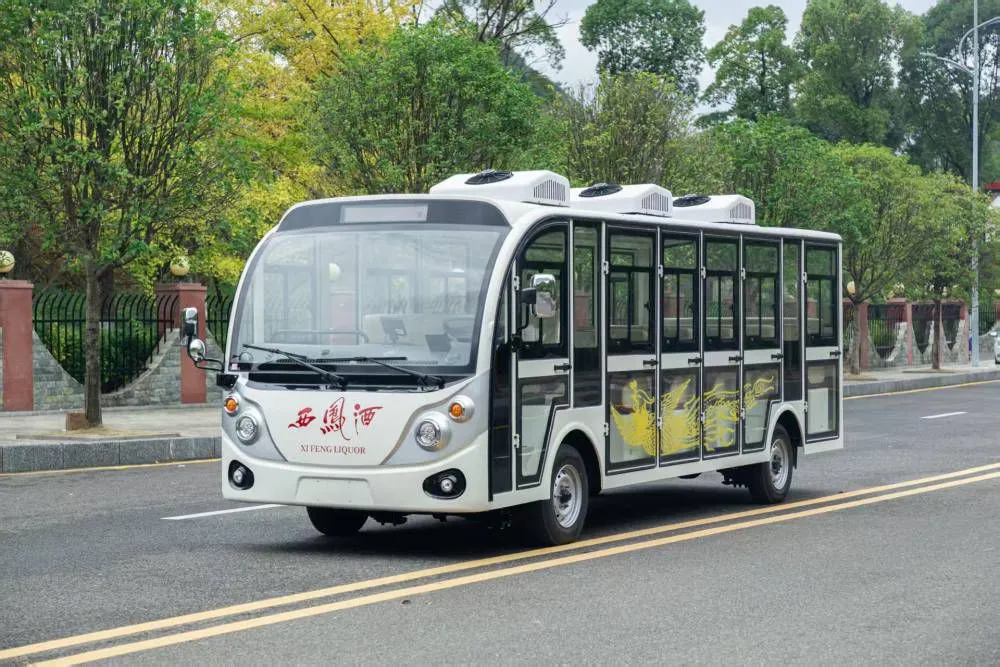

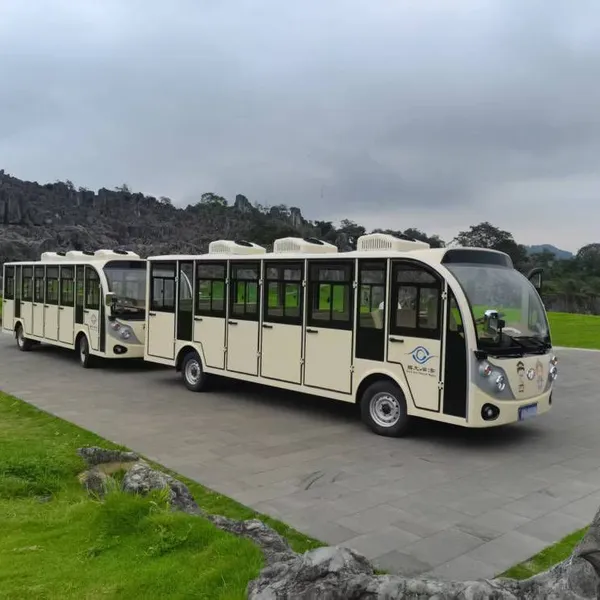

23-seater electric sightseeing bus with doors
|
Dimension parameters |
Project |
Unit |
Basic type |
Product model |
LK-23A |
||
Number of passengers (including driver) |
Person |
2-23 |
|
Length * Width * Height |
mm |
6260*1900*2160 |
|
Wheelbase |
mm |
3610 |
|
Track (front/rear) |
mm |
1600/1600 |
|
Quality parameters |
Curb weight of the whole vehicle |
kg |
1820 |
Gross mass |
kg |
3580 |
|
Driving part |
Electric control |
Curtis AC electric control |
|
Battery |
72V 12 pieces/200AH maintenance-free battery Huoju |
||
Motor |
8500W |
||
Gearbox |
None |
||
Front and rear suspension |
Leaf spring type non-independent suspension + tubular hydraulic shock absorber |
||
Rear axle |
Integral rear axle + tubular shock absorber |
||
Transmission technology |
Automotive drive shaft technology in the industry |
||
Performance parameters |
Vehicle speed (fully loaded) |
Km/h |
≤27 |
Minimum turning radius |
M |
8.5 |
|
Gradeability (fully loaded) |
% |
≥18 |
|
Parking ability (initial speed 20Km/h) |
M |
5 |
|
Minimum ground clearance (unloaded/fully loaded) |
mm |
130/100 |
|
|
Vehicle body configuration |
Chassis |
Automobile painting process, integrated chassis, pickling and phosphating treatment of the whole vehicle, anti-corrosion frame |
|
Steering system |
Worm and worm gear steering system, hydraulic power assist |
||
Suspension system |
Integral front axle with tubular shock absorber, rear axle leaf spring |
||
Braking performance |
Dual-circuit hydraulic braking, vacuum power-assisted braking |
||
Tires |
Automobile vacuum tires 185R14 |
||
Body |
Frame and fiberglass steel coverings |
||
Front windshield |
Special double-layer glass for automobiles |
||
Roof |
Press-forming + welding process. Pickling, phosphating treatment, cathodic electro-permanent paint, anti-corrosion and anti-rust process |
