Hollow Cup Motor Coil Fully Automatic Winding Machine | Brushless Coreless Motors Winding Equipment
US$ 23235 - 24602
MOQ: 1 Unit
Key Specifications
Get Latest Price
Warranty:
Machine warranty for one year
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
25 days
Related Products
-
HY-R13 Transformer Fully Automatic Winding Machine Inductive Coil Eight Axis Winding MachineUS$ 23235 - 24602MOQ: 1 Unit -
Electrical Equipment Manufacturing Machinery 12 Axis Transformer Winding MachineUS$ 23235 - 24602MOQ: 1 Unit
-
Supply of Automatic Power Transformer Twelveaxis Winding MachineUS$ 23235 - 24602MOQ: 1 Unit
-
HY-R200 Transformer Fully Automatic Bushing Winding MachineUS$ 10266 - 11635MOQ: 1 Unit
-
Precision High Efficiency Fully Automatic Transformer Insulation Bushing Insertion MachineUS$ 10266 - 11635MOQ: 1 Unit
Warranty
Machine warranty for one year
Hollow Cup Motor Coil Fully Automatic Winding Machine | Brushless Coreless Motors Winding Equipment

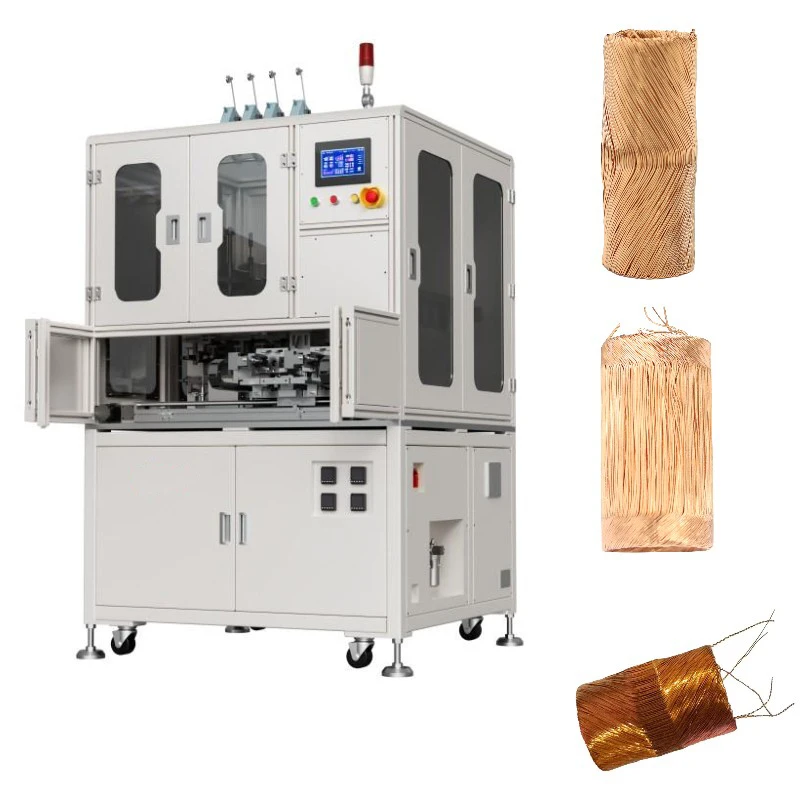

Equipment Overview

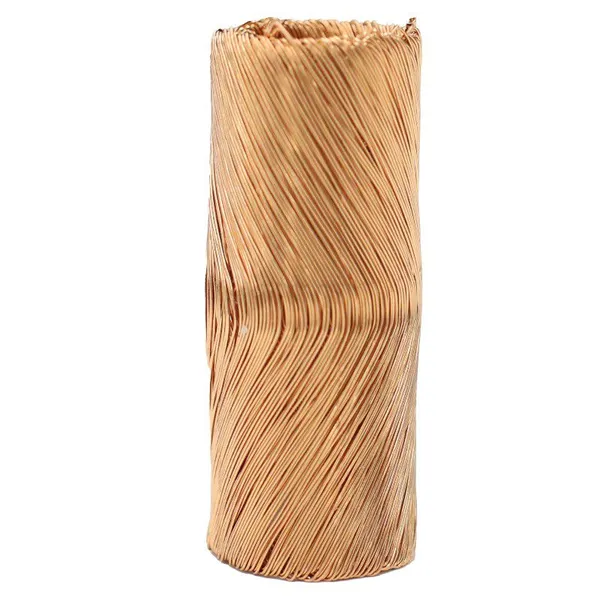

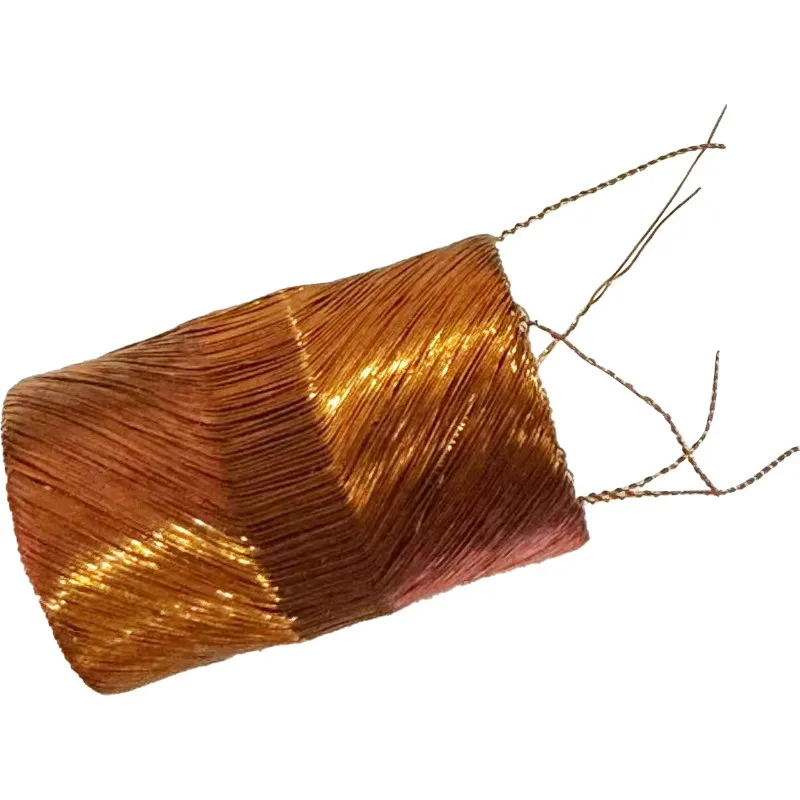

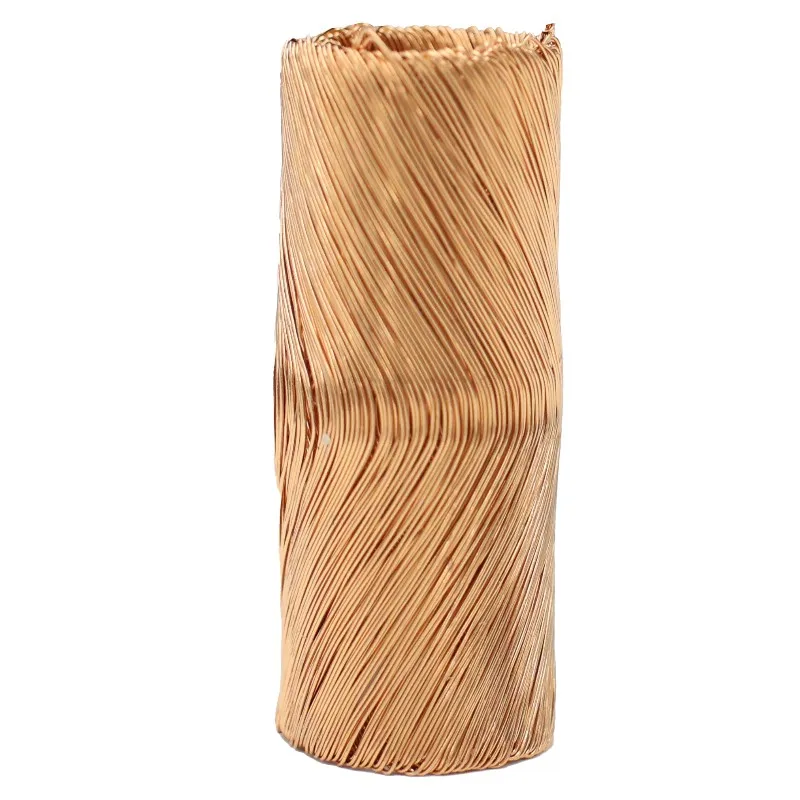

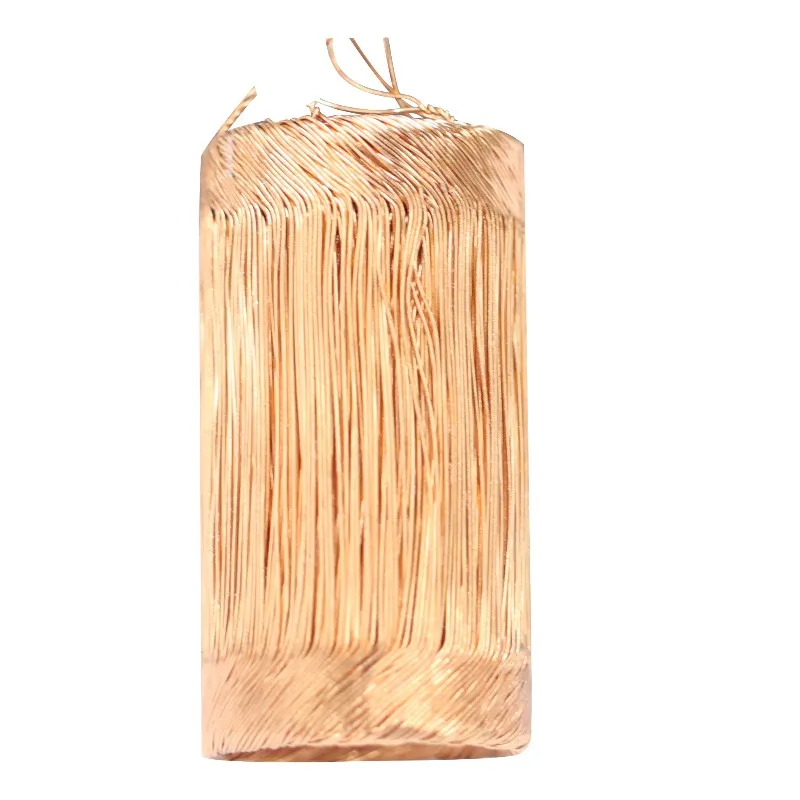

This is the latest air cup motor winding machine, specifically designed for air cup motor winding. It handles air coil motor ranging from 6mm to 32mm in a single step! The production process is

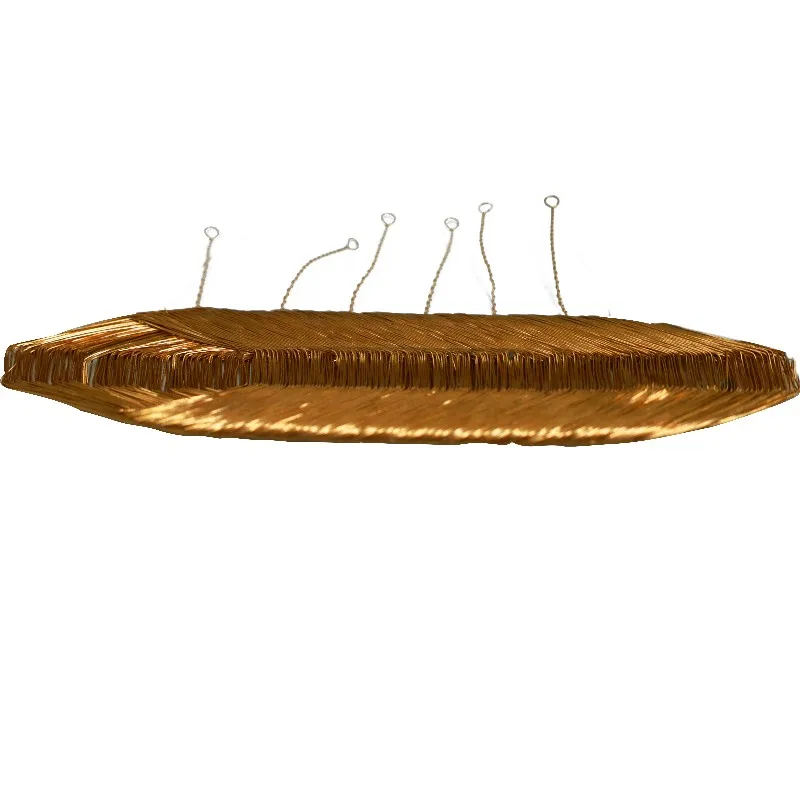

fully automated, including winding, lead wire pulling, flattening, hot pressing, coiling, hot pressing, and unloading. This process requires no human intervention, directly producing flat-pressed
heated coil sheets. This significantly reduces labor costs and increases efficiency, while eliminating defective products caused by human error. It’s ideal for mass production of brushed and
brushless coreless motors.
Product parameters
| Model number | HY-R24013 |
| No. of spindles | 2 spindles |
| Spindle positioning accuracy | 0.05° |
| Wire size | Ø0.08-0.3mm |
| moving positioning accuracy | 0.015mm |
| Control spindle | 6 spindles |
| Power supply | AC 220V,50/60Hz |
| Power | 3.5Kw |
| Air pressure | 0.4- 0.6MPa |
| Machine dimensions | (L)1200x(W)1100x(H)1900mm |
| Machine weight | Approx. 450kgs |
