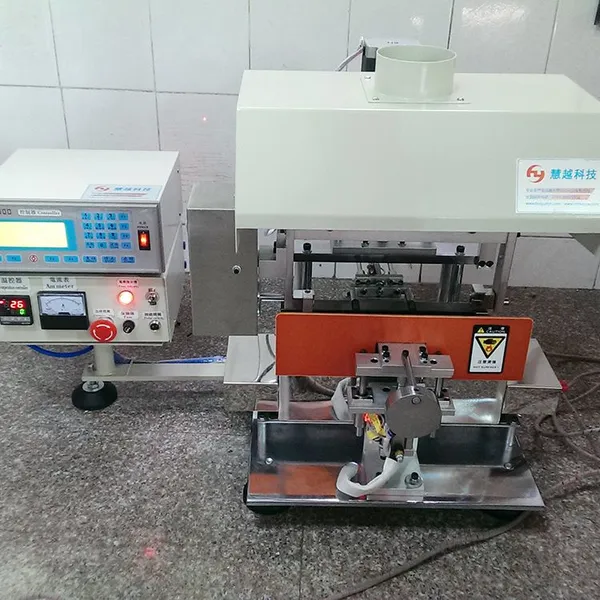

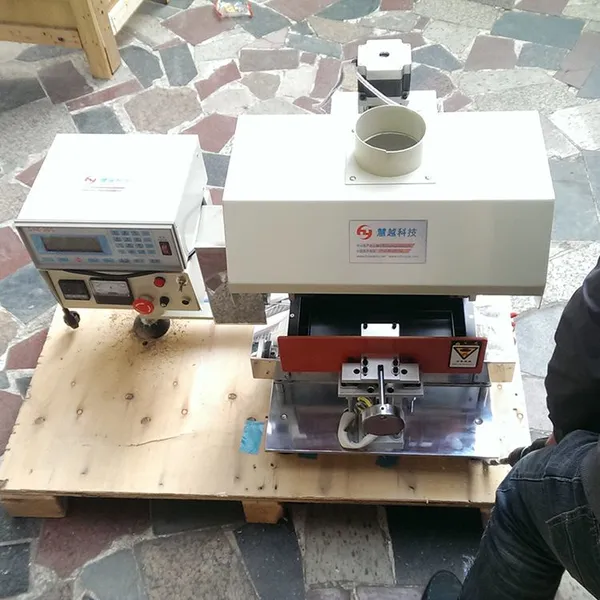

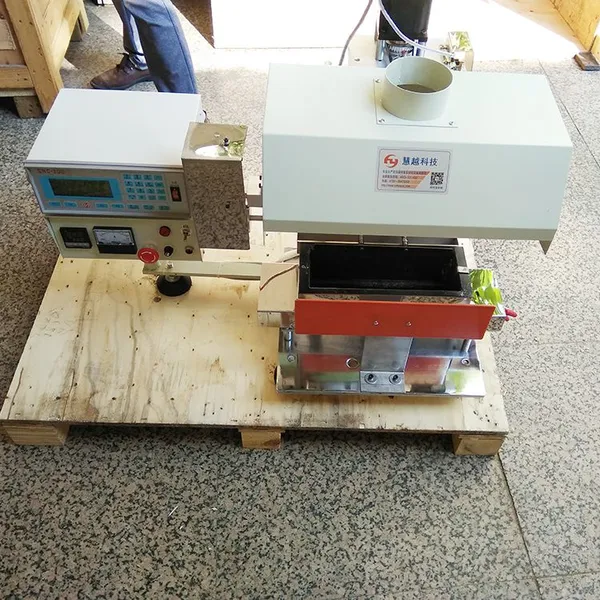

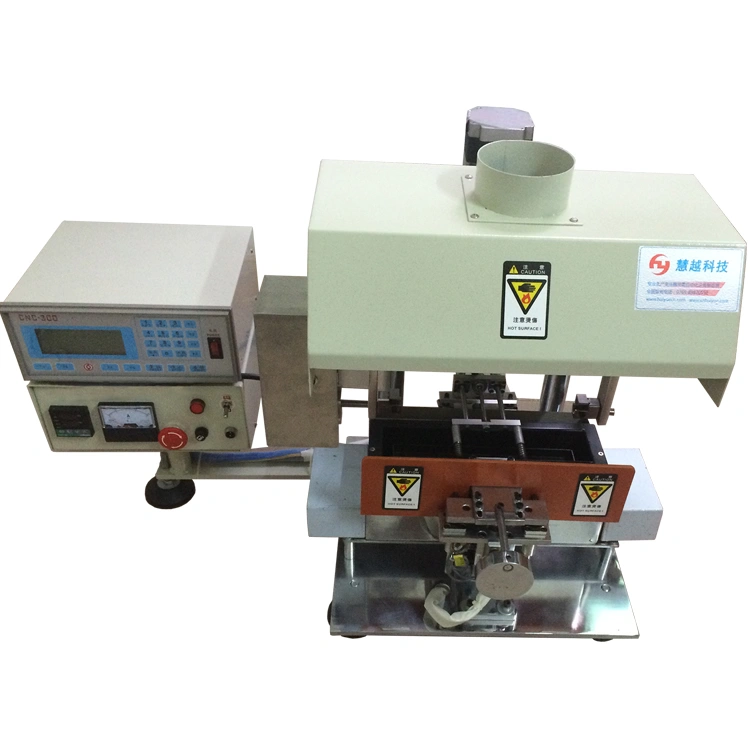

Transformer soldering equipment Inductive coil tin immersion machine Flip over automatic soldering machine
1, using the latest DSP microprocessor, NC control high precision, accurate positioning
2, LCD Chinese display, easy to operate, with self-check function
3, PID temperature control, tin furnace temperature stability
4, biaxial synchronous function positioning speed
5, can be set 360 degrees rotation angle
6, can store 99 parameters, each parameter can be set to 20 groups of steps
7, the use of titanium alloy tin furnace, in line with lead-free environmentally friendly process
8, for SMD component plant design, a variety of angles once completed
9, with automatic dialing function
10, can be self-defined action mode, to overcome the artificial solder and multi-angle action sequence problem
11, translation machinery for the standard equipment
12 Specifications: Model HY-H03, power supply single-phase AC220V / 50HZMAX: 1.6KVA Control mode NCtwospindles tin furnace Specifications area Dimension
Desktop high frequency transformer soldering dip machine price | |
Power supply |
AC 22V / 2000W |
Size |
900 * 500 * 660 (long, wide, high) |
Weight |
70KG |
Tin furnace furnace size |
295 * 105 * 65 (long, wide, high) |
Working speed |
10-20 pcs / 12sec |
Tin furnace material |
titanium alloy |
Temperature |
0-600 ° C. |
Stroke |
Max76mm (stepping motor) |
Control system |
CNC computer |
Moto |
stepper motor |
