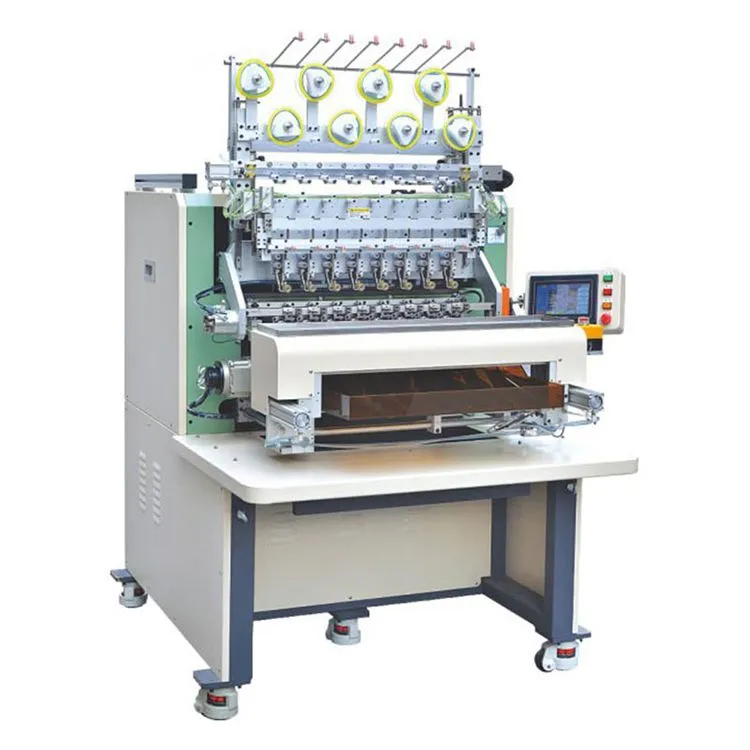

Help CenterHY-R13 Transformer Fully Automatic Winding Machine Inductive Coil Eight Axis Winding Machine
Related Products
-
Electrical Equipment Manufacturing Machinery 12 Axis Transformer Winding MachineUS$ 23235 - 24602MOQ: 1 Unit -
Supply of Automatic Power Transformer Twelveaxis Winding MachineUS$ 23235 - 24602MOQ: 1 Unit
-
HY-R200 Transformer Fully Automatic Bushing Winding MachineUS$ 10266 - 11635MOQ: 1 Unit
-
Precision High Efficiency Fully Automatic Transformer Insulation Bushing Insertion MachineUS$ 10266 - 11635MOQ: 1 Unit
-
Hollow Cup Motor Coil Fully Automatic Winding Machine | Brushless Coreless Motors Winding EquipmentUS$ 23235 - 24602MOQ: 1 Unit
This series of key components of the machine all imported from Japan, high reliability, high durability, greatly enhance the service life of the machine
Novel design, simple structure, strong rigidity, simple operation, easy maintenance
Programming using a computer or touch screen, free to choose, Chinese display easy to understand
Unique quick connector fixture design, reduced change time
Guide rod 0 ° / 90 ° / 135 ° optional installation, easy to different multi-angle skeleton winding
The use of precision with tension control tensioner, the product cable more neat
With optional automatic loading and unloading function, can greatly save the winding time
With optional automatic twisting function, increase the stability of the product to meet the special requirements of the product
With automatic threading, broken wire, remove the waste line function
| Model | HY-R13 |
Spindle number |
8 |
Spindle speed (rpm) |
10000 |
Spindle pitch (mm) |
45/100 |
Spindle servo motor power (W) |
1500/3000 |
Traverse motor power (W) |
X:200, Y:200, Z:400 |
Spindle diameter (mm) |
standard:10 special:12 |
Wire range (mm) |
0.02-0.4mm |
Max.wire diameter (mm) |
60/90 |
Traverse moving range (mm) |
X:110, Y:150, Z:70 |
Traverse speed (mm/sec) |
200 |
Controller |
JHY-3 |
Power voltage (V) |
220 |
Power voltage (W) |
3000W/4500W |
Air pressure (Mpa) |
0.45-0.55 |
Machine size (mm) |
1300(L)x900(W)x1400(H) |
Machine weight |
600 |
