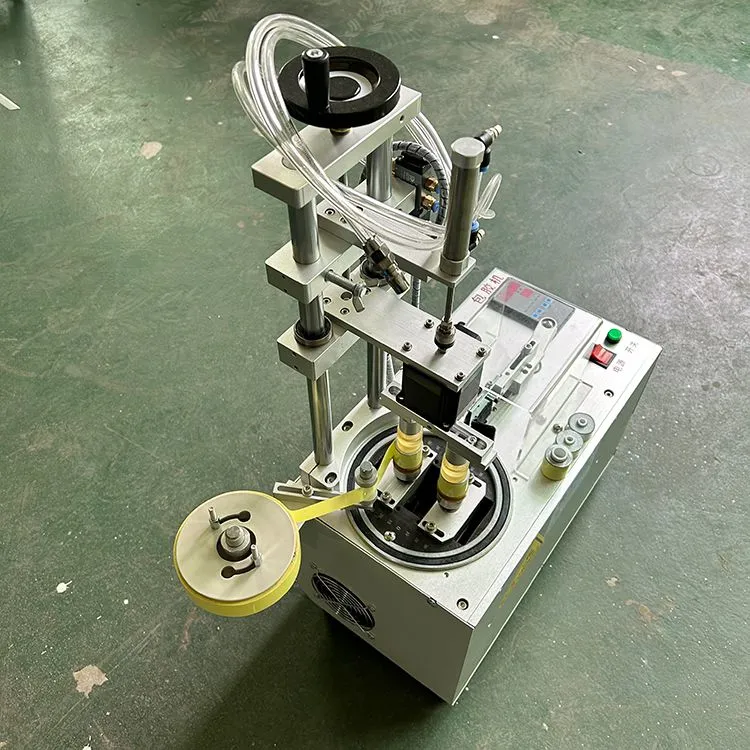

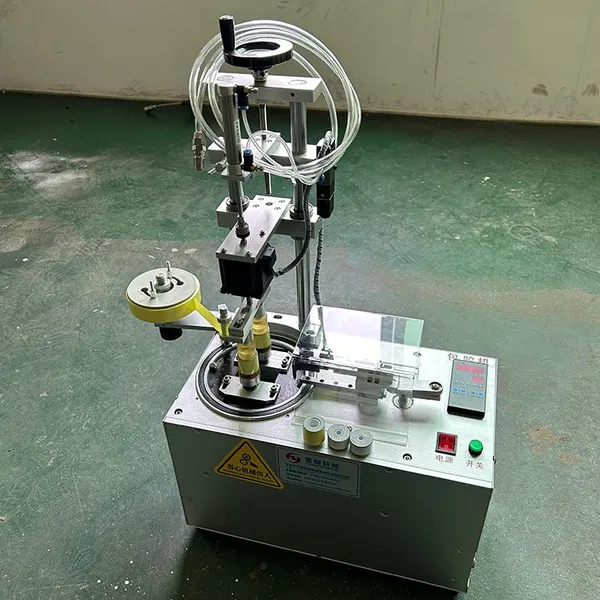

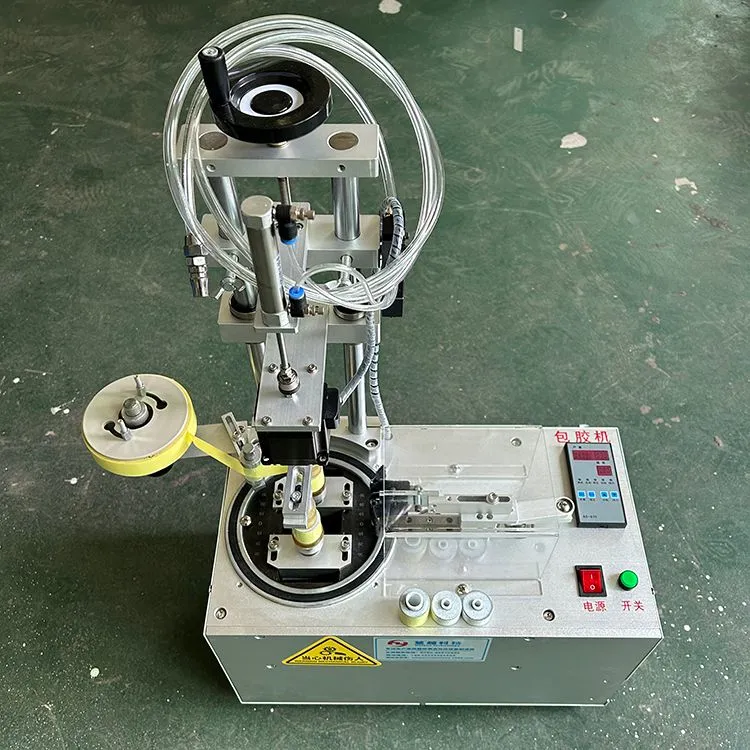

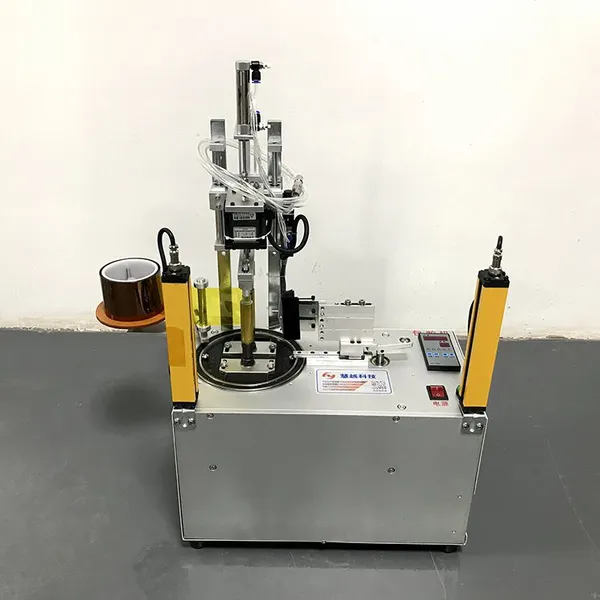

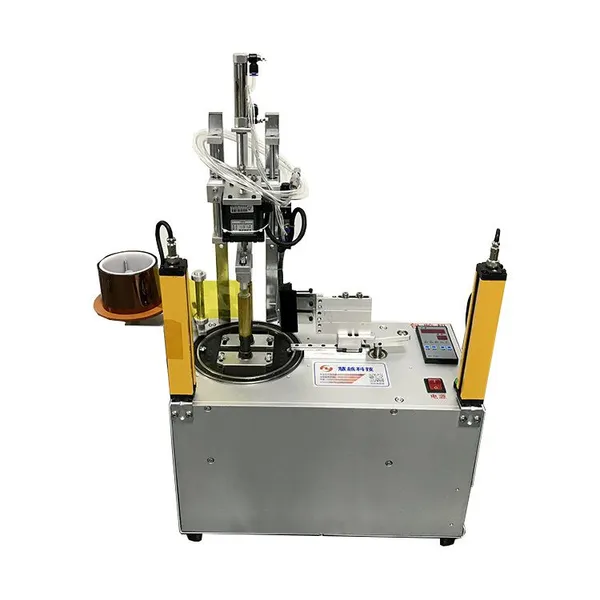

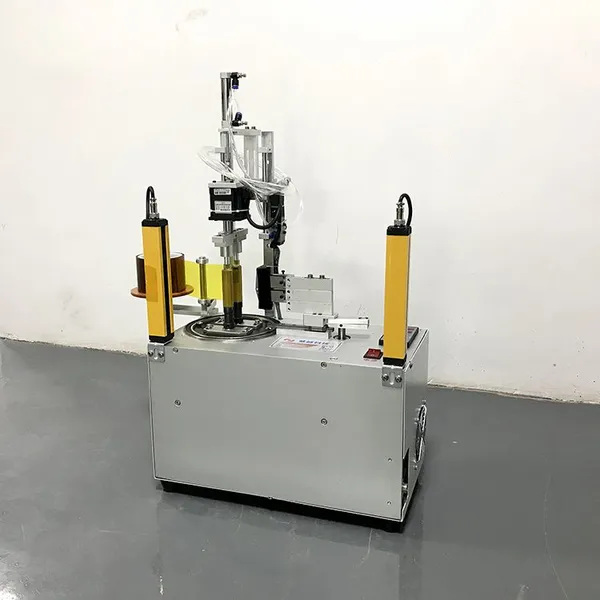

HY-B03 Double down pressure pneumatic induction coil tape machine
- 100 Unit / Units per Month
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
HY-B06 Fully automatic transformer tape wrapping machine
-
HY-R200 Transformer fully automatic bushing winding machine
-
HY-R06 Transformer CNC Single-axis Winding Machine
-
HY-E02 EI Transformer Hand-cranked Silicon Steel Sheet Inserting Machine
-
HY-R10 Transformer inductor coil CNC double-axis winding machine
-
HY-R12 Enameled copper wire CNC automatic spring machine
Product Details
| Brand Name | Double down pressure tape machine | Place of Origin | China | |
| Model Number | HY-B03 | Certification | CE certification | |
| After-sales Service Provided | Overseas third-party support available | Warranty | Machine warranty for one year | |
| Weight | 25KG | Dimension(L*W*H) | L430x W300x H560mm | |
| Condition | New | Voltage | 220V | |
| Power(W) | 400W |
Product Description

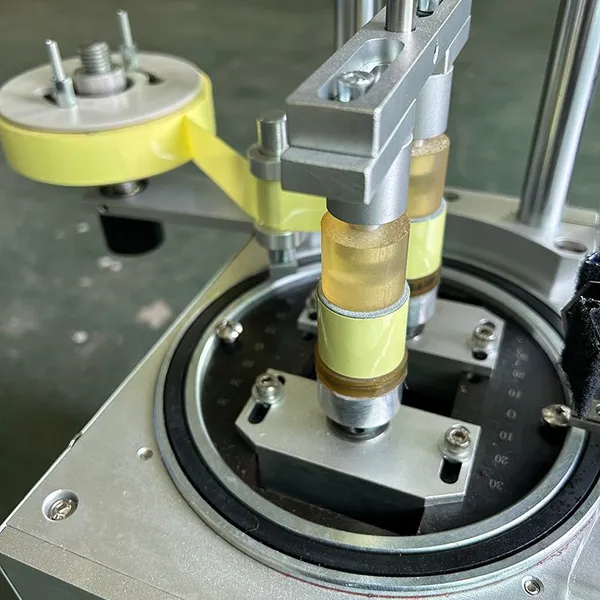

Double down pressure pneumatic lagging machine
Packaging machine used in a variety of high and low frequency transformers, inductors coil,
relays and other core tape and insulation tape package; and mobile phone charger,
USB data cable plugs and other protective film packaging.
Using single-chip control, stepper motor 7.5p (power) motor running, high quality, high efficiency, low noise.Efficiency requirements (capacity requirements): hourly: about 3000pcs (quantity)
Model | HY-B03 |
Membrane range | 34mm - 77mm are applicable |
Number of turns | 1 - 9 turns, the number of turns can be arbitrarily set |

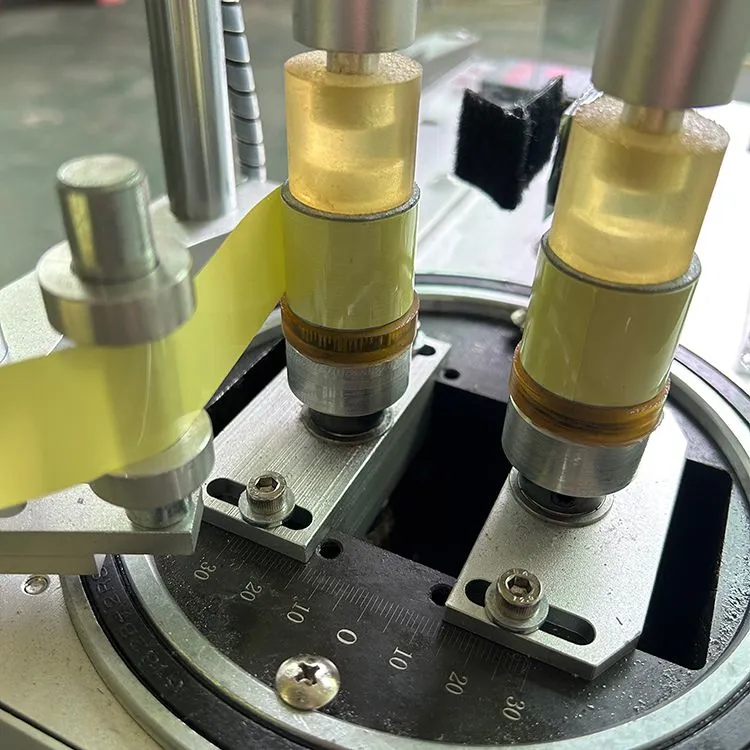

Two-axis wheelbase | diaphragm axis distance from 25mm - 85mm can be adjusted |
Size | L430x W300x H560mm |
Material construction | the main part of the use of S45C steel material; other A3 steel plating hard chromium |
Optional function | a. Automatic return material, easy to operate, improve efficiency (combined with product considerations); c. other functions (according to customer requirements); |
Weight | 25KG |
1, any vertical, horizontal transformers can be encapsulated, and the replacement of simple, fast, suitable for a variety of operations.
2, viscose cloth position can be fine-tuned.
3, the number of envelopes can be arbitrarily set, (speed can be adjusted)
4, the body has: manual and automatic functions
5, the yield is about 52-58 / min;
6, the use of man-machine interface control, easy to operate, there is a tape to remind the function.
7, optional function: a. Automatic return material, easy to operate, improve efficiency (combined with product considerations);
b. Motor speed selection 7.5 or 10 (the smaller the number of smaller speed);
c other functions (according to customer requirements Customized);
