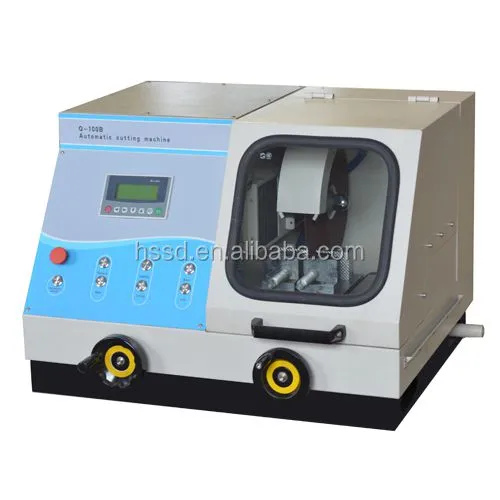

Q-100 Medium Speed Metallographic Cutter Metallography Cutting Machine
US$ 1000 - 3000
MOQ: 1 Set
Key Specifications
Get Latest Price
Weight:
180kg
place of origin:
Shandong, China
brand name:
Hensgrand
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST MP-2BT Metallographic Sample Grinding/polishing Machine,grinder and Polisher Machine,lapping MachineUS$ 8397.48 - 10496.85MOQ: 1 Set -
HST MP-2B 250mm Metallographical Grinding Polishing MachineUS$ 3498.95 - 4898.53MOQ: 1 Set
-
HST MP-2C Double Disk Double Control Metallographic Sepcimen Grinding and Polishing MachineUS$ 10496.85 - 13995.80MOQ: 1 Set
-
DTQ-5 Low Speed Specimen Cutting MachineUS$ 1000 - 1500MOQ: 1 Set
-
MoPao260 Lab Testing Equipment Metrology Tester/Metallographic Grinding and Polishing MachineUS$ 999 - 1899MOQ: 1 Set
place of origin
Shandong, China
brand name
Hensgrand
type
Cut Off Machine
video outgoing-inspection
Provided
machinery test report
Provided
core components
Engine
voltage
380V 50Hz
rated power
3 KW
dimension(l*w*h)
720*700*620mm
warranty
1 year
key selling points
Easy To Operate
weight (kg)
105
After-sales Service Provided
Engineers available to service machinery overseas
Certification
CE
Cutting diameter:
5-100mm
Cutting volume
100mm x 200mm
Model
Q-100
Brand
HST
Power
380V/415V/220V
Language
English
Application
Metal
Aluminum Metallographic Cutting Machine
Metallographic Cutting Machine Application:

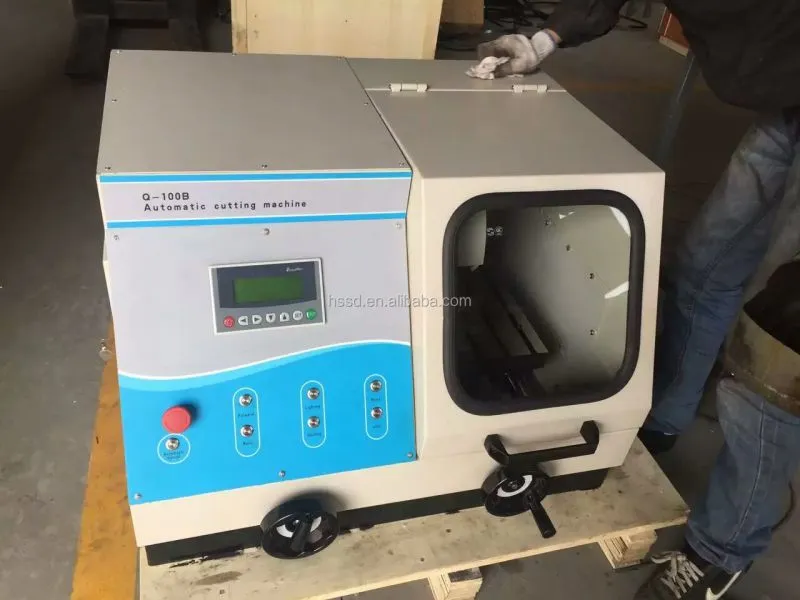

Model Q-100B manual / automatic metallographic specimen cutting machine is equipped with big cutting room and movable T-shape work table. Therefore this machine has the ability of cutting rectangle and large specimens. Also the equipped separate type vice is very convenient for operator to clamp various heterotypic work pieces.
Metallographic Cutting Machine Technical specifications
- Various cutting data can be displayed on high definition backlight type LCD screen.
- Cutting diameter: Ø5-100mm
- Cutting volume: Ø100mm x 200mm
- Manual cutting and automatic cutting means can be switched at will
- Large cutting chamber, tempered glass observing window
- Equipped with 60L cooling liquid water tank.
- Non-burning loss swing type cutting means that improved the cutting quality
- Automatic withdraw function after cutting is finished
- Bidirectional feeding means increase the length of deep cutting
- Cutting speed: 2.25, 3, 4, 5, 7, 9, 12, 15mm/min.
- Sand wheel rotating speed: 2100rpm
- Sand wheel specification: 350 x 2.5 x 32mm
- Display: LCD with high resolution backlit dot matrix
- Power: three phases with four cables, 380V, 50Hz.
- Dimensions: 930 x 700 x 610mm
- Net weight: 220 K
