metallurgical microscope

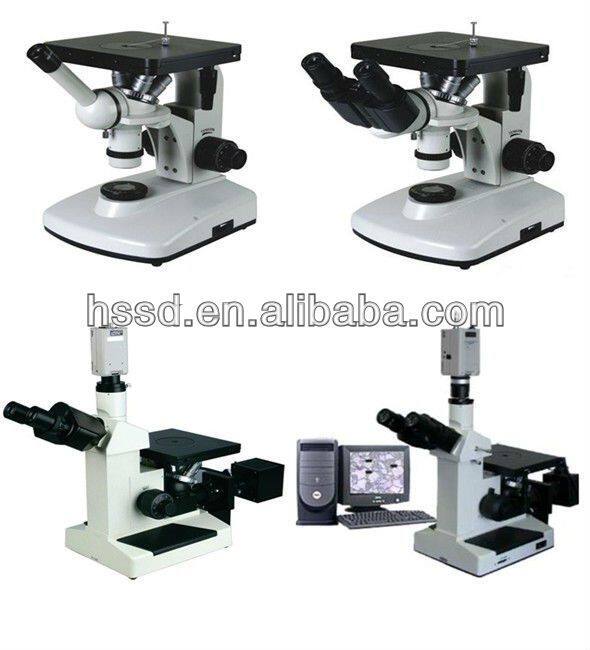

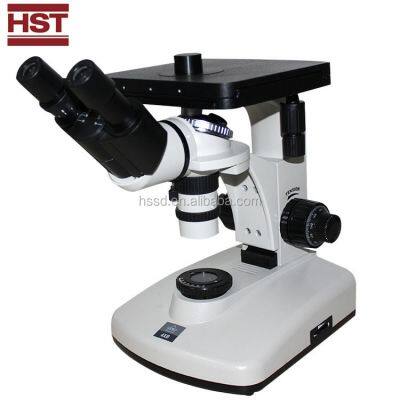

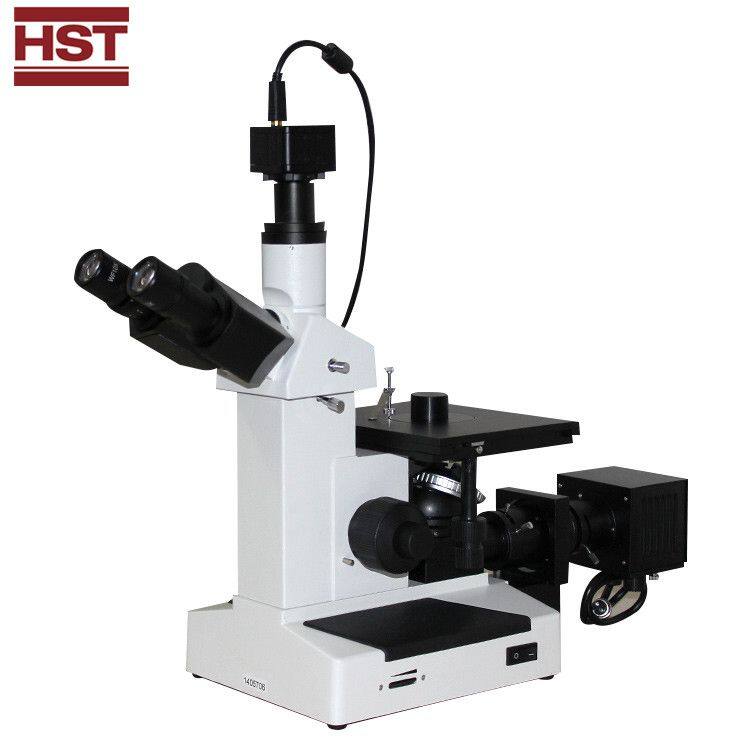

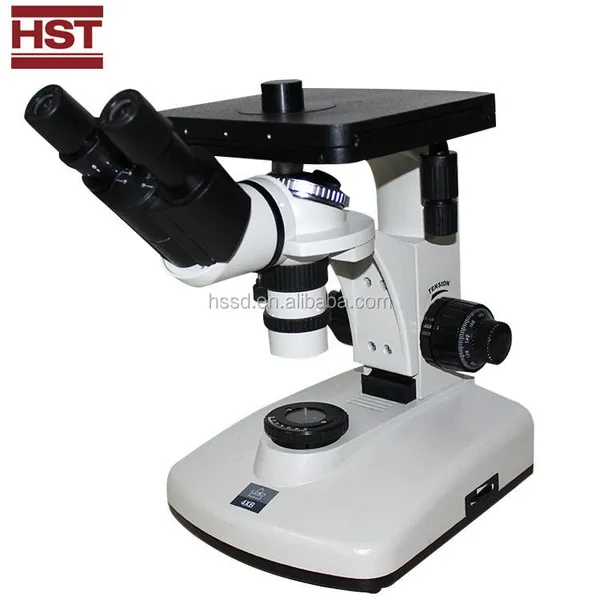

Positive Metallic Microscope 1000X Enlarged Particle Powder Detection
1. Function and application
It is the important device which can be used to study the metallographic of metal, and it is also the key instrument to verify the product quality in industrial application. This microscope can be equipped with photographic device which can take metallographic picture to carry out artificial contrast analysis, image editing, output, storage, management and other functions.
2. Main technical parameters
|
Three eyepiece tube |
Tilting angle: 30° Adjustable range: 55-75mm |
|
Eyepiece |
Wide view eyepiece 10X (16mm) |
|
Objective lens |
Flat fielding achromatic objective lens 10X, 25X, 40X, 100X (oil) |
|
Loading table |
150 x 200mm Moving range: vertical 15mm, horizontal 15mm |
|
Eyepiece (optional) |
12.5X, 16X, 20X, 10X flat fielding graduation eyepiece (grid value 0.1mm) |
|
Objective lens (optional) |
60X, 80X |
|
Photographic device (optional) |
1. Image adapting lens, high resolution color CCD camera static
and dynamic
capturing card, image analysis software, EPSON color jet printer 2. Digital camera, specific adapting lens |
3. Configuration
1) Metallographic microscope: inverted trinocular microscope 4XC;
2) Adaptor: special adaptor
3) Image system: camera shooting CCD
4) Image analysis system: SRMAS software

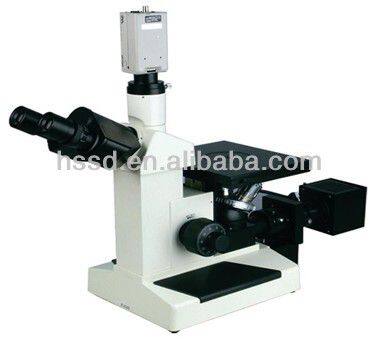

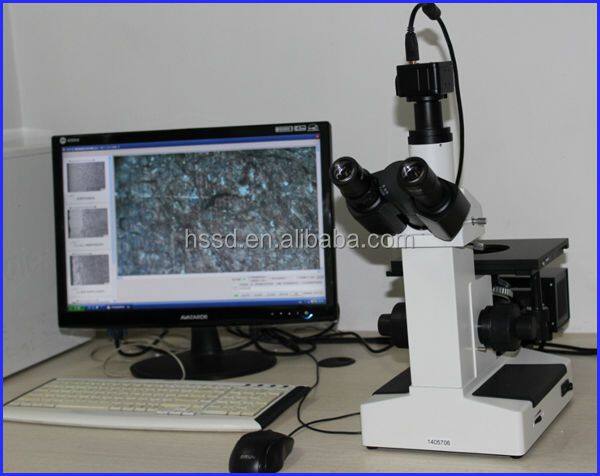

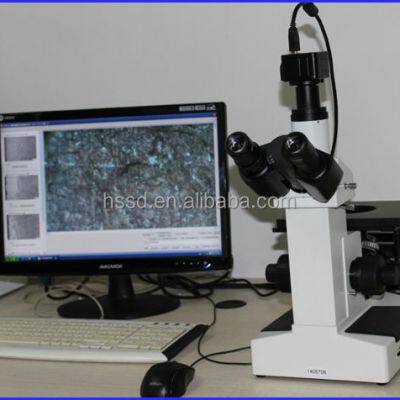

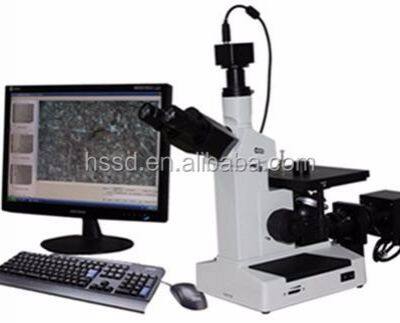

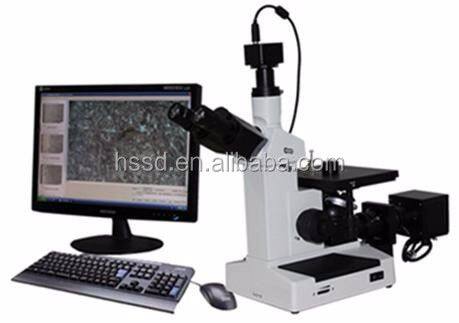

4XCE Computer Control Metallographic Trinocular Microscope with Camera and Image Analysis Software
4XCE Computer Control Metallographic Trinocular Microscope with Camera and Image Analysis Software
CE Certificate
We sincerely welcome friends at home and abroad to cooperate with us.
We would like to offer you our best products and service.
