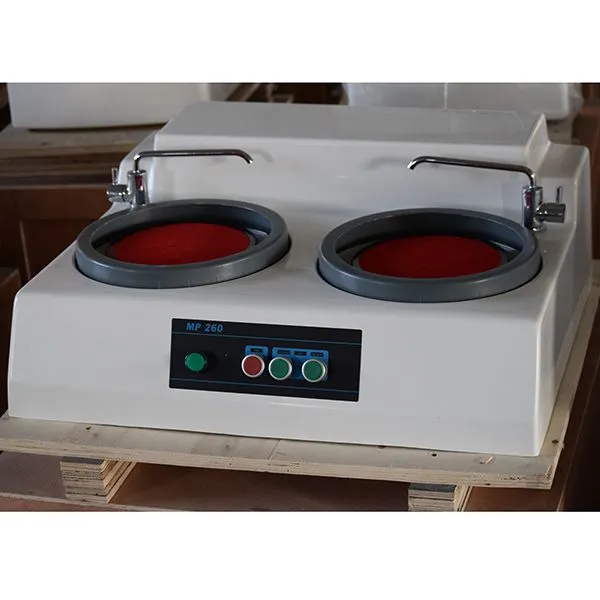

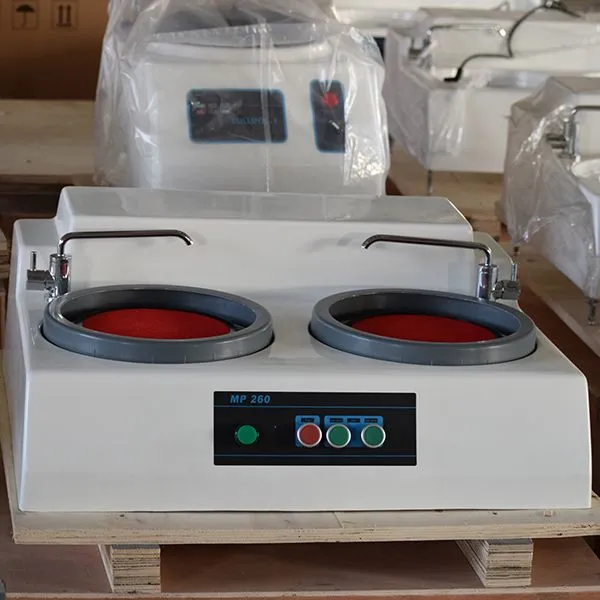

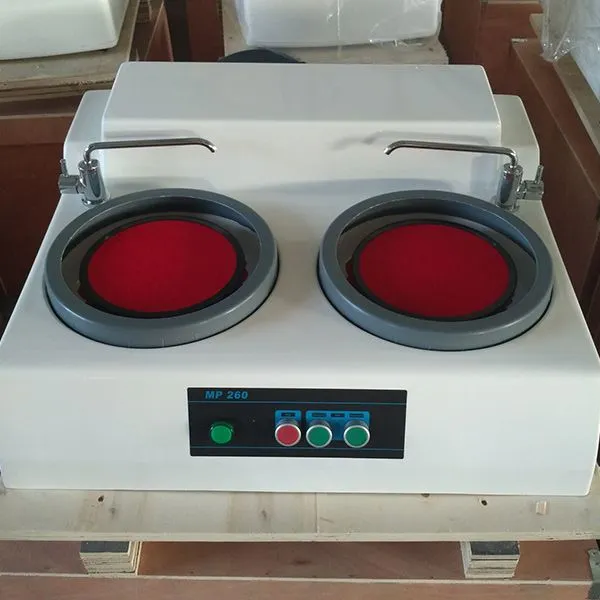

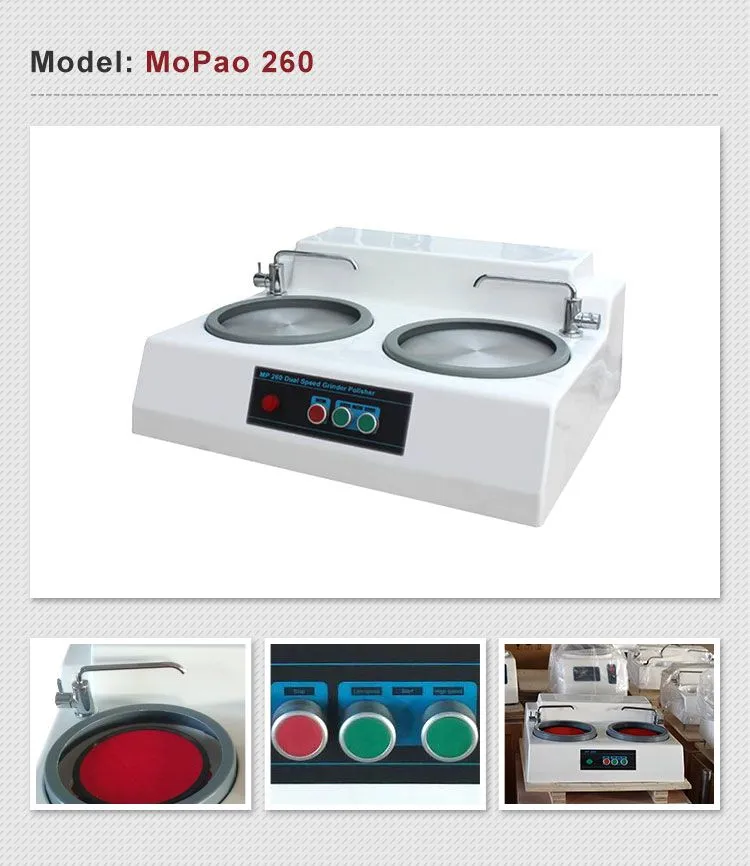

MoPao260 Lab testing equipment Metrology Tester/Metallographic Grinding and Polishing Machine

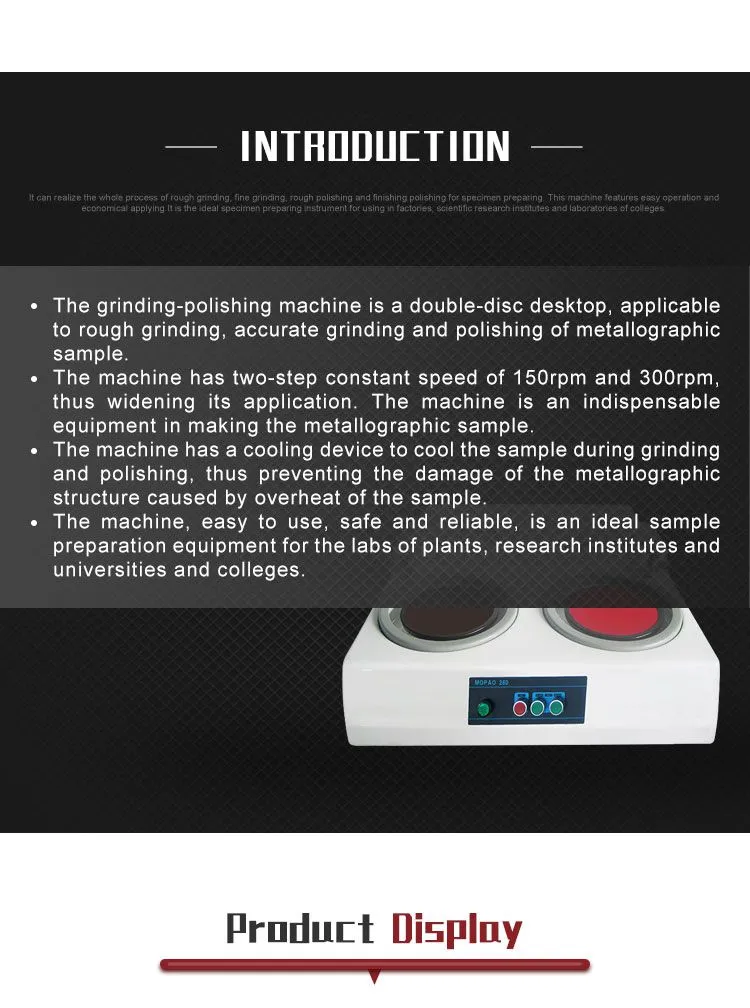

1. Application and Feature of Grinding-Polishing Machine
(1)This model is the economical & practical instrument designed for metallography specimen preparing. It mainly used for metallographic specimen grinding and polishing. It can meet the demands of specimen preparing from customers very well.
(2) This model is designed and manufactured as per international advanced specimen preparing technology.
(3) Equipped with beautiful appearance glass fibre reinforced plastic machine shell and full stainless steel parts which never rust.
(4) There are two optional types for MoPao 160E: 200mm or 250mm working disk. The working disk can be changed and replaced swiftly.
(5) There are two working conditions for this model: the stepless speed changing status or two-level constant speed status. The working condition can be switched from one to another easily. Also the rotating direction of working disk can be chosen at will.
(6)One key restoring function.
(7)They are the ideal specimen preparation machines which can be widely used in laboratories, factories and colleges, etc.
2. Main Specifications:
|
Model |
MoPao260 |
|
Grinding/Polishing Disc Diameter |
250mm (203mm can be ordered) |
|
Rotate speed |
300rpm ,600rpm ( two steps stationary speed) |
|
Motor |
370W |
|
Operating voltage |
AC 380V 50HZ |
|
Dimension |
725×710×310mm |
|
Weight |
45kg |
