Home > Instruments & Meters > Test Instrument > Test Machine > Multifunctional Water-cooled Inlay Machine Automatic Metallographic Specimen Mounting Press HST-ZXQ4

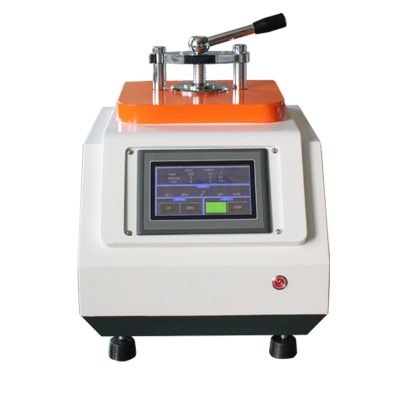

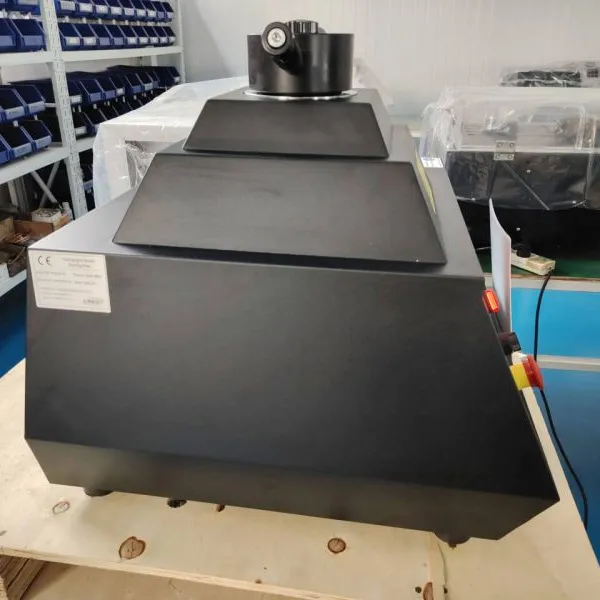

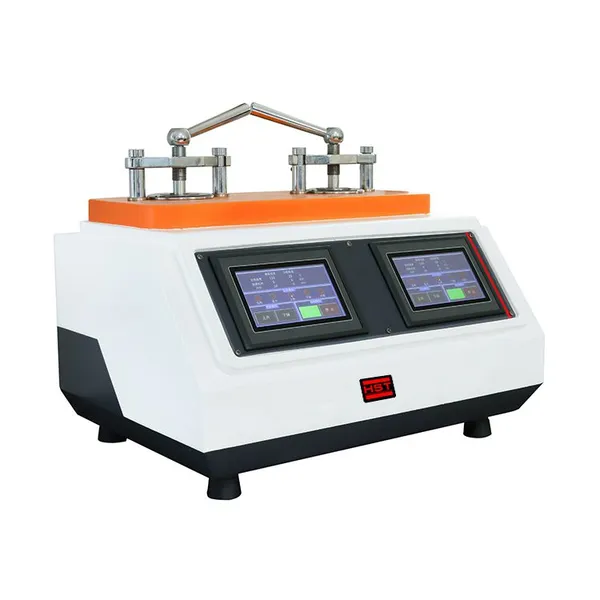

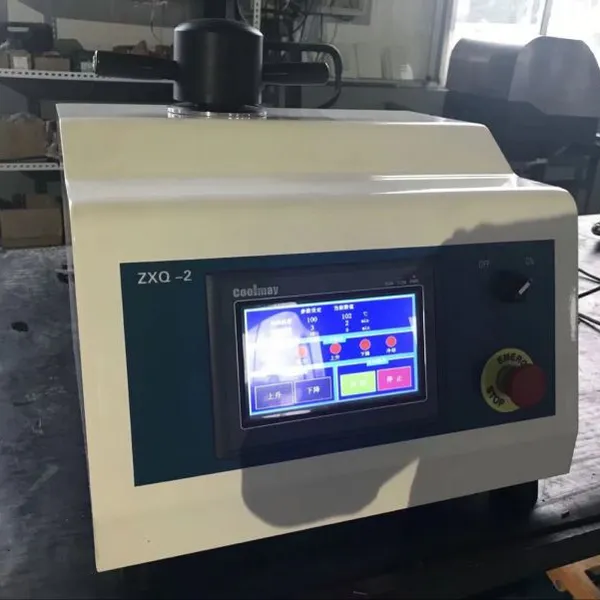

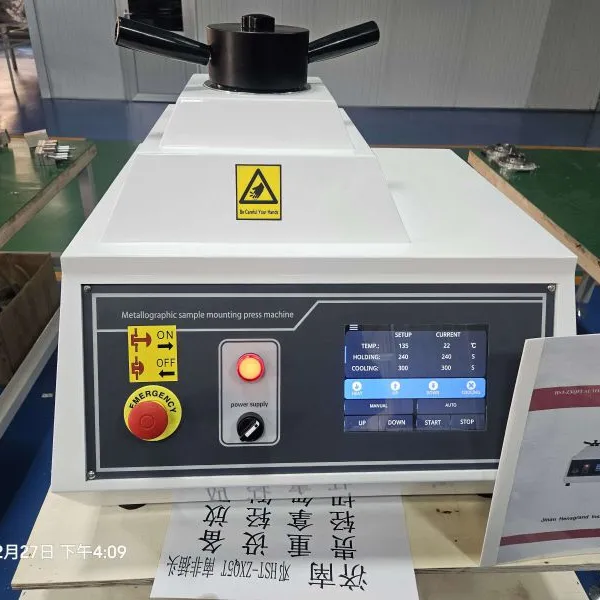

Multifunctional Water-cooled Inlay Machine Automatic Metallographic Specimen Mounting Press HST-ZXQ4
US$ 19034.29
1 - 2 Set
US$ 17634.71
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
Grade1
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-ZXQ2AH-45 HST-ZXQ2AH 45mm Automatic Metallographic Specimen Mounting Press Water-cooled Inlay MachineUS$ 11196.64 - 12596.22MOQ: 1 Set -
HST-ZXQ4 Automatic Metallographic Specimen Mounting Press Multifunctional Water-cooled Inlay MachineUS$ 17634.71 - 19034.29MOQ: 1 Set
-
MoPao160 300 OR 600r/min Specimen Grinding Polishing MachineNegotiableMOQ: 1
-
Q-100B Automatic Specimen Cutting MachineNegotiableMOQ: 1
-
HST MP-1T Touch Screen Metallographic Grinding Polishing MachineNegotiableMOQ: 1
Accuracy Class
High Accuracy
Accuracy
Grade1
brand name
HST
place of origin
Shandong, China
Application
Laboratory Testing, Lab Testing, Auto Testing, grinding and polishing
customized support
OEM, ODM
power
1650W
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Automatic Metallographic Specimen Mounting Press
Model
HST-ZXQ4
Power supply
220V 50HZ
The Sample Diameter
25,30,40,50mm
Heating temperature range
35-200℃
Hold Time
1~99 min
Automatic cooling time
0~60 min
Net weight
83kg
Dimension
625*583*565mm
HST-ZXQ4 mounting machine is used to mount metallographic
Products Description
Application：
The HST-ZXQ4 mounting machine is used to mount metallographic and petrographic samples that are tiny,
difficult to hold or irregular before grinding and polishing.
Features：
* After being mounted in this machine, it is convenient to grind and polish the sample, which is helpful for
viewing the material structure of the sample under a metallographic microscope; and testing the hardness of
the sample on a hardness tester.
* The inlay material of this machine is limited to thermoset materials. The pressing temperature of different
thermoset materials can be adjusted and customized according to the material.
* This machine can automatically heat and pressurize. After pressing and forming, it will cool down and stop
automatically. Open the upper cover and press the up button. The sample will automatically rise and you can
* This machine is a multifunctional water-cooled inlay machine for inlaying various samples. It has the
advantages of large number of molds and short mold making time.
The HST-ZXQ4 mounting machine is used to mount metallographic and petrographic samples that are tiny,
difficult to hold or irregular before grinding and polishing.
Features：
* After being mounted in this machine, it is convenient to grind and polish the sample, which is helpful for
viewing the material structure of the sample under a metallographic microscope; and testing the hardness of
the sample on a hardness tester.
* The inlay material of this machine is limited to thermoset materials. The pressing temperature of different
thermoset materials can be adjusted and customized according to the material.
* This machine can automatically heat and pressurize. After pressing and forming, it will cool down and stop
automatically. Open the upper cover and press the up button. The sample will automatically rise and you can
take out the parts.
* This machine is a multifunctional water-cooled inlay machine for inlaying various samples. It has the
advantages of large number of molds and short mold making time.
Model |
HST-ZXQ4 |
Type |
mounting machine is used to mount metallographic |
Grinding Disc Diameter |
Φ25,Φ30,Φ40,Φ50mm |
Heating temperature range |
35-200℃ |
Hold Time |
1~99 min |
Direction |
Clockwise/counterclockwise |
Automatic cooling time |
0~60 min |
Cooling method |
Water cooling |
Maximum Consumption |
1650W |
Dimensions |
625*583*565mm |
Package Size |
915*710*797mm |
net weight |
82.3kg |
Gross Weight |
103.5kg |
power supply |
220V, 50HZ |
