Home > Instruments & Meters > Test Instrument > Test Machine > Q-100B Automatic Specimen Cutting Machine

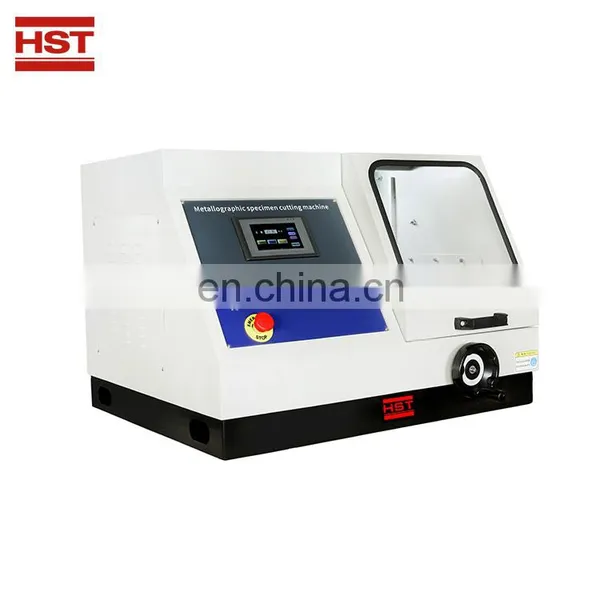

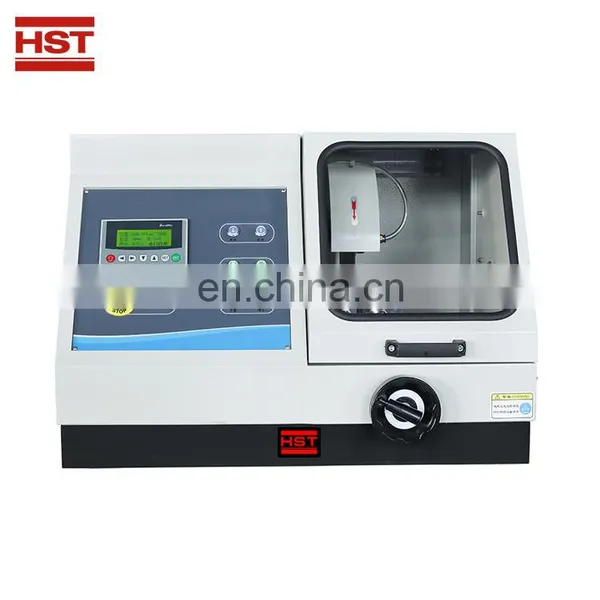

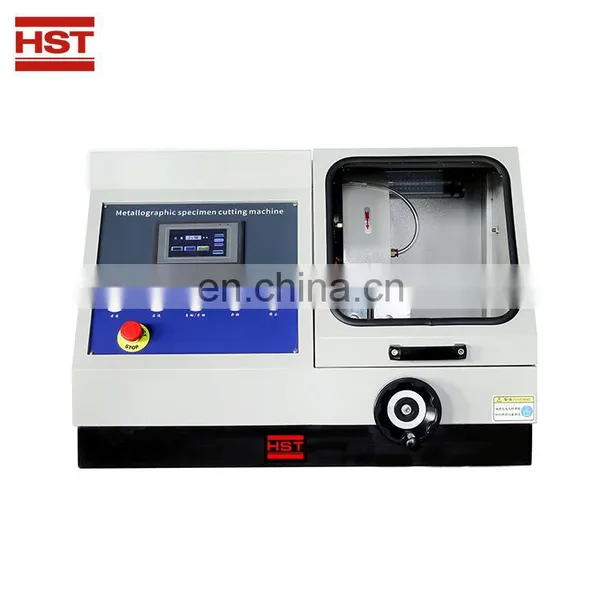

Q-100B Automatic Specimen Cutting Machine

Q-100B Automatic Specimen Cutting Machine thumbnail-3

Q-100B Automatic Specimen Cutting Machine thumbnail-4

Q-100B Automatic Specimen Cutting Machine thumbnail-5

Q-100B Automatic Specimen Cutting Machine photo-1

Q-100B Automatic Specimen Cutting Machine photo-2

Q-100B Automatic Specimen Cutting Machine photo-3

Q-100B Automatic Specimen Cutting Machine photo-4

Q-100B Automatic Specimen Cutting Machine photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2009

Factory Size:

1,000-3,000 square meters

Contact Supplier Request Quote Chat Now

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

ISO machine Q-100B cutting mahcine specimen cutter

1. Application:

Model Q-80Z manual / automatic metallographic specimen cutting machine is equipped with big cutting room and movable T-shape work table. Therefore this machine has the ability of cutting rectangle and large specimens. Also the equipped separate type vice is very convenient for operator to clamp various heterotypic work pieces. Various cutting data can be displayed on high definition backlight type LCD screen. Manual cutting and automatic cutting means can be switched at will. Large cutting chamber, tempered glass observing window and it is equipped with 60L cooling liquid water tank. Non-burning loss swing type cutting means which improved the cutting quality Automatic withdraw function after cutting is finished, bidirectional feeding means increase the length of deep cutting.

2. Main specifications:

Model	Q-100Z/ Q-100B	Q-80Z
Display	LCD with high resolution back lit dot matrix	LCD with high resolution back lit dot matrix
cutting disc speed	2100rpm	2100rpm
Cutting diameter	100mm	80mm
max moving travel	125mm	125mm
max working table travel	275mm	275mm
Cutting disc specification	350 ×2.5 ×32mm	350 X2.5 X32mm
Motor	3.3kw	2.5KW
Feed speed	1-10mm/min	1-10mm/min
power supply	three phases, 380V, 50Hz	three phases 380V, 50Hz
Net weight	220Kg	220kg
Dimension	900 x 850 x 620mm	835 x 850 x 620mm
