Home > Instruments & Meters > Test Instrument > Test Machine > Hardness Tester Test Force (15, 30, 45kgf) Touch Screen Superficial Rockwell Hardness Tester HST-HSRS45TH Display Type

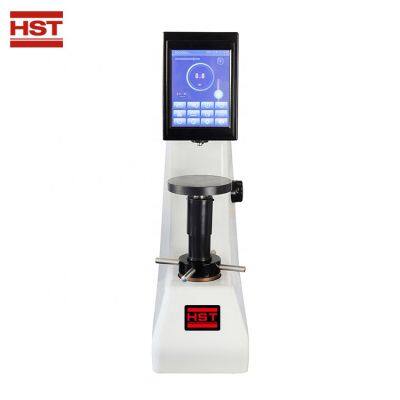

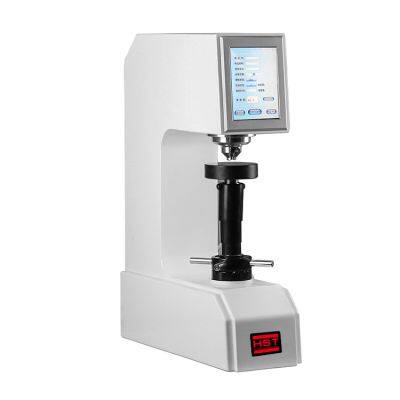

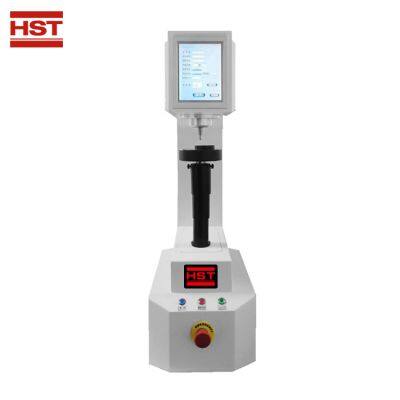

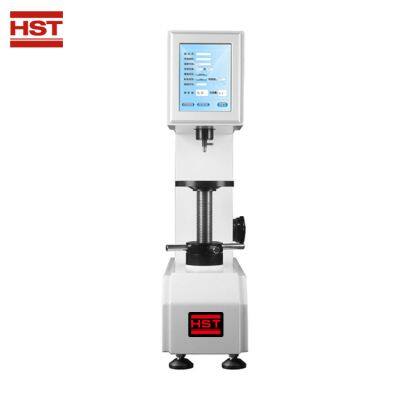

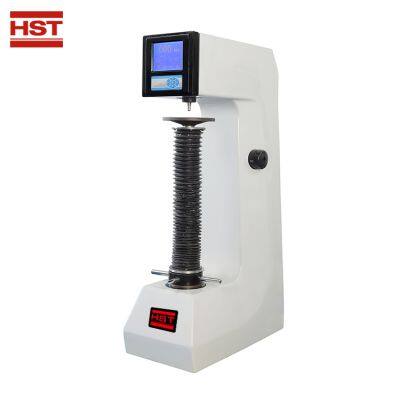

Hardness Tester Test Force (15, 30, 45kgf) Touch Screen Superficial Rockwell Hardness Tester HST-HSRS45TH Display Type
US$ 1600 - 2000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤±1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST Electric Superficial Rockwell Hardness Tester Motor-driven Type Rockwell Hardness Tester HST-HSRD45 for TestUS$ 800 - 1000MOQ: 1 Set -
HST Manual Superficial Rockwell Hardness Tester Display Manual Type Display Manual Type Rockwell Hardness Tester HST-HSR45US$ 580 - 780MOQ: 1 Set
-
HST Digital Display Manual Rockwell Hardness Tester Measuring Range 20-88HRA, 20-100HRBW, 20-70HRC HST-HR150AS for TestUS$ 550 - 800MOQ: 1 Set
-
HST Touch Screen Rockwell Hardness Tester With Printer Load Cell Loading Electronic Driven HRS150T Hardness Tester for FactoryUS$ 1250 - 1600MOQ: 1 Set
-
HST Electric Rockwell Hardness Tester Motor-driven Rockwell Hardness Tester HST-HRD150 for TestUS$ 620 - 900MOQ: 1 Set
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
,
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Touch Screen Superficial Rockwell Hardness
Model
HST-HSRS45TH
Test force application mode
Main initial test: Automatic (loading, retaining and unloading)
Measuring Range
70-94HR15N,67-93HR15TW; 42-86HR30N,29-82HR30TW; 20-77HR45N,10-72HR45TW
All Testing Force
147.1,292.4,441.3N(15,30,45kgf)
Maximum height for the specimen
210mm
Head center to machine wall distance
165mm
Hardness resolution
0.1HR
SIZE
527*242*702mm
Power supply
AC220V,50Hz
HST-HSRS45TH Touch Screen Superficial Rockwell Hardness Tester
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Applications Range :
HST-HSRS45TH The touch screen digital display surface Rockwell hardness tester is a high-tech product with high precision and stable performance. It has a menu-based interface and is simple, intuitive and convenient to operate. The measuring device uses a grating displacement sensor and an ARM32-bit chip control system. The hardness value is directly displayed on the LCD screen. It is a mechatronic hardness testing instrument.
Specifications
Item |
HST-HSRS45TH |
||
Measuring range |
70-94HR15N, 67-93HR15TW |
||
42-86HR30N, 29-82HR30TW |
|||
20-77HR45N, 10-72HR45TW |
ф1.588mm Ball indenter |
||
Test force |
147.1, 292.4, 441.3N (15, 30, 45kgf) |
||
Maximum allowable height of test piece |
210mm |
||
Distance from center of indenter to machine wall |
165mm |
||
Hardness resolution |
0.1HR |
||
Power supply |
AC 220V, 50Hz |
||
Dimensions |
527*242*702mm |
||
Weight |
80kg |
||
Power supply |
AC 220V 50/60 Hz |
||
Features:
1. The measuring device uses a grating displacement sensor, which displays the results on the LCD screen and can display and set the test scale, test force, indenter type, holding time, conversion unit, etc.;
2. The body is cast in one piece using high-quality cast iron, and is treated with automotive paint, with a round and beautiful appearance;
3. Convenient control system, which can automatically convert the units of the full hardness scale;
4. The built-in test software can correct the machine by ±3HR;
5. The motor is used to control the loading, holding and unloading of the test force, eliminating the human operation error of the manual Rockwell hardness tester;
6. Equipped with a printer;
7. The accuracy meets the GB/T230.2-2018, ISO6508-2 and American ASTM E18-16-M standards.
2. The body is cast in one piece using high-quality cast iron, and is treated with automotive paint, with a round and beautiful appearance;
3. Convenient control system, which can automatically convert the units of the full hardness scale;
4. The built-in test software can correct the machine by ±3HR;
5. The motor is used to control the loading, holding and unloading of the test force, eliminating the human operation error of the manual Rockwell hardness tester;
6. Equipped with a printer;
7. The accuracy meets the GB/T230.2-2018, ISO6508-2 and American ASTM E18-16-M standards.
