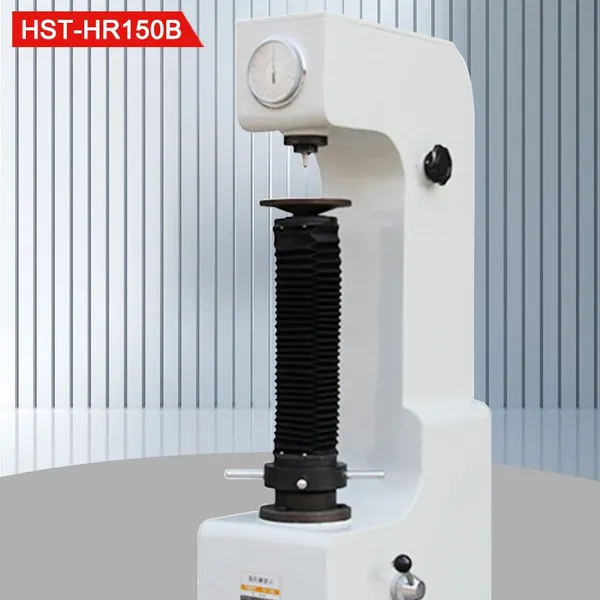

HST Manual High Stroke Rockwell Hardness Tester Dial Gauge Display Max. Test Height 400mm HST-HR150B Hardness Tester
US$ 1000 - 1200
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤±1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hardness Tester Test Force (15, 30, 45kgf) Touch Screen Superficial Rockwell Hardness Tester HST-HSRS45TH Display TypeUS$ 1600 - 2000MOQ: 1 Set -
HST Electric Superficial Rockwell Hardness Tester Motor-driven Type Rockwell Hardness Tester HST-HSRD45 for TestUS$ 800 - 1000MOQ: 1 Set
-
HST Manual Superficial Rockwell Hardness Tester Display Manual Type Display Manual Type Rockwell Hardness Tester HST-HSR45US$ 580 - 780MOQ: 1 Set
-
HST Digital Display Manual Rockwell Hardness Tester Measuring Range 20-88HRA, 20-100HRBW, 20-70HRC HST-HR150AS for TestUS$ 550 - 800MOQ: 1 Set
-
HST Touch Screen Rockwell Hardness Tester With Printer Load Cell Loading Electronic Driven HRS150T Hardness Tester for FactoryUS$ 1250 - 1600MOQ: 1 Set
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
3KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Manual High Stroke Rockwell Hardness Tester
Model
HST-HR150B
Test force
60,100,150kgf
Measuring range
20-95HRA,10-100HRBW,20-70HRC
Maximum height for the specimen
400mm
Head center to machine wall distance
160mm
Hardness resolution
0.5HR
Power supply
AC220V,50Hz
Outline dimension
548*326*1025mm
Net weight
140kg
HST-HR150B Manual High Stroke Rockwell Hardness Tester series
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Applications :
2.Specifications
HST-HR150B Manual High Stroke Rockwell hardness tester is a mechanical manual test with beautiful
appearance design, reasonable casting structure, stable performance, high durability and high precision. It is especially suitable for heat treatment and mold processing workshop. It is easy to operate and suitable for large parts. High stroke, lever loading, manual operation, this and hardness tester can measure the Rockwell hardness of hard alloy, hardened steel unhardened steel. Due to its high fuselage, it can be used for hardness testing of large workpieces, and is widely used in machining, automobile manufacturing and repairing units.
appearance design, reasonable casting structure, stable performance, high durability and high precision. It is especially suitable for heat treatment and mold processing workshop. It is easy to operate and suitable for large parts. High stroke, lever loading, manual operation, this and hardness tester can measure the Rockwell hardness of hard alloy, hardened steel unhardened steel. Due to its high fuselage, it can be used for hardness testing of large workpieces, and is widely used in machining, automobile manufacturing and repairing units.
2.Specifications
Item |
HST-HR150B |
Test force |
60、100、150kgf |
588.4、980.7、1471N |
|
Measuring range |
20-95HRA，10-100HRBW，20-70HRC； |
Maximum height is allowed for the specimen |
400mm |
Head center to machine wall distance |
160mm |
Hardness resolution |
0.5HR |
Power supply |
AC220V，50Hz |
Outline dimension |
548*326*1025mm |
Package size |
565*415*730mm |
Net weight |
140kg |
Product Features:
* Using mechanical manual testing, no power supply, a wide range of application, easy to operate
* Good economy and practicality; the dial directly read the hardness value, and optional Roche other scale, such as HRD, HRF and other hardness scale
* Using integrated casting precision hydraulic buffer, no buffer leakage, and smooth loading, no impact, adjustable speed
* The accuracy meets the GB/T230.2-2018, ISO6508-2 and US ASTM E18 standards
* Good economy and practicality; the dial directly read the hardness value, and optional Roche other scale, such as HRD, HRF and other hardness scale
* Using integrated casting precision hydraulic buffer, no buffer leakage, and smooth loading, no impact, adjustable speed
* The accuracy meets the GB/T230.2-2018, ISO6508-2 and US ASTM E18 standards
