Home > Instruments & Meters > Test Instrument > Test Machine > Online Brinell Hardness Tester Online Automatic Hardness Testing Machine for Gas Cylinders HST-HBMT-365 Type
Online Brinell Hardness Tester Online Automatic Hardness Testing Machine for Gas Cylinders HST-HBMT-365 Type
US$ 68000 - 72000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Turret Small Load Brinell Hardness Tester High Quality HST-HBS62.5TZDX Small Load Brinell Hardness TesterUS$ 4400 - 5100MOQ: 1 Set -
Automatic Turret Small Load Brinell Hardness Tester High Quality HST-HBS62.5ZT Small Load Brinell Hardness TesterUS$ 2700 - 3200MOQ: 1 Set
-
Hydraulic Brinell Hardness Tester With Measuring System High Quality HST-PHB3000 Brinell Hardness TesterUS$ 3500 - 4500MOQ: 1 Set
-
Rockwell Superficial Rockwell Hardness Tester HST-HRS-150/45TN-M Rockwell Hardness Tester Hardness TesterUS$ 6200 - 7200MOQ: 1 Set
-
Digital Fruit Hardness Tester Rockwell Hardness Tester HST-HR150/45 Manual Rockwell Superficial Rockwell Hardness TesterUS$ 1100 - 1300MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V, 380 V
warranty
1 Year
Product name
Online Brinell Hardness Tester
Model
HST-HBMT-365
Testing power
250, 500, 750 kgf
Force holding time
1~99 s (adjustable)
Hardness resolution
0.1HR
Hydraulic station cooling
Air-cooled
Cylinder specifications
Diameter 219~365 mm, length 700~2000 mm
Hardness value display mode
Automatic hardness value display and computer recording
Power supply
220V/380V, 50 Hz
Dimensions
Approx 2415 *1520* 2040 mm
HST-HBMT-365 type
Online Brinell Hardness Tester for Gas Cylinders
(Online Automatic Hardness Testing Machine for Gas Cylinders)
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Product Introduction :
This technical proposal is based on our company's years of research into online hardness testing technology for gas cylinders and the accumulated experience from delivering numerous online hardness testing devices to domestic and international customers. It is designed in accordance with the basic requirements of gas cylinder production lines, following extensive market research and industry exchanges. Given the differences in your production site, detailed technical discussions are necessary to ensure clear and precise technical specifications, smooth production testing lines, and consistent workflow rhythms
2.Standards:
The Online Brinell Hardness Tester is designed in compliance with the Brinell Hardness Test Method, meeting the requirements of GB/T 231.1-2018 and GB/T 231.2-2012.The equipment complies with GB/T 5099-2017, GB/T 11640-2021, ISO 9809, TSG 07-2019 (Special Equipment Production and Filling Licensing Rules), and TSG 23-2021 (Gas Cylinder Safety

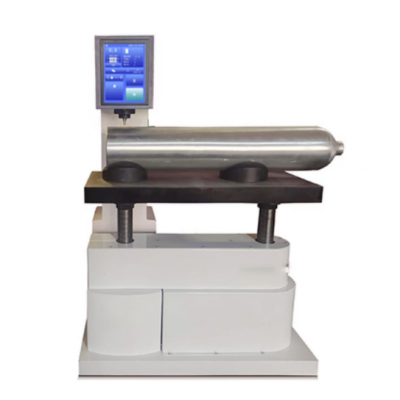

It is suitable for online hardness testing of gas cylinders, specifically for Brinell hardness testing of cylinder bodies after heat treatment.
3.Specifications
3.Specifications
MODEL |
HST-HBS-3000ZDV |
||
Brinell hardness scale |
HBW5/250, HBW10/500, HBW5/750 |
||
Test force (Kgf) |
250, 500, 750 kgf |
||
Hardness range |
15.9–500 HBW |
||
Indenter diameter |
Tungsten carbide balls: 5 mm, 10 mm |
||
Single-point testing cycle |
≤90 seconds on average |
||
Load retention period |
0～99S(adjustable) |
||
Cylinder specifications |
Diameter 219–365 mm, length 700–2000 mm (straight section) |
||
Display |
Automatic hardness value display and computer recording |
||
Hydraulic station cooling |
Air-cooled |
||
Size |
Approx. 2415 × 1520 × 2040 mm |
||
Weight |
110kg |
||
Power supply |
220V/380V, 50 Hz |
||
Software technical parameters: |
|||
OS |
Windows |
||
Interface |
User-friendly, ergonomic design. |
||
Reports |
Predefined formats. |
||
Data storage |
Database format. |
||
Capacity of sample box |
Chinese/English (Optional) |
||
4. Operating Environment.
4.1.Temperature: -5 to 40°C
4.2.Humidity: ≤60%
4.3.Avoid: Vibrations and metal dust during operation.
4.2.Humidity: ≤60%
4.3.Avoid: Vibrations and metal dust during operation.
