Home > Instruments & Meters > Test Instrument > Test Machine > Rockwell Superficial Rockwell Hardness Tester HST-HRS-150/45TN-M Rockwell Hardness Tester Hardness Tester

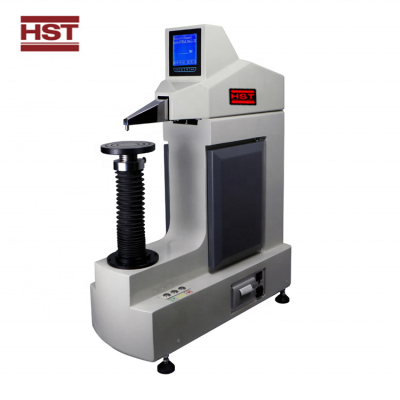

Rockwell Superficial Rockwell Hardness Tester HST-HRS-150/45TN-M Rockwell Hardness Tester Hardness Tester
US$ 6200 - 7200
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Display:
High definition backlight LCD
Accuracy:
≤±1%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Fruit Hardness Tester Rockwell Hardness Tester HST-HR150/45 Manual Rockwell Superficial Rockwell Hardness TesterUS$ 1100 - 1300MOQ: 1 Set -
Portable Hardness Tester Hardness Tester HST-HRS-150/45T-Z Z-Axis Automatic Rockwell Superficial Rockwell HardnessUS$ 3700 - 4200MOQ: 1 Set
-
Tablet Hardness Tester Rockwell Hardness Tester Hrc HST-HRS150/45T Rockwell Superficial Touch Screen Display TypeUS$ 2200 - 2500MOQ: 1 Set
-
Surface Hardness Tester Leeb Hardness Tester HST-XHRD150 Electric Plastic Rockwell Hardness Test Rockwell Hardness TesterUS$ 800 - 1000MOQ: 1 Set
-
HST Manual Plastic Rockwell Hardness Tester Manual Dial Display Type HST-XHR150 Plastic Rockwell Hardness TesterUS$ 650 - 880MOQ: 1 Set
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
,
Protection Class
IP65
Voltage
220 V, 110 V
warranty
1 Year
Product name
Superficial Rockwell hardness tester
Model
HST-HRS-150/45TN-M
Load dwell duration
2~50s, can be set and stored
All Testing Force
15kgf , 30kgf , 45kgf ,60kgf , 100kgf ,150kgf
Maximum height for the specimen
300mm
Head center to machine wall distance
220mm
Hardness resolution
0.1HR
Operation
Menu selectable, Membrane keypad
Power supply
AC, 220V/ 110V, 50~60Hz, 4A
HST-HRS-150/45TN-M Rockwell, Superficial Rockwell Hardness Tester
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Product Features:
-The test force are applied via a closed-loop control unit with a load cell, a DC motor and an electronic
measurement and control unit replace traditional dead weights. The result is highly accurate measurements
at all test loads up to 0.5%.
-Simple plug - and - play tech allows for much more quick and easy installation than traditional weights type
machine.
-Automated Z-Axis. Just press START key once, entire test process will be finished automatically. Regardless
of the the size of the sample, the position of the sample, the distance between the indenter and sample
surface. The sample will be auto-lifted to approach the indenter and finishing testing automatically.
-Higher precision than handle wheel lifting/dead weights type machines which can be affected by user
interaction.
-Extended dolphin nose allows vertical test height of 300mm and throat depth of 220mm.
-Integrated casting body with more wide basement leads to permanent stability.
-Built in micro-printer and USB port to PC
measurement and control unit replace traditional dead weights. The result is highly accurate measurements
at all test loads up to 0.5%.
-Simple plug - and - play tech allows for much more quick and easy installation than traditional weights type
machine.
-Automated Z-Axis. Just press START key once, entire test process will be finished automatically. Regardless
of the the size of the sample, the position of the sample, the distance between the indenter and sample
surface. The sample will be auto-lifted to approach the indenter and finishing testing automatically.
-Higher precision than handle wheel lifting/dead weights type machines which can be affected by user
interaction.
-Extended dolphin nose allows vertical test height of 300mm and throat depth of 220mm.
-Integrated casting body with more wide basement leads to permanent stability.
-Built in micro-printer and USB port to PC
Specifications
Item |
HST-HRS-150/45TN-M |
|
Preload |
29.4N (3kgf) , 98. 1N ( 10kgf) |
|
Total test force |
147. 1N( 15kgf), 294.3N(30kgf), 441.3N(45kgf), 588.4N (60kgf), 980.7N ( 100kgf), 1471N( 150kgf) |
|
Load dwell duration |
2~50s, can be set and stored |
|
Display |
High definition backlight LCD |
|
Operation |
Menu selectable, Membrane keypad Upper/lower limits setting & alarming |
|
Hardness resolution |
0.1HR |
|
Data statistics |
Avg., Max., Min., S, R |
|
Scales |
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W,HR30W,HR45W, HR15X,HR30X, HR45X, HR15Y, HR30Y, HR45Y HRA ，HRB ，HRC ，HRD ，HRE，HRF, HRG ，HRH ，HRK ，HRL ，HRM ， HRP, HRR ，HRS ，HRV |
|
Curved surface auto correction |
||
Memory |
Max 400 items of test results stored automatically |
|
Testing Capacity |
300mm (vertical), 220mm (horizontal) |
|
Power supply |
AC, 220V/ 110V, 50~60Hz, 4A |
|
Dimensions |
690mm×280mm×860mm |
|
Weight |
net weight about 86KG, gross weight about 120KG |
Product Functions:
-Twin tester--Regular Rockwell & Rockwell Superficial hardness for metal and plastic material.
-Horizontal dolphin nose Indenter is suitable also for internal and external testing.
-Testing on Surfaces difficult to reach. Testing internal surface of rings and tubes.
-Provided with many features such as high measuring precision, wide measuring range with 30 Rockwell
scales.
-The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal.
-Automatic testing cycle: Lifting of part, pre-loading, loading, dwell, unloading, results will be finished
automatically.
-Measuring results digitally displaying and can be printed, or transmitted to external computer automatically
by USB port. Test HR value can be converted to the value of HB, HV, HK and σb value.
-The tester meets all the following standard such as ISO 6508-2, ASTM E18
-Horizontal dolphin nose Indenter is suitable also for internal and external testing.
-Testing on Surfaces difficult to reach. Testing internal surface of rings and tubes.
-Provided with many features such as high measuring precision, wide measuring range with 30 Rockwell
scales.
-The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal.
-Automatic testing cycle: Lifting of part, pre-loading, loading, dwell, unloading, results will be finished
automatically.
-Measuring results digitally displaying and can be printed, or transmitted to external computer automatically
by USB port. Test HR value can be converted to the value of HB, HV, HK and σb value.
-The tester meets all the following standard such as ISO 6508-2, ASTM E18
