Home > Instruments & Meters > Test Instrument > Test Machine > Hydraulic Brinell Hardness Tester With Measuring System High Quality HST-PHB3000 Brinell Hardness Tester

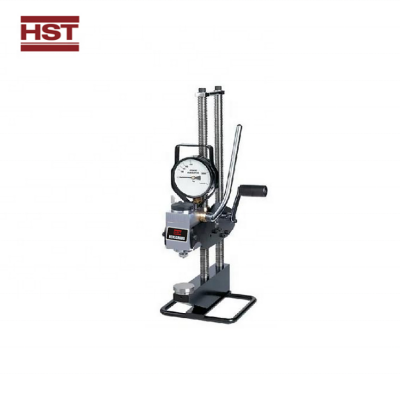

Hydraulic Brinell Hardness Tester With Measuring System High Quality HST-PHB3000 Brinell Hardness Tester
US$ 3500 - 4500
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤±1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rockwell Superficial Rockwell Hardness Tester HST-HRS-150/45TN-M Rockwell Hardness Tester Hardness TesterUS$ 6200 - 7200MOQ: 1 Set -
Digital Fruit Hardness Tester Rockwell Hardness Tester HST-HR150/45 Manual Rockwell Superficial Rockwell Hardness TesterUS$ 1100 - 1300MOQ: 1 Set
-
Portable Hardness Tester Hardness Tester HST-HRS-150/45T-Z Z-Axis Automatic Rockwell Superficial Rockwell HardnessUS$ 3700 - 4200MOQ: 1 Set
-
Tablet Hardness Tester Rockwell Hardness Tester Hrc HST-HRS150/45T Rockwell Superficial Touch Screen Display TypeUS$ 2200 - 2500MOQ: 1 Set
-
Surface Hardness Tester Leeb Hardness Tester HST-XHRD150 Electric Plastic Rockwell Hardness Test Rockwell Hardness TesterUS$ 800 - 1000MOQ: 1 Set
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Hydraulic Brinell Hardness Tester
Model
HST-PHB3000
Test force
3000kg (1000kg, 750kg, 500kg optional)
Indenter
10mm carbide ball (5mm optional)
Test range
32~650HBW
Opening size
350mm high * 100mm throat depth
Indication error
Comply with GB, ISO, ASTM and other relevant standards
Indication repeatability
Comply with GB, ISO, ASTM and other relevant standards
Test force error
≤1%, in line with GB, ISO, ASTM and other relevant standards
weight
13.8kg
HST-PHB3000 Hydraulic Brinell Hardness Tester with Measuring System
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Applications :
★ Used for on-site testing of steel, non-ferrous metals, castings, forgings and semi-finished heat-treated parts.
★ It can be used for various large parts that cannot be tested by desktop machines, and can replace Leeb hardness testers with low accuracy and reliability in a wide range of manufacturing industries.
★ The measured Brinell hardness indentation can be used to directly read the hardness value using the Brinell indentation automatic measurement system.
★ It can be used for various large parts that cannot be tested by desktop machines, and can replace Leeb hardness testers with low accuracy and reliability in a wide range of manufacturing industries.
★ The measured Brinell hardness indentation can be used to directly read the hardness value using the Brinell indentation automatic measurement system.
Principle
2.Technical Parameters:
Using the hydraulic principle, manual operation generates a 3000kg test force. The core component is a small hydraulic system with a control valve in the hydraulic system to control the test force. Whenever the test force reaches 3000kg, the control valve opens and the pressure drops. According to the American standard ASTM E110, the force should be repeated 3 to 4 times to allow the pressure gauge pointer to reach 3000kg 3 to 4 times, which is equivalent to the Brinell hardness test method for 3000kg test force, 10mm ball, and 10 to 15 seconds.
2.Technical Parameters:
Model |
HST-PHB3000 |
Test force |
3000kg (1000kg, 750kg, 500kg optional) |
Indenter |
10mm carbide ball (5mm optional) |
Test range |
32~650HBW |
Opening size |
350mm high × 100mm throat depth |
Indication error |
Comply with GB, ISO, ASTM and other relevant standards |
Indication repeatability |
Comply with GB, ISO, ASTM and other relevant standards |
Test force error |
≤1%, in line with GB, ISO, ASTM and other relevant standards |
Weight |
13.8kg |
Instrument features：
Instrument features
★ On-site testing It can be used in the workshop, with simple operation and easy to carry. It can test the hardness of large partson-site and can be used for piece-by-piece testing.
★ Permanent indentation It uses a 3000kg test force and a 10mm ball. The permanent indentation can be used for re-inspection.
★ High reliability It is tested in full accordance with the Brinell hardness test principle, which is the same as the principle ofthe desktop Brinell hardness tester, and can truly reflect the mechanical properties of materials or parts.
★ High precision The test force accuracy complies with the provisions of relevant standards such as GB, ISO, ASTM, etc., and the hardness test accuracy is the same as that of a desktop machine.
★ Wide application As long as the instrument can be clamped, parts of any shape and size can be tested.
★ Wide range A variety of test forces and ball indenters can be selected, with a wide range, and various common metal materials can be tested.
★ On-site testing It can be used in the workshop, with simple operation and easy to carry. It can test the hardness of large partson-site and can be used for piece-by-piece testing.
★ Permanent indentation It uses a 3000kg test force and a 10mm ball. The permanent indentation can be used for re-inspection.
★ High reliability It is tested in full accordance with the Brinell hardness test principle, which is the same as the principle ofthe desktop Brinell hardness tester, and can truly reflect the mechanical properties of materials or parts.
★ High precision The test force accuracy complies with the provisions of relevant standards such as GB, ISO, ASTM, etc., and the hardness test accuracy is the same as that of a desktop machine.
★ Wide application As long as the instrument can be clamped, parts of any shape and size can be tested.
★ Wide range A variety of test forces and ball indenters can be selected, with a wide range, and various common metal materials can be tested.
Optical measurement system for Brinell indentation
Features:
* Existing Brinell hardness testers almost all use traditional mechanical reading microscopes to measure the Brinell
indentation. The reading microscope has high requirements on the operator's visual reading skills. The reading process is easily affected by environmental factors, resulting in reading errors. After reading the indentation diameter, the indentation value needs to be recorded manually. After at least two measurements to obtain the average value, the hardness comparison table is manually checked to find the corresponding Brinell hardness value.
* Brinell hardness indentation measurement system BrinScan is an automated Brinell hardness indentation optical measurement system developed based on the Windows operating system. It can be used with any Brinell hardness tester on the market to replace the traditional mechanical reading microscope and automatically measure the Brinell hardness value of the sample.
* The Brinell hardness indentation measurement system BrinScan uses advanced machine vision technology. It uses a portable digital microscope to capture the indentation left by the sample after the Brinell hardness tester loads the test force. It can accurately distinguish the indentation image in a complex background and measure the Brinell hardness value of the sample. During the measurement process, there is no need to manually determine the edge of the indentation, record the indentation length data manually, or look up the hardness comparison table manually. It can automatically measure, record, save, and generate hardness test charts.
* The Brinell hardness indentation measurement system professional testers use a mechanical reading microscope to manually measure the hardness process in about 2 minutes each time. Multiple transmission errors will occur during the measurement process, and the measurement efficiency is very low. With the BrinScan Brinell hardness indentation measurement system, no professional technicians are required. From the chairman of the company to the general worker who has just joined the company, everyone can easily measure the indentation accurately within 1 second.
