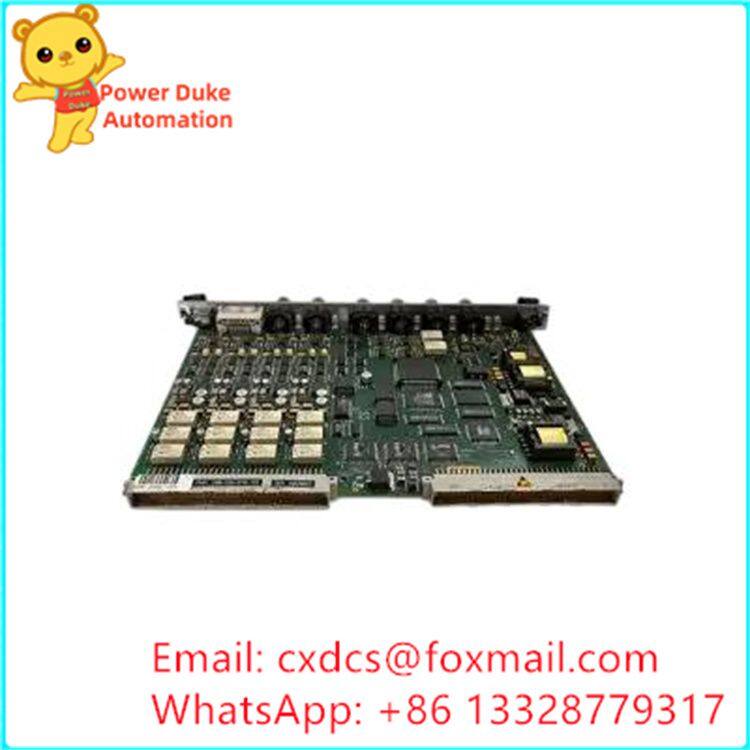

Help CenterVibro-meter 200-510-070-113 200-510-111-034 VM600 MPC4 Machinery Protection Card
Related Products
-
VIBRO-METER VM600 200-582-915-032 Input/output Module Ability to Handle Many Different InputsUS$ 1000MOQ: 1 Unit -
VIBRO-METER VM600 CPUM 200-595-067-114 Central Processing UnitUS$ 1000MOQ: 1 Unit
-
TRICONEX 3009X MP Enhanced Master Processor (UMP) ModuleUS$ 1000MOQ: 1 Unit
-
Triconex 3503E TMR Digital Input ModuleUS$ 1000MOQ: 1 Unit
-
Triconex 3720 TMR Digital Input ModuleUS$ 1000MOQ: 1 Unit
Technical Specifications
| Brand / Model | VIBRO-METER VM600 MPC4 (PNR 200-510-070-113) |
| HS Code | 903180 (Measuring/monitoring instruments, vibration/condition) |
| Power Requirements | Powered via VM600 rack backplane (no external supply on the card) |
| Operating Temperature | Typically 0 to +55°C when installed in a ventilated control cabinet (follow VM600 environmental limits) |
| Signal Inputs | Up to 4 dynamic channels (vibration/displacement). Works with proximity probes, velocity, and accelerometer‑type transducers used in VM600 systems. Phase/speed reference supported within the rack configuration. |
| Signal Outputs | Via IOC4T/IOC4S: 4–20 mA per channel, buffered outputs for each channel, relay contacts for Alert/Danger and trip logic. |
| Communication Interfaces | Handled at VM600 rack level (e.g., Modbus and Ethernet via rack interface modules); the MPC4 itself relies on the rack’s communication modules. |
| Installation Method | Plug‑in card for VM600 19" rack (uses one module slot). Pair with IOC4T/IOC4S in adjacent slot. |
| Typical Compliance | Used in API 670‑compliant systems; CE/RoHS typically applicable for VM600 family |
I. Core Functions
High-speed data processing capability: It has high-speed data processing capability with a maximum sampling rate of up to 51.2kHz, which can quickly conduct real-time analysis of the collected vibration data. When the equipment operating status changes rapidly, such as during start-up, shutdown, or sudden load changes, it can timely capture the dynamic changes of vibration signals, providing timely and accurate data support for the safe start-up/shutdown of equipment and adjustment of operating status. For example, during the start-up of a fan, through rapid analysis of vibration data, it can be judged whether the fan has abnormal vibration, ensuring the smooth progress of the start-up process.
Vibro-meter 200-510-070-113 200-510-111-034 VM600 MPC4 is a powerful and advanced component of a vibration monitoring and analysis system. In the industrial field, it plays a crucial role in ensuring the stable operation of key mechanical equipment. With its precise data collection and processing capabilities, reliable system performance, and wide applicability, it has become a valuable assistant for equipment condition monitoring in numerous industries.
