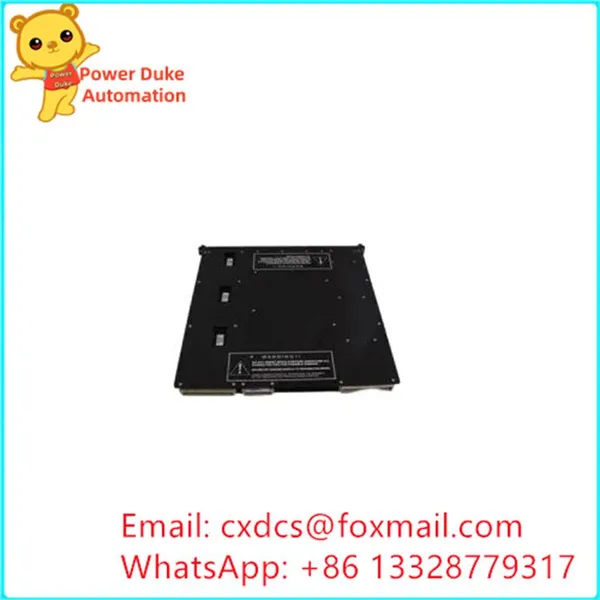

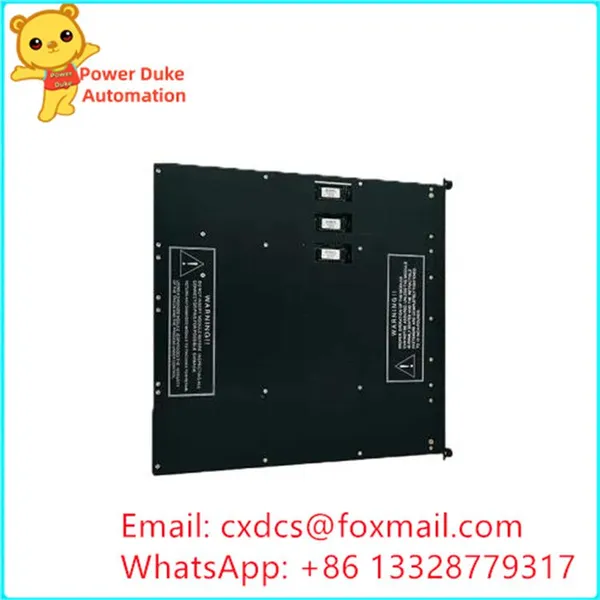

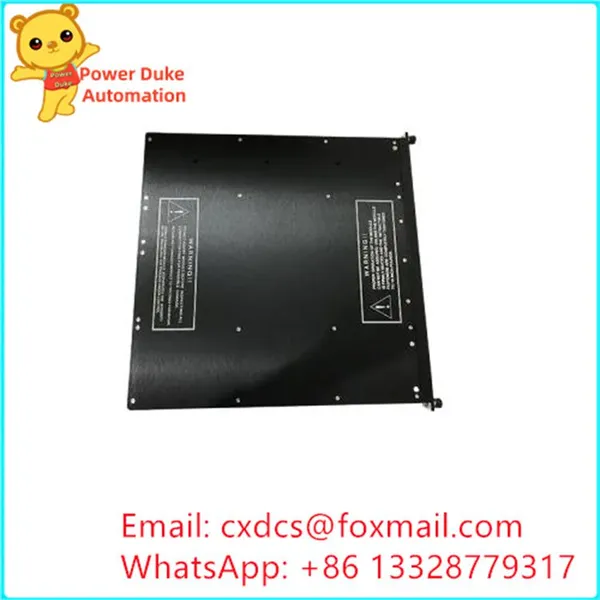

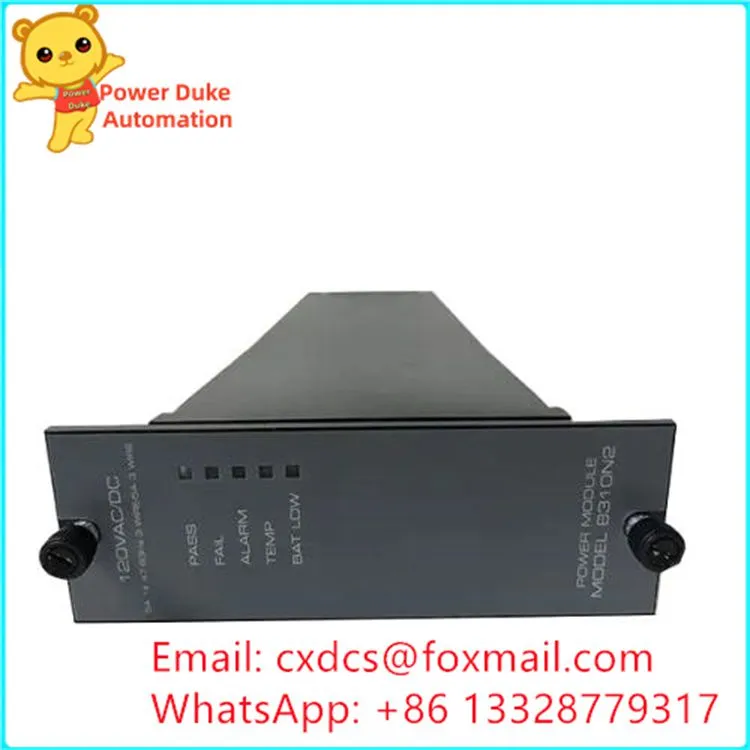

8310 Triconex Power Supply is a high-density power module produced by the Triconex brand under Honeywell. It is specifically designed for the Triconex Safety Instrumented System (SIS), providing stable and reliable power support. It features high reliability, modular design, overcurrent protection, and fault indication, and is widely used in industries such as petrochemical and power. Here is a detailed introduction:
I. Core Functions and Roles
Power Supply
Provides stable AC/DC power for the processors, I/O modules, and other critical components in the Triconex SIS system, ensuring the continuous and stable operation of the system in complex industrial environments.
High-density Design
Achieves high power output within limited space, meeting the requirements of compact system layouts, and suitable for industrial scenarios with limited space.
Modular and Redundant Configuration
Modular Design: Supports rapid installation, maintenance, and replacement, reducing the risk of downtime.
Redundancy Support: Can be combined with other power modules (such as 8311, 8312) to form a dual-redundant system, enhancing power supply reliability.
Key technical parameters
Input/output specifications
Input voltage: Supports 120VAC or 24VDC (specific models may vary).
Output voltage: Typically 24VDC, with an output current of up to 10A and a power output of 240W (for the 8312 model).
Frequency range: 47-63Hz, suitable for different grid standards. Protection mechanism
Overcurrent Protection: Built-in overcurrent detection and cut-off function to prevent equipment damage.
Overtemperature Protection: Monitors abnormal temperature to avoid faults caused by overheating.
Voltage Monitoring: Real-time checks whether the output voltage is within the safe range.
Environmental Adaptability
Operating Temperature Range: Designed to meet industrial environment requirements (specific range needs to be referred to the model manual).
Anti-interference Capability: Through electromagnetic compatibility design, reduces the impact of external interference on the stability of the power supply.
