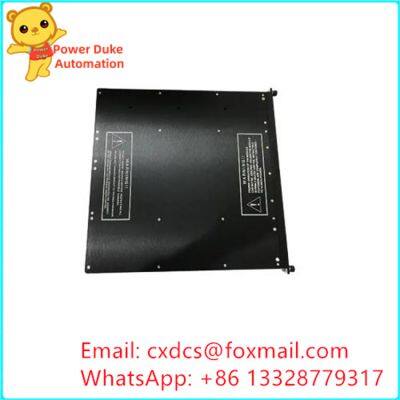

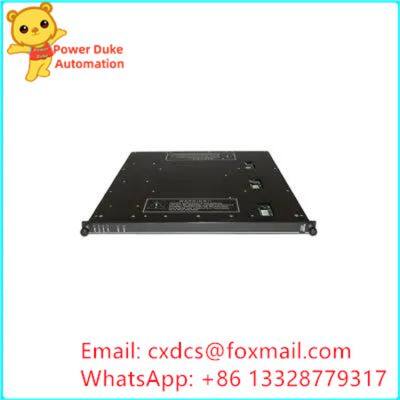

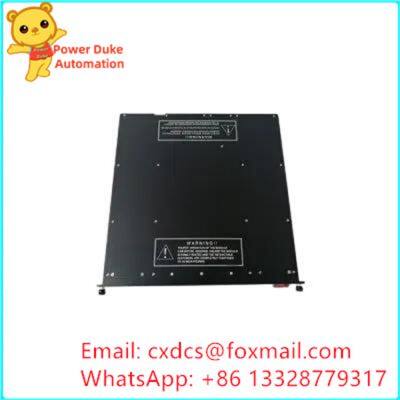

TRICONEX 3503E is a highly reliable main processor module of the Triconex series under Invensys, specifically
product description：
designed for safety instrument systems (SIS) in the industrial automation field. The following provides a detailed introduction from four aspects: core features, technical advantages, application scenarios, and safety performance:
I. Core Features
Triple Module Redundancy (TMR) Architecture
Adopts a triple redundancy design, with three independent channels operating simultaneously. Through a voting mechanism, it ensures output consistency. Even if a single channel fails, the system can still operate without interruption, with a fault coverage rate of over 99.999%.
Supports hot-swappable module replacement, allowing for maintenance without downtime, ensuring continuous production.
High-performance processing capability
Equipped with a high-performance processor and sufficient memory, capable of handling complex logic control, motion control, and process control tasks.
The scanning time is as low as 10 milliseconds, supporting high-capacity data processing of over 1 million I/O points, meeting the requirements of large-scale industrial automation.
Flexible I/O deployment
Supports centralized and distributed applications, allowing for flexible configuration of input/output modules according to on-site requirements.
Provides multiple on-site connection options to optimize system design and reduce hardware and installation costs.
Technical advantages
High availability and fault tolerance
Built-in diagnostic and redundancy management functions, real-time monitoring of system status, transparent display of faults.
Complies with IEC 61508 SIL3 certification, ensuring that the safety integrity level (SIL3) can still be maintained under fault conditions.
High-speed communication and integration capabilities
Supports peer-to-peer communication with up to 254 nodes, seamless integration with DCS, PLC, etc. systems.
Provides universal I/O modules, each point can be independently configured, simplifying system expansion.
Simplifies maintenance and upgrades
Modular design, supports online modification and configuration, parameter adjustments can be completed without downtime.
Provides TriStation™ software tool suite, covering every step of the safety lifecycle, reducing maintenance costs.
Safety performance
Multiple protection mechanisms
Equipped with protection functions such as overcurrent, overvoltage, undervoltage, overfrequency, and underfrequency, which monitor abnormal conditions of the power system in real time.
Through hardware and software redundancy design, eliminate the risk of single-point failure. Cybersecurity protection
Support access control policies to restrict unauthorized access and reduce the risk of network attacks.
Provide network segmentation functionality to prevent attacks from spreading throughout the system.
Compliance and Certification
Comply with international security standards (such as IEC 61508, ISA 84.00.01), and meet global market access requirements.
Certified by third-party institutions such as TÜV and Exida to ensure safety and reliability.
☣ Free Online Quotes
Sales Manager: Anne
WeChat: 13328779317
WhatsApp: +86 13328779317
Email: cxdcs@foxmail.com
Website:
Website:
Specifications include:
Input voltage :24V DC
Operating temperature :-40℃~ 70℃
Ethernet connections support multiple communication protocols
The characteristics of the communication module are as follows:
1. Fast and stable data transmission: The module adopts high-speed data transmission technology, which can achieve fast and stable data transmission to meet the needs of real-time control and monitoring.
2. Two-way communication function: The module supports two-way communication, which can realize data exchange and control between devices, and improve the flexibility and reliability of the system.
3. Multiple communication protocols support: The module supports a variety of communication protocols, such as Modbus, Profibus, etc., which is convenient for users to integrate and expand the system.
4. Easy configuration and control: The module provides a simple configuration and control interface, which is convenient for users to configure, monitor and maintain the system.
5. Reliability: The module uses high-quality electronic components and materials, through strict quality control and testing, with high reliability and stability.
In summary, the 3009X TRICONEX TCM communication module is a high-performance, reliable communication module for a variety of industrial automation systems requiring high-speed data transmission, real-time control and two-way communication
One. It can improve the communication ability, data processing ability and real-time performance of the system, simplify the design and maintenance of the system, reduce the cost and improve the production efficiency.
