Type Universal Testing Machine
Platens Size Ø300 mm
Resolution 0.001 N
Model Number YES-2000
Brand Name Hensgrand
Place of Origin Shandong, China
Input Voltage 220 V
Max. load 1000-3000kN
testing class 1 class
Range of test force 4% ~100%FS
testing machine type compression testing machine
compression plate size 220*250mm
compresson space 320mm
Function Compression Strength test
Power supply 380v, 220v
piston stoke 50mm
Measuring range 4% ~100%FS

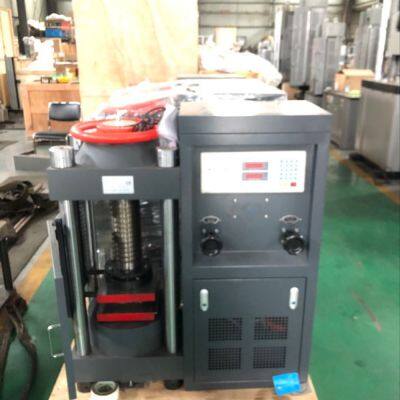

YES Digital Display Compression Testing Machine with CE Certification


Product Description

1. Application

Digital display compression testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institutionlines. The test operation and data processing meets standard requirements.



2. Main Specifications

Model

YES-1000

YES-2000

YES-2000D

YES-3000D

Max. load

1000kN

2000kN

2000kN

3000kN

Class

1 class

1 class

1 class

1 class

Testing space regulating way

Manual ball screw adjust

Electric ball screw adjust

Control way

Manual control load way

Oil source control cabinet structure form

One-piece bench oil source control cabinet

Range of test force

4% ~100%FS

Indicating value accuracy

±1%

Piston route

50mm

50mm

50mm

80mm

Max piston speed

/

/

50mm/min

80mm/min

Range between the working tables

320mm

320mm

320mm

340mm

Pressure plates size

250*250mm(Can be customized)

Display

LCD

Power supply

2.1Kw/AC380V
