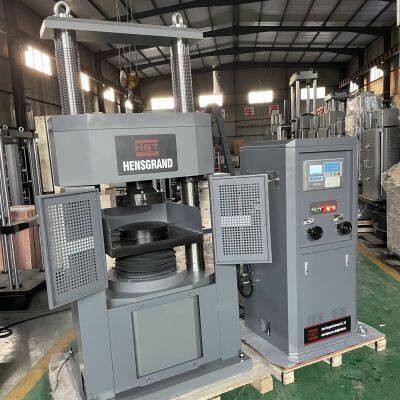

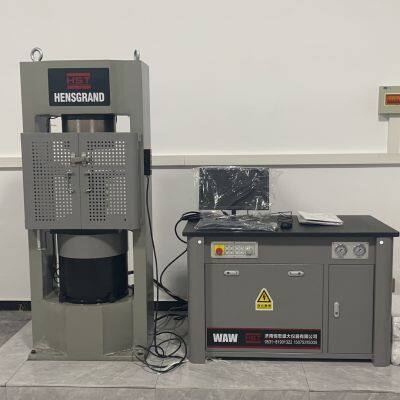

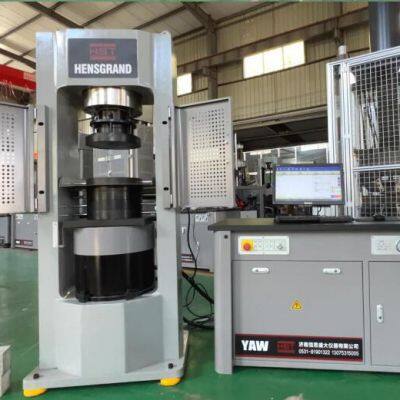

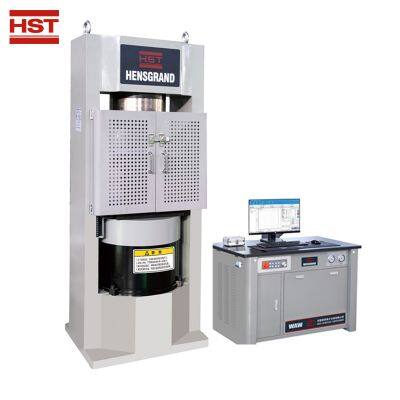

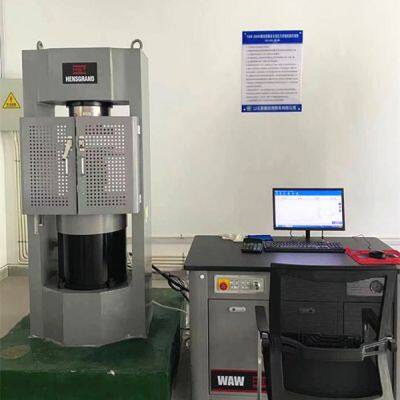

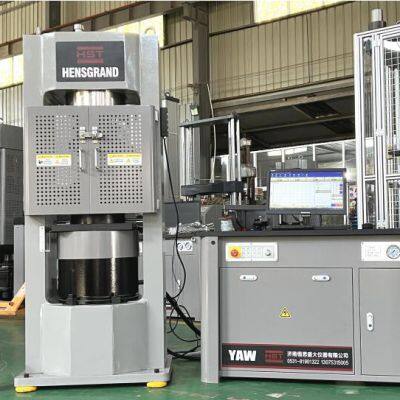

HST Laboratory Computer Control UTM Equipment 2000KN Hydraulic Concrete Pressure Brick Compression Resistance Tester
US$ 69979.00
1 - 4 Set
US$ 68579.42
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine, used concrete compression test machine
Accuracy:
1
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST 2000kN Computer Servo Control Compression Testing Machine for Concrete Cement TestUS$ 68579.42 - 69979.00MOQ: 1 Set -
YES-300 /10 Cement Brick Digital 300kn Hydraulic Compression 10KN Flexural Testing MachineUS$ 1000 - 1500MOQ: 1 Set
-
HST 3000kn 5000kn Computer Control Hydraulic Servo Motor Concrete Compression Strength Testing MachineUS$ 68579.42 - 69979.00MOQ: 1 Set
-
HST-YAW2000DH 2000kN Automatic Concrete Compression Testing Machine 200T Computer Control Compression Testing MachineUS$ 58782.36 - 65780.26MOQ: 1 Set
-
HST Computer Full Automatic Control Concrete Compression Testing Machine Hydraulic Compression Testing MachineUS$ 68579.42 - 69979.00MOQ: 1 Set
Accuracy
1
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM
power
2kw
Protection Class
IP55
Voltage
380 V
warranty
1YEAR
Max. load
2000
Test measurement range
10%-100%FS
Control way
Computer control auto loading progress
Piston stroke
60mm
Distance between upper and lower platen
320mm
Test space adjustment method
Block adjustment test space
distance ofthe right and left columns
190mm
Size of upper and lower platen
220x250mm
Power supply
Main unit AC 380V±10%,control system 220V±10%,
Product Description
1. Application
This machine is an important instrument for testing the physical properties, structural properties and internal and external defects of various concrete materials and their products. It can realize the compression type test of metal or non-metal materials, can automatically obtain the compressive strength and other performance indicators of the measured material, and can complete the closed-loop control of constant rate loading, constant rate deformation, constant rate displacement, constant rate strain, etc. .
2.Standards:
ISO 679, DIN 1164: Cement -- Test methods -- Determination of strength;
ASTM C348: Standard Test Method for Flexural Strength of Hydraulic Cement Mortars;
ASTM C349: Standard Test Method for Compressive Strength of Hydraulic-Cement Mortars (Using Portions of Prisms Broken in Flexure);
ASTM C109 / C109M: Standard Test Method for Compressive Strength of Hydraulic Cement Mortars; BS EN 196- 1: Methods of testing
cement. Determination of strength;
ASTM C880 / C880M: Standard Test Method for Flexural Strength of Dimension Stone; ASTM C170 / C170M: Standard Test Method for
Compressive Strength of Dimension Stone;
EN12390-5 BS 1881: 1 18, ASTM C78, C293, ASHTO T97: Testing hardened concrete. Flexural strength of test specimens.
This machine is an important instrument for testing the physical properties, structural properties and internal and external defects of various concrete materials and their products. It can realize the compression type test of metal or non-metal materials, can automatically obtain the compressive strength and other performance indicators of the measured material, and can complete the closed-loop control of constant rate loading, constant rate deformation, constant rate displacement, constant rate strain, etc. .
2.Standards:
ISO 679, DIN 1164: Cement -- Test methods -- Determination of strength;
ASTM C348: Standard Test Method for Flexural Strength of Hydraulic Cement Mortars;
ASTM C349: Standard Test Method for Compressive Strength of Hydraulic-Cement Mortars (Using Portions of Prisms Broken in Flexure);
ASTM C109 / C109M: Standard Test Method for Compressive Strength of Hydraulic Cement Mortars; BS EN 196- 1: Methods of testing
cement. Determination of strength;
ASTM C880 / C880M: Standard Test Method for Flexural Strength of Dimension Stone; ASTM C170 / C170M: Standard Test Method for
Compressive Strength of Dimension Stone;
EN12390-5 BS 1881: 1 18, ASTM C78, C293, ASHTO T97: Testing hardened concrete. Flexural strength of test specimens.
3.Specification:
Model | YAW-1000DH YAW-2000DH | YAW-3000DH | |
Max compression test force(kN) | 1000kN 2000kN | 3000 | |
Max bending test force(kN) | // | / | |
Test Accuracy | CLASS 1 (ISO 7500- 1) | ||
Test measurement range | 2%- 100%FS | ||
Control way | Computer control auto loading progress | ||
Frame effective span | 550MM | ||
Piston diameter | 370MM | ||
pressure plate size | 350MM | ||
Max compression space | 320mm | ||
